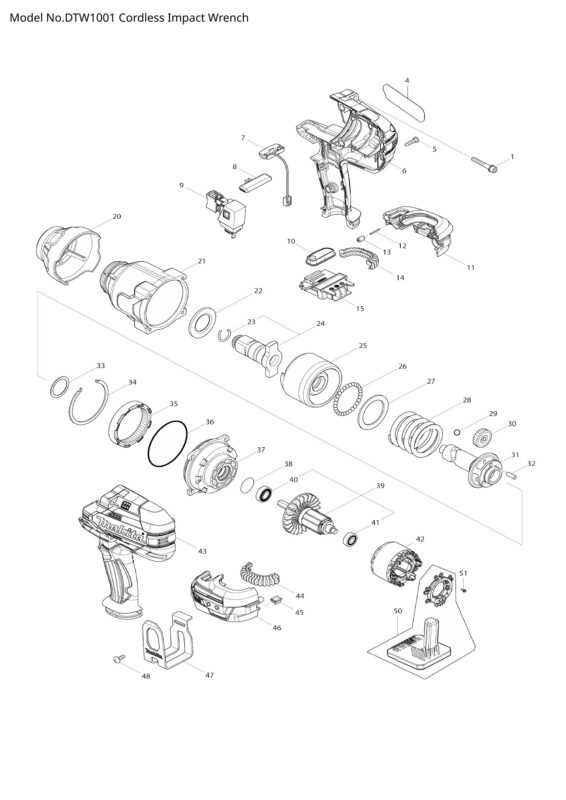

Makita DTW1001 varuosad ja varuosajoonised

Näita varuosi (59)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Hex Socket Head Bolt M5 × 35 MAKITA 251476-6	`251476-6`	Tellimisel	1.00 €	Hex Socket Head Bolt M5 × 35 MAKITA 251476-6 kogus
004	Unnamed Spare Part MAKITA 851K74-8	`851K74-8`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 851K74-8 kogus
005	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
005-1	Binding head tapping screw 4X18 MAKITA 265995-6	`265995-6`	Tellimisel	0.99 €	Binding head tapping screw 4X18 MAKITA 265995-6 kogus
006	Housing Set MAKITA 183C08-8	`183C08-8`	Tellimisel	16.42 €	Housing Set MAKITA 183C08-8 kogus
006-1	Housing Set MAKITA 183H36-3	`183H36-3`	Tellimisel	16.84 €	Housing Set MAKITA 183H36-3 kogus
007	LED Circuit MAKITA 620351-1	`620351-1`	Tellimisel	14.59 €	LED Circuit MAKITA 620351-1 kogus
008	Forward Reverse Change Lever MAKITA 456268-0	`456268-0`	Tellimisel	1.12 €	Forward Reverse Change Lever MAKITA 456268-0 kogus
009	Switch Complete MAKITA 143416-7	`143416-7`	Laos	29.05 €	Switch Complete MAKITA 143416-7 kogus
010	Switch Plate Complete MAKITA 143417-5	`143417-5`	Tellimisel	2.81 €	Switch Plate Complete MAKITA 143417-5 kogus
011	Battery Housing Set MAKITA 183C12-7	`183C12-7`	Tellimisel	16.42 €	Battery Housing Set MAKITA 183C12-7 kogus
012	Pin 1.5 MAKITA 268284-8	`268284-8`	Tellimisel	0.99 €	Pin 1.5 MAKITA 268284-8 kogus
013	Rubber Pin 5 - BTW251 MAKITA 263036-2	`263036-2`	Laos	1.68 €	Rubber Pin 5 - BTW251 MAKITA 263036-2 kogus
014	Cushion Rubber MAKITA 424773-5	`424773-5`	Laos	1.12 €	Cushion Rubber MAKITA 424773-5 kogus
014-1	Cushion Rubber MAKITA 422A56-3	`422A56-3`	Tellimisel	1.00 €	Cushion Rubber MAKITA 422A56-3 kogus
015	Terminal MAKITA 643899-6	`643899-6`	Tellimisel	3.37 €	Terminal MAKITA 643899-6 kogus
020	Bumper MAKITA 424775-1	`424775-1`	Tellimisel	4.21 €	Bumper MAKITA 424775-1 kogus
020-1	Bumper MAKITA 424978-7	`424978-7`	Tellimisel	4.36 €	Bumper MAKITA 424978-7 kogus
021	Hammer Case Assembly MAKITA 143411-7	`143411-7`	Tellimisel	38.03 €	Hammer Case Assembly MAKITA 143411-7 kogus
021-1	Hammer Case Complete MAKITA 144473-8	`144473-8`	Tellimisel	28.06 €	Hammer Case Complete MAKITA 144473-8 kogus
022	Washer 25 MAKITA 346948-5	`346948-5`	Tellimisel	1.68 €	Washer 25 MAKITA 346948-5 kogus
023	Ring Spring 16 MAKITA 231920-9	`231920-9`	Tellimisel	0.99 €	Ring Spring 16 MAKITA 231920-9 kogus
023-1	Ring Spring 16 MAKITA 232334-5	`232334-5`	Tellimisel	1.12 €	Ring Spring 16 MAKITA 232334-5 kogus
024	Toode pole süsteemis	`135716-9`	–	–	–
024-1	Anvil W Assembly MAKITA 135803-4	`135803-4`	Laos	90.50 €	Anvil W Assembly MAKITA 135803-4 kogus
025	Hammer MAKITA 326612-4	`326612-4`	Tellimisel	59.49 €	Hammer MAKITA 326612-4 kogus
026	Steel Ball 4.8 - JR300VT MAKITA 216002-8	`216002-8`	Tellimisel	0.99 €	Steel Ball 4.8 - JR300VT MAKITA 216002-8 kogus
027	Flat Washer 38 MAKITA 267493-6	`267493-6`	Tellimisel	1.26 €	Flat Washer 38 MAKITA 267493-6 kogus
028	Compression Spring 38 MAKITA 234383-8	`234383-8`	Tellimisel	10.53 €	Compression Spring 38 MAKITA 234383-8 kogus
029	Steel Ball 7.1 MAKITA 216009-4	`216009-4`	Tellimisel	0.99 €	Steel Ball 7.1 MAKITA 216009-4 kogus
030	Spur Gear 24 MAKITA 227391-6	`227391-6`	Tellimisel	2.81 €	Spur Gear 24 MAKITA 227391-6 kogus
030-1	Spur Gear 24 MAKITA 226879-3	`226879-3`	Tellimisel	16.84 €	Spur Gear 24 MAKITA 226879-3 kogus
030-2	Spur Gear 24 MAKITA 226880-8	`226880-8`	Tellimisel	2.67 €	Spur Gear 24 MAKITA 226880-8 kogus
031	Spindle MAKITA 326611-6	`326611-6`	Tellimisel	102.57 €	Spindle MAKITA 326611-6 kogus
032	Pin 5 MAKITA 268079-9	`268079-9`	Tellimisel	1.00 €	Pin 5 MAKITA 268079-9 kogus
033	Flat Washer 25 MAKITA 267494-4	`267494-4`	Tellimisel	0.99 €	Flat Washer 25 MAKITA 267494-4 kogus
033-1	Flat Washer 26 MAKITA 267127-1	`267127-1`	Tellimisel	0.99 €	Flat Washer 26 MAKITA 267127-1 kogus
034	Retainer MAKITA 346947-7	`346947-7`	Tellimisel	1.54 €	Retainer MAKITA 346947-7 kogus
035	Internal Spur Gear 54 MAKITA 227392-4	`227392-4`	Tellimisel	10.53 €	Internal Spur Gear 54 MAKITA 227392-4 kogus
036	O-Ring 67 MAKITA 213720-9	`213720-9`	Tellimisel	1.00 €	O-Ring 67 MAKITA 213720-9 kogus
037	Internal Gear Case Assembly MAKITA 135718-5	`135718-5`	Tellimisel	29.74 €	Internal Gear Case Assembly MAKITA 135718-5 kogus
038	O-ring 22 MAKITA 213961-7	`213961-7`	Tellimisel	0.99 €	O-ring 22 MAKITA 213961-7 kogus
039	Rotor Assembly MAKITA 519384-0	`519384-0`	Tellimisel	116.45 €	Rotor Assembly MAKITA 519384-0 kogus
039-1	Rotor MAKITA 519593-1	`519593-1`	Tellimisel	93.78 €	Rotor MAKITA 519593-1 kogus
040	Ball Bearing 6900 DDW MAKITA 210069-8	`210069-8`	Tellimisel	8.42 €	Ball Bearing 6900 DDW MAKITA 210069-8 kogus
041	Ball Bearing 607ZZ MAKITA 211022-7	`211022-7`	Tellimisel	5.61 €	Ball Bearing 607ZZ MAKITA 211022-7 kogus
042	Stator Assembly MAKITA 629170-2	`629170-2`	Tellimisel	215.93 €	Stator Assembly MAKITA 629170-2 kogus
042-1	Stator Complete MAKITA 629330-6	`629330-6`	Tellimisel	154.33 €	Stator Complete MAKITA 629330-6 kogus
042-2	Stator MAKITA 629B59-6	`629B59-6`	Tellimisel	22.53 €	Stator MAKITA 629B59-6 kogus
043	Housing Set MAKITA 183C08-8	`183C08-8`	Tellimisel	16.42 €	Housing Set MAKITA 183C08-8 kogus
043-1	Housing Set MAKITA 183H36-3	`183H36-3`	Tellimisel	16.84 €	Housing Set MAKITA 183H36-3 kogus
044	Cushion Rubber MAKITA 424773-5	`424773-5`	Laos	1.12 €	Cushion Rubber MAKITA 424773-5 kogus
044-1	Cushion Rubber MAKITA 422A56-3	`422A56-3`	Tellimisel	1.00 €	Cushion Rubber MAKITA 422A56-3 kogus
045	Cushion MAKITA 424517-3	`424517-3`	Tellimisel	0.99 €	Cushion MAKITA 424517-3 kogus
046	Battery Housing Set MAKITA 183C12-7	`183C12-7`	Tellimisel	16.42 €	Battery Housing Set MAKITA 183C12-7 kogus
047	Hook MAKITA 346949-3	`346949-3`	Laos	4.21 €	Hook MAKITA 346949-3 kogus
048	Truss Head Screw M4 × 12 MAKITA 251314-2	`251314-2`	Laos	0.99 €	Truss Head Screw M4 × 12 MAKITA 251314-2 kogus
050	Controller MAKITA 620K29-2	`620K29-2`	Tellimisel	122.00 €	Controller MAKITA 620K29-2 kogus
051	Pan Head Screw M2 × 6 MAKITA 652119-7	`652119-7`	Laos	0.50 €	Pan Head Screw M2 × 6 MAKITA 652119-7 kogus
