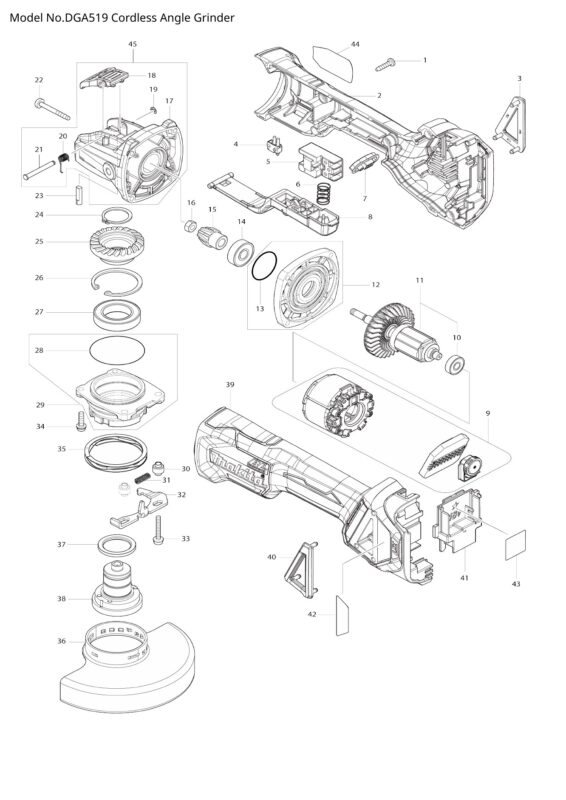

Makita DGA519 varuosad ja varuosajoonised

Näita varuosi (51)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
001-1	Binding head tapping screw 4X1 MAKITA 265B67-9	`265B67-9`	Tellimisel	0.99 €	Binding head tapping screw 4X1 MAKITA 265B67-9 kogus
002	Unspecified Spare Part MAKITA 183H86-8	`183H86-8`	Tellimisel	39.28 €	Unspecified Spare Part MAKITA 183H86-8 kogus
003	Dust Cover Right MAKITA 455450-8	`455450-8`	Laos	3.93 €	Dust Cover Right MAKITA 455450-8 kogus
004	Switch Assembly MAKITA 632E12-1	`632E12-1`	Tellimisel	11.79 €	Switch Assembly MAKITA 632E12-1 kogus
005	Switch MAKITA 650734-1	`650734-1`	Tellimisel	14.74 €	Switch MAKITA 650734-1 kogus
006	Compression Spring 11 MAKITA 234357-9	`234357-9`	Tellimisel	0.99 €	Compression Spring 11 MAKITA 234357-9 kogus
007	Indicator Panel Complete MAKITA 142901-7	`142901-7`	Tellimisel	0.99 €	Indicator Panel Complete MAKITA 142901-7 kogus
008	Switch Lever Assembly MAKITA 142976-6	`142976-6`	Tellimisel	5.76 €	Switch Lever Assembly MAKITA 142976-6 kogus
009	Stator Assembly - DGA517 MAKITA 629304-7	`629304-7`	Tellimisel	176.78 €	Stator Assembly - DGA517 MAKITA 629304-7 kogus
009-1	Stator MAKITA 629B61-9	`629B61-9`	Tellimisel	15.86 €	Stator MAKITA 629B61-9 kogus
010	Ball Bearing 607 LLB MAKITA 210169-4	`210169-4`	Laos	1.00 €	Ball Bearing 607 LLB MAKITA 210169-4 kogus
011	Unnamed Spare Part MAKITA 510440-9	`510440-9`	Tellimisel	38.50 €	Unnamed Spare Part MAKITA 510440-9 kogus
011-1	Unnamed Spare Part MAKITA 510440-9	`510440-9`	Tellimisel	38.50 €	Unnamed Spare Part MAKITA 510440-9 kogus
012	Gear Housing Cover Assembly MAKITA 135930-7	`135930-7`	Tellimisel	6.17 €	Gear Housing Cover Assembly MAKITA 135930-7 kogus
013	O-Ring 26 MAKITA 213445-5	`213445-5`	Tellimisel	0.99 €	O-Ring 26 MAKITA 213445-5 kogus
013-1	O-Ring 26 MAKITA 213407-3	`213407-3`	Tellimisel	0.99 €	O-Ring 26 MAKITA 213407-3 kogus
014	Ball Bearing 629 LLB MAKITA 210042-8	`210042-8`	Laos	4.21 €	Ball Bearing 629 LLB MAKITA 210042-8 kogus
015	Unknown Spare Part MAKITA 226950-3	`226950-3`	Tellimisel	4.00 €	Unknown Spare Part MAKITA 226950-3 kogus
016	Hex Nut M6 MAKITA 252186-8	`252186-8`	Tellimisel	0.99 €	Hex Nut M6 MAKITA 252186-8 kogus
017	Unnamed Spare Part MAKITA 140N76-0	`140N76-0`	Tellimisel	26.00 €	Unnamed Spare Part MAKITA 140N76-0 kogus
018	Unnamed Spare Part MAKITA 459967-3	`459967-3`	Tellimisel	5.00 €	Unnamed Spare Part MAKITA 459967-3 kogus
019	Stop Ring E-3 MAKITA 961017-7	`961017-7`	Tellimisel	0.99 €	Stop Ring E-3 MAKITA 961017-7 kogus
020	Unknown Spare Part MAKITA 232576-1	`232576-1`	Tellimisel	1.00 €	Unknown Spare Part MAKITA 232576-1 kogus
021	Unknown Spare Part MAKITA 256935-5	`256935-5`	Tellimisel	2.00 €	Unknown Spare Part MAKITA 256935-5 kogus
022	Tapping Screw 4 × 30 mm MAKITA 266361-0	`266361-0`	Tellimisel	0.99 €	Tapping Screw 4 × 30 mm MAKITA 266361-0 kogus
023	Spare Part MAKITA 327460-4	`327460-4`	Tellimisel	2.00 €	Spare Part MAKITA 327460-4 kogus
024	Unnamed Spare Part MAKITA 961104-2	`961104-2`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 961104-2 kogus
025	Unknown Spare Part MAKITA 226951-1	`226951-1`	Tellimisel	6.01 €	Unknown Spare Part MAKITA 226951-1 kogus
026	Retaining Ring Internal R-42 MAKITA 962201-7	`962201-7`	Tellimisel	1.00 €	Retaining Ring Internal R-42 MAKITA 962201-7 kogus
027	Unnamed Spare Part MAKITA 210208-0	`210208-0`	Tellimisel	9.62 €	Unnamed Spare Part MAKITA 210208-0 kogus
028	O-Ring 45 MAKITA 213622-9	`213622-9`	Tellimisel	0.99 €	O-Ring 45 MAKITA 213622-9 kogus
029	Unnamed Spare Part MAKITA 136199-6	`136199-6`	Tellimisel	9.62 €	Unnamed Spare Part MAKITA 136199-6 kogus
030	Sleeve 4 MAKITA 327322-6	`327322-6`	Tellimisel	1.00 €	Sleeve 4 MAKITA 327322-6 kogus
031	Unknown Spare Part MAKITA 232490-1	`232490-1`	Tellimisel	1.00 €	Unknown Spare Part MAKITA 232490-1 kogus
032	Unnamed Spare Part MAKITA 347615-5	`347615-5`	Tellimisel	2.00 €	Unnamed Spare Part MAKITA 347615-5 kogus
033	Pan Head Screw M4x30 MAKITA 911159-7	`911159-7`	Tellimisel	1.00 €	Pan Head Screw M4x30 MAKITA 911159-7 kogus
034	Pan Head Screw M4 × 20 With Washer MAKITA 911138-5	`911138-5`	Tellimisel	0.99 €	Pan Head Screw M4 × 20 With Washer MAKITA 911138-5 kogus
035	Unknown Spare Part MAKITA 232577-9	`232577-9`	Tellimisel	7.21 €	Unknown Spare Part MAKITA 232577-9 kogus
035-1	Unknown Spare Part MAKITA 232577-9	`232577-9`	Tellimisel	7.21 €	Unknown Spare Part MAKITA 232577-9 kogus
036	Unnamed Spare Part MAKITA 347618-9	`347618-9`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 347618-9 kogus
037	Spare Part MAKITA 327459-9	`327459-9`	Tellimisel	2.00 €	Spare Part MAKITA 327459-9 kogus
038	Hook Assembly MAKITA 127428-8	`127428-8`	Tellimisel	95.00 €	Hook Assembly MAKITA 127428-8 kogus
039	Unspecified Spare Part MAKITA 183H86-8	`183H86-8`	Tellimisel	39.28 €	Unspecified Spare Part MAKITA 183H86-8 kogus
040	Dust Cover Left MAKITA 455449-3	`455449-3`	Laos	3.93 €	Dust Cover Left MAKITA 455449-3 kogus
041	Terminal MAKITA 643874-2	`643874-2`	Tellimisel	3.93 €	Terminal MAKITA 643874-2 kogus
042	Unnamed Spare Part MAKITA 816D93-9	`816D93-9`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 816D93-9 kogus
043	Unnamed Spare Part MAKITA 856R76-1	`856R76-1`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 856R76-1 kogus
044	Unnamed Spare Part MAKITA 856R71-1	`856R71-1`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 856R71-1 kogus
045	Unnamed Spare Part MAKITA 136209-9	`136209-9`	Tellimisel	38.50 €	Unnamed Spare Part MAKITA 136209-9 kogus
047	Pan Head Screw M2 × 6 MAKITA 652119-7	`652119-7`	Laos	0.50 €	Pan Head Screw M2 × 6 MAKITA 652119-7 kogus
