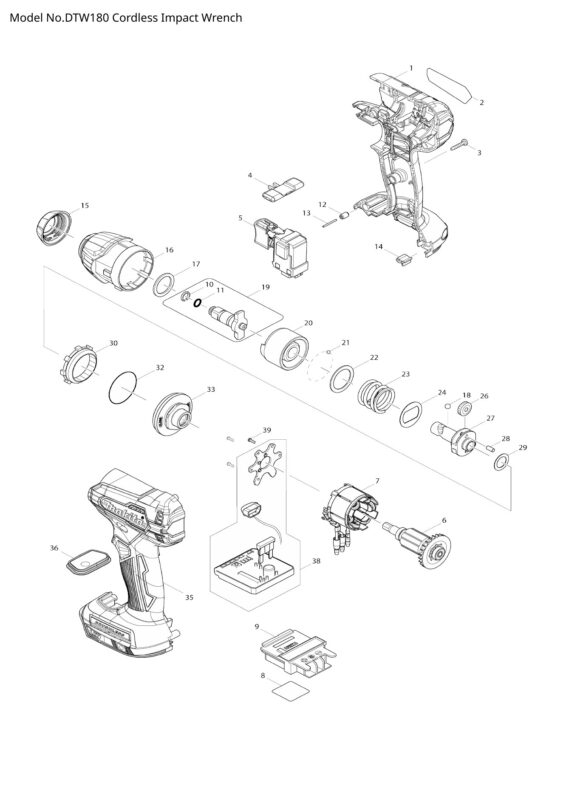

Makita DTW180 varuosad ja varuosajoonised

Näita varuosi (37)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Housing Set Assembly MAKITA 183J24-2	`183J24-2`	Tellimisel	15.58 €	Housing Set Assembly MAKITA 183J24-2 kogus
002	Unnamed Spare Part MAKITA 854D82-6	`854D82-6`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 854D82-6 kogus
003	Tapping Screw PT 3 × 16 mm MAKITA 266429-2	`266429-2`	Tellimisel	0.99 €	Tapping Screw PT 3 × 16 mm MAKITA 266429-2 kogus
004	Forward/reverse Change Lever MAKITA 455053-8	`455053-8`	Laos	1.00 €	Forward/reverse Change Lever MAKITA 455053-8 kogus
005	Switch Assembly MAKITA 143975-1	`143975-1`	Tellimisel	18.24 €	Switch Assembly MAKITA 143975-1 kogus
006	Rotor MAKITA 619491-0	`619491-0`	Tellimisel	27.78 €	Rotor MAKITA 619491-0 kogus
006-1	Rotor MAKITA 619491-0	`619491-0`	Tellimisel	27.78 €	Rotor MAKITA 619491-0 kogus
007	Stator DC 18 V MAKITA 629334-8	`629334-8`	Tellimisel	12.77 €	Stator DC 18 V MAKITA 629334-8 kogus
008	Unnamed Spare Part MAKITA 854D86-8	`854D86-8`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 854D86-8 kogus
009	Terminal - CL182D MAKITA 643860-3	`643860-3`	Tellimisel	4.21 €	Terminal - CL182D MAKITA 643860-3 kogus
010	Ring Spring 8 MAKITA 233943-3	`233943-3`	Tellimisel	3.51 €	Ring Spring 8 MAKITA 233943-3 kogus
011	O-ring 5 MAKITA 213960-9	`213960-9`	Tellimisel	0.99 €	O-ring 5 MAKITA 213960-9 kogus
012	Rubber Pin 5 - BTW251 MAKITA 263036-2	`263036-2`	Laos	1.68 €	Rubber Pin 5 - BTW251 MAKITA 263036-2 kogus
013	Pin 1.5 MAKITA 268284-8	`268284-8`	Tellimisel	0.99 €	Pin 1.5 MAKITA 268284-8 kogus
014	Cushion MAKITA 424517-3	`424517-3`	Tellimisel	0.99 €	Cushion MAKITA 424517-3 kogus
015	Bumper MAKITA 422228-4	`422228-4`	Tellimisel	1.00 €	Bumper MAKITA 422228-4 kogus
016	Hammer Case Complete MAKITA 144823-7	`144823-7`	Tellimisel	8.85 €	Hammer Case Complete MAKITA 144823-7 kogus
017	Nylon Washer 19 MAKITA 261159-0	`261159-0`	Tellimisel	0.99 €	Nylon Washer 19 MAKITA 261159-0 kogus
018	Steel Ball 4.8 - JR300VT MAKITA 216002-8	`216002-8`	Tellimisel	0.99 €	Steel Ball 4.8 - JR300VT MAKITA 216002-8 kogus
019	Anvil Assembly MAKITA 135932-3	`135932-3`	Tellimisel	7.02 €	Anvil Assembly MAKITA 135932-3 kogus
020	Hammer MAKITA 327045-6	`327045-6`	Tellimisel	9.54 €	Hammer MAKITA 327045-6 kogus
021	STEEL BALL 3, TD020D	`216019-1`	Laos	0.99 €	STEEL BALL 3, TD020D kogus
022	Flat Washer 22 MAKITA 267352-4	`267352-4`	Tellimisel	0.99 €	Flat Washer 22 MAKITA 267352-4 kogus
023	Compression Spring 21 MAKITA 232410-5	`232410-5`	Tellimisel	2.67 €	Compression Spring 21 MAKITA 232410-5 kogus
024	Washer 21 MAKITA 267813-4	`267813-4`	Tellimisel	0.99 €	Washer 21 MAKITA 267813-4 kogus
026	Spur Gear 17 MAKITA 221437-0	`221437-0`	Tellimisel	5.05 €	Spur Gear 17 MAKITA 221437-0 kogus
027	Spindle MAKITA 327046-4	`327046-4`	Tellimisel	6.32 €	Spindle MAKITA 327046-4 kogus
028	Pin 3.5 - TD090D MAKITA 268217-3	`268217-3`	Tellimisel	0.99 €	Pin 3.5 - TD090D MAKITA 268217-3 kogus
029	Flat Washer 12 MAKITA 253052-2	`253052-2`	Tellimisel	0.99 €	Flat Washer 12 MAKITA 253052-2 kogus
030	Internal Gear 43 MAKITA 227316-0	`227316-0`	Tellimisel	3.79 €	Internal Gear 43 MAKITA 227316-0 kogus
032	O-ring 33 MAKITA 213479-8	`213479-8`	Tellimisel	1.00 €	O-ring 33 MAKITA 213479-8 kogus
033	Bearing Box Complete MAKITA 144829-5	`144829-5`	Tellimisel	5.20 €	Bearing Box Complete MAKITA 144829-5 kogus
033-1	Bearing Box Complete MAKITA 140G75-0	`140G75-0`	Tellimisel	4.65 €	Bearing Box Complete MAKITA 140G75-0 kogus
035	Housing Set Assembly MAKITA 183J24-2	`183J24-2`	Tellimisel	15.58 €	Housing Set Assembly MAKITA 183J24-2 kogus
036	Switch Plate Complete MAKITA 144828-7	`144828-7`	Tellimisel	2.11 €	Switch Plate Complete MAKITA 144828-7 kogus
038	Controller MAKITA 620743-4	`620743-4`	Tellimisel	85.73 €	Controller MAKITA 620743-4 kogus
039	Tapping Screw 2 × 6 mm MAKITA 266490-9	`266490-9`	Tellimisel	0.99 €	Tapping Screw 2 × 6 mm MAKITA 266490-9 kogus
