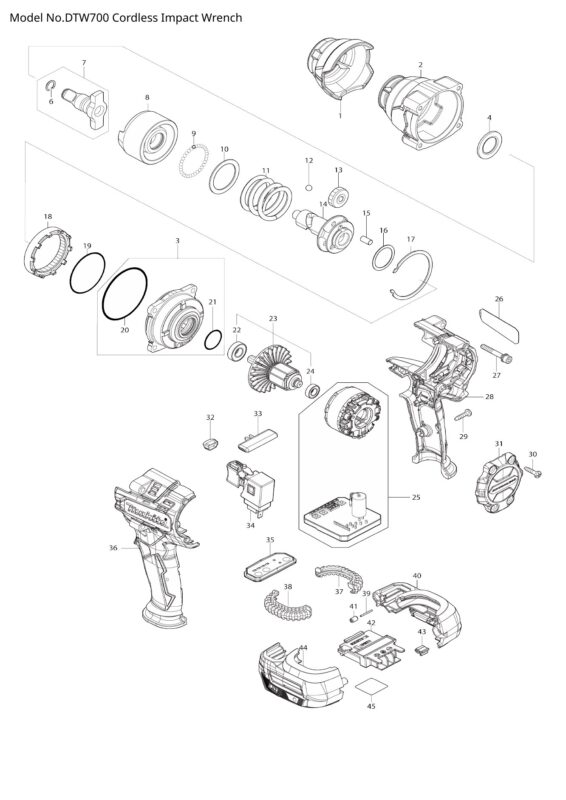

Makita DTW700 varuosad ja varuosajoonised

Näita varuosi (39)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Bumper MAKITA 422607-6	`422607-6`	Tellimisel	1.40 €	Bumper MAKITA 422607-6 kogus
003	Internal Gear Case 51 Assembly MAKITA 136296-8	`136296-8`	Tellimisel	12.63 €	Internal Gear Case 51 Assembly MAKITA 136296-8 kogus
004	Spare Part MAKITA 253481-9	`253481-9`	Tellimisel	1.00 €	Spare Part MAKITA 253481-9 kogus
006	Ring Spring 10 MAKITA 231907-1	`231907-1`	Laos	2.00 €	Ring Spring 10 MAKITA 231907-1 kogus
007	Anvil Assembly MAKITA 136256-0	`136256-0`	Tellimisel	85.58 €	Anvil Assembly MAKITA 136256-0 kogus
008	Hammer MAKITA 327624-0	`327624-0`	Tellimisel	29.46 €	Hammer MAKITA 327624-0 kogus
009	Steel Ball 3.5 - TD140D MAKITA 216001-0	`216001-0`	Laos	0.99 €	Steel Ball 3.5 - TD140D MAKITA 216001-0 kogus
010	Flat Washer 32 MAKITA 267340-1	`267340-1`	Tellimisel	1.00 €	Flat Washer 32 MAKITA 267340-1 kogus
011	Compression Spring 34 MAKITA 232629-6	`232629-6`	Tellimisel	5.61 €	Compression Spring 34 MAKITA 232629-6 kogus
012	Steel Ball 6.4 MAKITA 216007-8	`216007-8`	Tellimisel	0.99 €	Steel Ball 6.4 MAKITA 216007-8 kogus
013	Spur Gear 21 MAKITA 227813-6	`227813-6`	Tellimisel	2.53 €	Spur Gear 21 MAKITA 227813-6 kogus
014	Spindle MAKITA 327623-2	`327623-2`	Tellimisel	15.43 €	Spindle MAKITA 327623-2 kogus
015	Unknown Spare Part MAKITA 256211-7	`256211-7`	Tellimisel	1.00 €	Unknown Spare Part MAKITA 256211-7 kogus
016-1	Flat Washer 26 MAKITA 267127-1	`267127-1`	Tellimisel	0.99 €	Flat Washer 26 MAKITA 267127-1 kogus
017	Retainer MAKITA 347722-4	`347722-4`	Tellimisel	4.36 €	Retainer MAKITA 347722-4 kogus
018	Internal Spur Gear 48 MAKITA 227814-4	`227814-4`	Tellimisel	4.64 €	Internal Spur Gear 48 MAKITA 227814-4 kogus
020	O-Ring 60 MAKITA 213654-6	`213654-6`	Tellimisel	1.00 €	O-Ring 60 MAKITA 213654-6 kogus
021	O-ring 22 MAKITA 213961-7	`213961-7`	Tellimisel	0.99 €	O-ring 22 MAKITA 213961-7 kogus
022	Ball Bearing 6900 DDW MAKITA 210069-8	`210069-8`	Tellimisel	8.42 €	Ball Bearing 6900 DDW MAKITA 210069-8 kogus
023	Rotor Assembly MAKITA 519635-1	`519635-1`	Tellimisel	22.45 €	Rotor Assembly MAKITA 519635-1 kogus
024	MAKITA 211343-7	`211343-7`	Tellimisel	2.00 €	MAKITA 211343-7 kogus
025	Stator Complete MAKITA 629A06-1	`629A06-1`	Tellimisel	113.64 €	Stator Complete MAKITA 629A06-1 kogus
026	Unnamed Spare Part MAKITA 857M03-1	`857M03-1`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 857M03-1 kogus
028	Housing Set MAKITA 183P88-2	`183P88-2`	Tellimisel	15.43 €	Housing Set MAKITA 183P88-2 kogus
029	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
030	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
031	Rear Cover MAKITA 412673-1	`412673-1`	Tellimisel	2.81 €	Rear Cover MAKITA 412673-1 kogus
033	Forward Reverse Change Lever MAKITA 456268-0	`456268-0`	Tellimisel	1.12 €	Forward Reverse Change Lever MAKITA 456268-0 kogus
034	Switch Complete MAKITA 140U03-9	`140U03-9`	Tellimisel	32.82 €	Switch Complete MAKITA 140U03-9 kogus
036	Housing Set MAKITA 183P88-2	`183P88-2`	Tellimisel	15.43 €	Housing Set MAKITA 183P88-2 kogus
037-1	Cushion Rubber MAKITA 422A56-3	`422A56-3`	Tellimisel	1.00 €	Cushion Rubber MAKITA 422A56-3 kogus
038-1	Cushion Rubber MAKITA 422A56-3	`422A56-3`	Tellimisel	1.00 €	Cushion Rubber MAKITA 422A56-3 kogus
039	Pin 1.5 MAKITA 268284-8	`268284-8`	Tellimisel	0.99 €	Pin 1.5 MAKITA 268284-8 kogus
040	Battery Housing Set MAKITA 183P89-0	`183P89-0`	Tellimisel	9.13 €	Battery Housing Set MAKITA 183P89-0 kogus
041	Rubber Pin 5 - BTW251 MAKITA 263036-2	`263036-2`	Laos	1.68 €	Rubber Pin 5 - BTW251 MAKITA 263036-2 kogus
042	Terminal MAKITA 643874-2	`643874-2`	Tellimisel	3.93 €	Terminal MAKITA 643874-2 kogus
043	Cushion MAKITA 424517-3	`424517-3`	Tellimisel	0.99 €	Cushion MAKITA 424517-3 kogus
044	Battery Housing Set MAKITA 183P89-0	`183P89-0`	Tellimisel	9.13 €	Battery Housing Set MAKITA 183P89-0 kogus
045	Unnamed Spare Part MAKITA 857M11-2	`857M11-2`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 857M11-2 kogus
