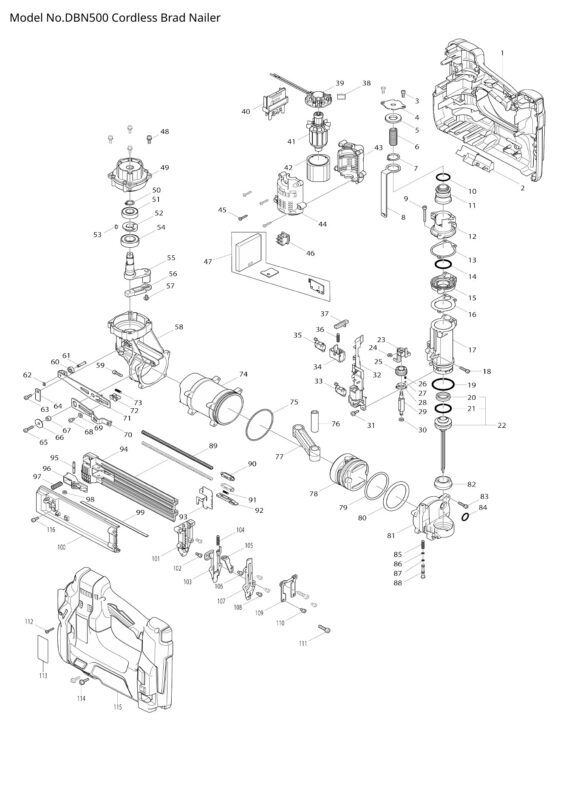

Makita DBN500 varuosad ja varuosajoonised

Näita varuosi (117)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Housing Set MAKITA 187864-0	`187864-0`	Tellimisel	45.04 €	Housing Set MAKITA 187864-0 kogus
002	LED Cover MAKITA 454946-6	`454946-6`	Tellimisel	1.83 €	LED Cover MAKITA 454946-6 kogus
003	Hex Socket Head Bolt M4 × 10 MAKITA 922112-8	`922112-8`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 × 10 MAKITA 922112-8 kogus
004	Top Cap MAKITA 346773-4	`346773-4`	Tellimisel	1.00 €	Top Cap MAKITA 346773-4 kogus
005	Rear Cushion MAKITA 424625-0	`424625-0`	Tellimisel	1.00 €	Rear Cushion MAKITA 424625-0 kogus
006	Compression Spring 11 MAKITA 234327-8	`234327-8`	Tellimisel	0.99 €	Compression Spring 11 MAKITA 234327-8 kogus
006-1	Compression Spring 11 MAKITA 234393-5	`234393-5`	Tellimisel	0.99 €	Compression Spring 11 MAKITA 234393-5 kogus
007	Retaining Ring External S-19 MAKITA 961059-1	`961059-1`	Tellimisel	0.99 €	Retaining Ring External S-19 MAKITA 961059-1 kogus
008	Link Arm B MAKITA 346776-8	`346776-8`	Tellimisel	4.07 €	Link Arm B MAKITA 346776-8 kogus
009	Hex Socket Head Bolt M4 MAKITA 922157-6	`922157-6`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 MAKITA 922157-6 kogus
010	O-Ring 21 MAKITA 213381-5	`213381-5`	Tellimisel	1.00 €	O-Ring 21 MAKITA 213381-5 kogus
011	Valve MAKITA 326398-0	`326398-0`	Tellimisel	10.10 €	Valve MAKITA 326398-0 kogus
012	Cylinder Head MAKITA 319114-7	`319114-7`	Tellimisel	7.30 €	Cylinder Head MAKITA 319114-7 kogus
013	Gasket A MAKITA 423472-6	`423472-6`	Tellimisel	2.11 €	Gasket A MAKITA 423472-6 kogus
014	O-Ring 24 MAKITA 213364-5	`213364-5`	Tellimisel	0.99 €	O-Ring 24 MAKITA 213364-5 kogus
015	Separator MAKITA 319116-3	`319116-3`	Tellimisel	5.61 €	Separator MAKITA 319116-3 kogus
016	Gasket B MAKITA 423473-4	`423473-4`	Tellimisel	2.11 €	Gasket B MAKITA 423473-4 kogus
017	Driver Cylinder MAKITA 319113-9	`319113-9`	Tellimisel	14.31 €	Driver Cylinder MAKITA 319113-9 kogus
018	Hex Socket Head Bolt M4 MAKITA 922127-5	`922127-5`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 MAKITA 922127-5 kogus
019	O-Ring 34 MAKITA 213475-6	`213475-6`	Tellimisel	0.99 €	O-Ring 34 MAKITA 213475-6 kogus
020	Cushion P MAKITA 421551-4	`421551-4`	Tellimisel	5.61 €	Cushion P MAKITA 421551-4 kogus
021	O-Ring 24 MAKITA 213364-5	`213364-5`	Tellimisel	0.99 €	O-Ring 24 MAKITA 213364-5 kogus
022	Driver Assembly MAKITA 135644-8	`135644-8`	Tellimisel	61.73 €	Driver Assembly MAKITA 135644-8 kogus
023	Adjuster Block MAKITA 310585-1	`310585-1`	Tellimisel	28.90 €	Adjuster Block MAKITA 310585-1 kogus
024	Urethane Ring 4 MAKITA 262130-7	`262130-7`	Tellimisel	1.00 €	Urethane Ring 4 MAKITA 262130-7 kogus
025	Adjuster MAKITA 454949-0	`454949-0`	Tellimisel	3.37 €	Adjuster MAKITA 454949-0 kogus
026	Compression Spring 2 MAKITA 234254-9	`234254-9`	Tellimisel	1.26 €	Compression Spring 2 MAKITA 234254-9 kogus
027	Steel Ball 2.3 - AN911H MAKITA 216031-1	`216031-1`	Tellimisel	1.00 €	Steel Ball 2.3 - AN911H MAKITA 216031-1 kogus
028	Adjuster Guide MAKITA 453807-7	`453807-7`	Tellimisel	2.95 €	Adjuster Guide MAKITA 453807-7 kogus
029	Adjuster Rod MAKITA 326399-8	`326399-8`	Tellimisel	2.53 €	Adjuster Rod MAKITA 326399-8 kogus
030	Urethane Ring 4 MAKITA 262130-7	`262130-7`	Tellimisel	1.00 €	Urethane Ring 4 MAKITA 262130-7 kogus
031	Tapping Screw CT 4 × 12 MAKITA 266026-4	`266026-4`	Tellimisel	0.99 €	Tapping Screw CT 4 × 12 MAKITA 266026-4 kogus
032	Switch Base MAKITA 454938-5	`454938-5`	Tellimisel	2.95 €	Switch Base MAKITA 454938-5 kogus
033	Switch Unit MAKITA 632C01-4	`632C01-4`	Tellimisel	12.21 €	Switch Unit MAKITA 632C01-4 kogus
034	Trigger MAKITA 454939-3	`454939-3`	Tellimisel	1.68 €	Trigger MAKITA 454939-3 kogus
035	Switch Unit MAKITA 632C01-4	`632C01-4`	Tellimisel	12.21 €	Switch Unit MAKITA 632C01-4 kogus
036	Compression Spring 5 MAKITA 234037-7	`234037-7`	Tellimisel	0.99 €	Compression Spring 5 MAKITA 234037-7 kogus
036-1	Compression Spring 5 MAKITA 231372-4	`231372-4`	Tellimisel	0.99 €	Compression Spring 5 MAKITA 231372-4 kogus
037	Trigger Lock MAKITA 454952-1	`454952-1`	Tellimisel	1.68 €	Trigger Lock MAKITA 454952-1 kogus
038	Carbon Brush Set CB-440 2 Pcs MAKITA 194427-5	`194427-5`	Tellimisel	4.00 €	Carbon Brush Set CB-440 2 Pcs MAKITA 194427-5 kogus
038-1	Carbon Brush CB-440 MAKITA 195021-6	`195021-6`	Laos	4.00 €	Carbon Brush CB-440 MAKITA 195021-6 kogus
039	Brush Holder Complete MAKITA 632B92-9	`632B92-9`	Tellimisel	2.81 €	Brush Holder Complete MAKITA 632B92-9 kogus
040	Terminal - CL182D MAKITA 643860-3	`643860-3`	Tellimisel	4.21 €	Terminal - CL182D MAKITA 643860-3 kogus
041	Armature MAKITA 619339-6	`619339-6`	Tellimisel	30.45 €	Armature MAKITA 619339-6 kogus
042	Yoke Unit MAKITA 638989-8	`638989-8`	Tellimisel	19.64 €	Yoke Unit MAKITA 638989-8 kogus
043	Motor Housing Set MAKITA 187809-8	`187809-8`	Tellimisel	4.64 €	Motor Housing Set MAKITA 187809-8 kogus
044	Motor Housing Set MAKITA 187809-8	`187809-8`	Tellimisel	4.64 €	Motor Housing Set MAKITA 187809-8 kogus
045	Tapping Screw PT 3 × 16 MAKITA 266130-9	`266130-9`	Laos	0.99 €	Tapping Screw PT 3 × 16 MAKITA 266130-9 kogus
046	Switch - SLEA2-33 BBC231U MAKITA 651533-4	`651533-4`	Tellimisel	4.21 €	Switch - SLEA2-33 BBC231U MAKITA 651533-4 kogus
047	Controller MAKITA 620291-3	`620291-3`	Tellimisel	119.26 €	Controller MAKITA 620291-3 kogus
048	Hex Socket Head Bolt M4 × 12 MAKITA 266273-7	`266273-7`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 × 12 MAKITA 266273-7 kogus
049	Gear Assembly MAKITA 126398-8	`126398-8`	Tellimisel	55.71 €	Gear Assembly MAKITA 126398-8 kogus
050	Retaining Ring S-12 MAKITA 961052-5	`961052-5`	Tellimisel	0.99 €	Retaining Ring S-12 MAKITA 961052-5 kogus
051	Ball Bearing 6001 ZZ MAKITA 210107-6	`210107-6`	Tellimisel	1.40 €	Ball Bearing 6001 ZZ MAKITA 210107-6 kogus
052	Edge Cam Right MAKITA 313276-3	`313276-3`	Tellimisel	4.49 €	Edge Cam Right MAKITA 313276-3 kogus
053	Woodruff Key 3 MAKITA 254031-3	`254031-3`	Tellimisel	0.99 €	Woodruff Key 3 MAKITA 254031-3 kogus
055	Crank MAKITA 332100-1	`332100-1`	Tellimisel	15.71 €	Crank MAKITA 332100-1 kogus
056	Magnet Base Complete MAKITA 142440-7	`142440-7`	Tellimisel	6.32 €	Magnet Base Complete MAKITA 142440-7 kogus
057	Pan Head Screw M4 × 8 MAKITA 911109-2	`911109-2`	Tellimisel	0.99 €	Pan Head Screw M4 × 8 MAKITA 911109-2 kogus
058	Crank Case MAKITA 319112-1	`319112-1`	Tellimisel	30.30 €	Crank Case MAKITA 319112-1 kogus
059	Hex Socket Head Bolt M4 MAKITA 922127-5	`922127-5`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 MAKITA 922127-5 kogus
060	Ball Bearing 604 ZZ MAKITA 210036-3	`210036-3`	Laos	2.81 €	Ball Bearing 604 ZZ MAKITA 210036-3 kogus
061	Pin 4 MAKITA 256553-9	`256553-9`	Tellimisel	0.99 €	Pin 4 MAKITA 256553-9 kogus
062	Stop Ring E-3 MAKITA 961017-7	`961017-7`	Tellimisel	0.99 €	Stop Ring E-3 MAKITA 961017-7 kogus
063	Hex Socket Head Bolt M4 × 10 MAKITA 922112-8	`922112-8`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 × 10 MAKITA 922112-8 kogus
064	Plate B MAKITA 346778-4	`346778-4`	Tellimisel	0.99 €	Plate B MAKITA 346778-4 kogus
065	Hex Socket Head Bolt M4 MAKITA 922127-5	`922127-5`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 MAKITA 922127-5 kogus
066	Flat Washer 4 MAKITA 267071-2	`267071-2`	Tellimisel	0.99 €	Flat Washer 4 MAKITA 267071-2 kogus
067	Sleeve 8 MAKITA 257822-1	`257822-1`	Tellimisel	1.68 €	Sleeve 8 MAKITA 257822-1 kogus
068	Hex Socket Head Bolt M4 MAKITA 922102-1	`922102-1`	Laos	0.99 €	Hex Socket Head Bolt M4 MAKITA 922102-1 kogus
069	Flat Washer MAKITA 941051-3	`941051-3`	Tellimisel	0.99 €	Flat Washer MAKITA 941051-3 kogus
070	Sub Arm Complete MAKITA 142442-3	`142442-3`	Tellimisel	8.14 €	Sub Arm Complete MAKITA 142442-3 kogus
071	Link Arm A MAKITA 346775-0	`346775-0`	Tellimisel	7.58 €	Link Arm A MAKITA 346775-0 kogus
072	Slider MAKITA 310587-7	`310587-7`	Tellimisel	7.44 €	Slider MAKITA 310587-7 kogus
073	Compression Spring 3 MAKITA 234119-5	`234119-5`	Tellimisel	0.99 €	Compression Spring 3 MAKITA 234119-5 kogus
074	Main Cylinder MAKITA 332099-0	`332099-0`	Tellimisel	64.26 €	Main Cylinder MAKITA 332099-0 kogus
075	O-Ring 63 MAKITA 213709-7	`213709-7`	Tellimisel	1.12 €	O-Ring 63 MAKITA 213709-7 kogus
076	Pipe 12 MAKITA 332101-9	`332101-9`	Tellimisel	3.51 €	Pipe 12 MAKITA 332101-9 kogus
077	Connecting Rod MAKITA 454937-7	`454937-7`	Tellimisel	1.96 €	Connecting Rod MAKITA 454937-7 kogus
078	Piston A MAKITA 454944-0	`454944-0`	Tellimisel	4.21 €	Piston A MAKITA 454944-0 kogus
079	O-Ring 50 MAKITA 213605-9	`213605-9`	Tellimisel	1.00 €	O-Ring 50 MAKITA 213605-9 kogus
080	O-Ring 50 MAKITA 213609-1	`213609-1`	Tellimisel	3.23 €	O-Ring 50 MAKITA 213609-1 kogus
081	Cylinder End MAKITA 319115-5	`319115-5`	Tellimisel	14.59 €	Cylinder End MAKITA 319115-5 kogus
082	Cushion MAKITA 424624-2	`424624-2`	Tellimisel	6.45 €	Cushion MAKITA 424624-2 kogus
083	Hex Socket Head Bolt M4 MAKITA 922127-5	`922127-5`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 MAKITA 922127-5 kogus
084	O-Ring 14 MAKITA 213162-7	`213162-7`	Tellimisel	1.00 €	O-Ring 14 MAKITA 213162-7 kogus
085	Compression Spring 4 MAKITA 234329-4	`234329-4`	Tellimisel	0.99 €	Compression Spring 4 MAKITA 234329-4 kogus
086	O-Ring 3 MAKITA 213044-3	`213044-3`	Tellimisel	0.99 €	O-Ring 3 MAKITA 213044-3 kogus
087	O-Ring 3 MAKITA 213044-3	`213044-3`	Tellimisel	0.99 €	O-Ring 3 MAKITA 213044-3 kogus
088	Valve Stem MAKITA 326401-7	`326401-7`	Tellimisel	4.36 €	Valve Stem MAKITA 326401-7 kogus
089	Compression Spring 6 MAKITA 234325-2	`234325-2`	Tellimisel	2.24 €	Compression Spring 6 MAKITA 234325-2 kogus
090	Sleeve MAKITA 454940-8	`454940-8`	Tellimisel	1.40 €	Sleeve MAKITA 454940-8 kogus
091	Compression Spring 3 MAKITA 234326-0	`234326-0`	Tellimisel	1.00 €	Compression Spring 3 MAKITA 234326-0 kogus
092	Stopper MAKITA 310584-3	`310584-3`	Tellimisel	7.30 €	Stopper MAKITA 310584-3 kogus
093	Pusher MAKITA 346782-3	`346782-3`	Tellimisel	5.05 €	Pusher MAKITA 346782-3 kogus
094	Slide Door MAKITA 454942-4	`454942-4`	Tellimisel	10.38 €	Slide Door MAKITA 454942-4 kogus
095	Pin 3 MAKITA 256793-9	`256793-9`	Tellimisel	0.99 €	Pin 3 MAKITA 256793-9 kogus
096	Lock Lever MAKITA 454945-8	`454945-8`	Tellimisel	2.53 €	Lock Lever MAKITA 454945-8 kogus
097	Compression Spring 7 MAKITA 233197-2	`233197-2`	Tellimisel	0.99 €	Compression Spring 7 MAKITA 233197-2 kogus
098	Urethane Ring 3 MAKITA 262054-7	`262054-7`	Tellimisel	0.99 €	Urethane Ring 3 MAKITA 262054-7 kogus
099	Nail Plate MAKITA 346774-2	`346774-2`	Tellimisel	0.99 €	Nail Plate MAKITA 346774-2 kogus
100	Magazine MAKITA 454943-2	`454943-2`	Tellimisel	13.19 €	Magazine MAKITA 454943-2 kogus
101	Set Plate MAKITA 310588-5	`310588-5`	Tellimisel	68.89 €	Set Plate MAKITA 310588-5 kogus
102	Hex Socket Head Bolt MAKITA 265911-8	`265911-8`	Tellimisel	0.99 €	Hex Socket Head Bolt MAKITA 265911-8 kogus
103	Center Plate Complete MAKITA 142443-1	`142443-1`	Laos	32.27 €	Center Plate Complete MAKITA 142443-1 kogus
104	Compression Spring 4 MAKITA 234328-6	`234328-6`	Tellimisel	0.99 €	Compression Spring 4 MAKITA 234328-6 kogus
105	Arm MAKITA 346779-2	`346779-2`	Tellimisel	0.99 €	Arm MAKITA 346779-2 kogus
106	Hex Socket Head Bolt M4 MAKITA 922102-1	`922102-1`	Laos	0.99 €	Hex Socket Head Bolt M4 MAKITA 922102-1 kogus
107	Driver Guide MAKITA 310586-9	`310586-9`	Laos	42.09 €	Driver Guide MAKITA 310586-9 kogus
108	Hex Socket Head Bolt M4 MAKITA 922102-1	`922102-1`	Laos	0.99 €	Hex Socket Head Bolt M4 MAKITA 922102-1 kogus
109	Plate A MAKITA 346777-6	`346777-6`	Tellimisel	1.12 €	Plate A MAKITA 346777-6 kogus
110	Hex Socket Head Bolt M4 MAKITA 922102-1	`922102-1`	Laos	0.99 €	Hex Socket Head Bolt M4 MAKITA 922102-1 kogus
111	Nylok Screw 5 × 20 MAKITA 266369-4	`266369-4`	Tellimisel	0.99 €	Nylok Screw 5 × 20 MAKITA 266369-4 kogus
112	Tapping Screw PT 3 × 16 MAKITA 266130-9	`266130-9`	Laos	0.99 €	Tapping Screw PT 3 × 16 MAKITA 266130-9 kogus
114	Hex Bolt M4 × 12 MAKITA 911118-1	`911118-1`	Tellimisel	0.99 €	Hex Bolt M4 × 12 MAKITA 911118-1 kogus
115	Housing Set MAKITA 187864-0	`187864-0`	Tellimisel	45.04 €	Housing Set MAKITA 187864-0 kogus
116	Hex Socket Head Bolt M4 × 10 MAKITA 922112-8	`922112-8`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 × 10 MAKITA 922112-8 kogus
