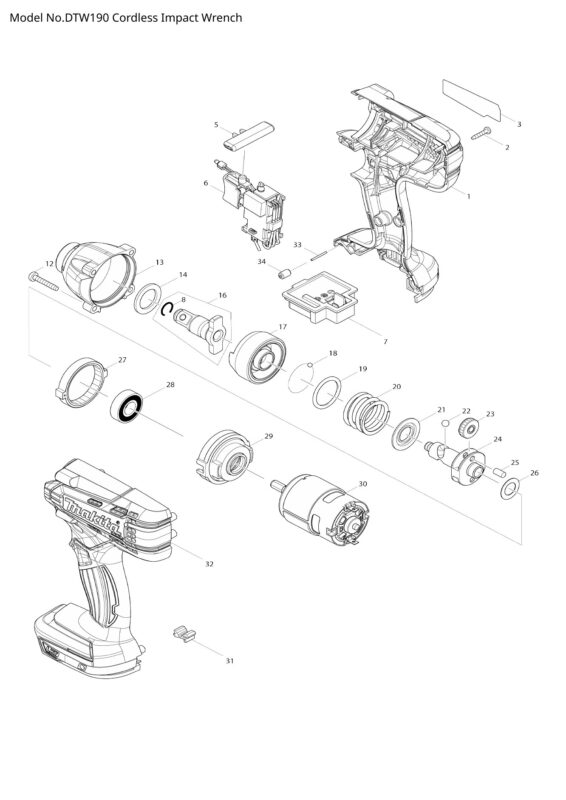

Makita DTW190 varuosad ja varuosajoonised

Näita varuosi (33)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Housing Set MAKITA 183D73-3	`183D73-3`	Tellimisel	19.79 €	Housing Set MAKITA 183D73-3 kogus
001-1	Housing Set MAKITA 183D73-3	`183D73-3`	Tellimisel	19.79 €	Housing Set MAKITA 183D73-3 kogus
002	Tapping Screw PT 3 × 16 mm MAKITA 266429-2	`266429-2`	Tellimisel	0.99 €	Tapping Screw PT 3 × 16 mm MAKITA 266429-2 kogus
003	Unnamed Spare Part MAKITA 851W90-2	`851W90-2`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 851W90-2 kogus
005	Forward Reverse Change Lever MAKITA 452399-3	`452399-3`	Tellimisel	0.99 €	Forward Reverse Change Lever MAKITA 452399-3 kogus
006	Switch Assembly MAKITA 632G34-3	`632G34-3`	Tellimisel	34.23 €	Switch Assembly MAKITA 632G34-3 kogus
006-1	Switch Unit MAKITA 632J81-2	`632J81-2`	Tellimisel	38.16 €	Switch Unit MAKITA 632J81-2 kogus
007	Terminal MAKITA 643852-2	`643852-2`	Laos	4.21 €	Terminal MAKITA 643852-2 kogus
008	Ring Spring 10 MAKITA 231907-1	`231907-1`	Laos	2.00 €	Ring Spring 10 MAKITA 231907-1 kogus
012	Tapping Screw 4 × 25 mm MAKITA 266374-1	`266374-1`	Tellimisel	0.99 €	Tapping Screw 4 × 25 mm MAKITA 266374-1 kogus
013	Hammer Case Complete MAKITA 143646-0	`143646-0`	Tellimisel	16.42 €	Hammer Case Complete MAKITA 143646-0 kogus
014	Nylon Washer 19 MAKITA 261151-6	`261151-6`	Laos	0.99 €	Nylon Washer 19 MAKITA 261151-6 kogus
016	Anvil E Assembly MAKITA 135745-2	`135745-2`	Tellimisel	12.21 €	Anvil E Assembly MAKITA 135745-2 kogus
016-1	Anvil E Assembly MAKITA 135796-5	`135796-5`	Tellimisel	12.21 €	Anvil E Assembly MAKITA 135796-5 kogus
017	Hammer MAKITA 326110-8	`326110-8`	Tellimisel	11.22 €	Hammer MAKITA 326110-8 kogus
018	Steel Ball 3.5 MAKITA 216040-0	`216040-0`	Laos	0.99 €	Steel Ball 3.5 MAKITA 216040-0 kogus
019	Flat washer 24 MAKITA 267175-0	`267175-0`	Tellimisel	0.99 €	Flat washer 24 MAKITA 267175-0 kogus
020	Compression Spring 24 MAKITA 233430-2	`233430-2`	Tellimisel	1.68 €	Compression Spring 24 MAKITA 233430-2 kogus
021	Flat Washer 14 MAKITA 267766-7	`267766-7`	Tellimisel	0.99 €	Flat Washer 14 MAKITA 267766-7 kogus
022	Steel Ball 5.6 MAKITA 216041-8	`216041-8`	Tellimisel	0.99 €	Steel Ball 5.6 MAKITA 216041-8 kogus
023	Spur Gear 22 MAKITA 227362-3	`227362-3`	Tellimisel	1.96 €	Spur Gear 22 MAKITA 227362-3 kogus
024	Spindle MAKITA 326109-3	`326109-3`	Tellimisel	14.03 €	Spindle MAKITA 326109-3 kogus
025	Pin 5 MAKITA 256253-1	`256253-1`	Tellimisel	0.99 €	Pin 5 MAKITA 256253-1 kogus
026	Flat Washer 12 MAKITA 267212-0	`267212-0`	Tellimisel	0.99 €	Flat Washer 12 MAKITA 267212-0 kogus
027	Internal Gear 51 MAKITA 227279-0	`227279-0`	Tellimisel	1.12 €	Internal Gear 51 MAKITA 227279-0 kogus
028	Ball Bearing 6001 ZZ MAKITA 210107-6	`210107-6`	Tellimisel	1.40 €	Ball Bearing 6001 ZZ MAKITA 210107-6 kogus
029	Internal Gear Case MAKITA 453056-6	`453056-6`	Tellimisel	1.00 €	Internal Gear Case MAKITA 453056-6 kogus
030	DC Motor MAKITA 629199-8	`629199-8`	Tellimisel	31.57 €	DC Motor MAKITA 629199-8 kogus
031	Cushion MAKITA 424476-1	`424476-1`	Tellimisel	0.99 €	Cushion MAKITA 424476-1 kogus
032	Housing Set MAKITA 183D73-3	`183D73-3`	Tellimisel	19.79 €	Housing Set MAKITA 183D73-3 kogus
032-1	Housing Set MAKITA 183D73-3	`183D73-3`	Tellimisel	19.79 €	Housing Set MAKITA 183D73-3 kogus
033	Pin 1.5 MAKITA 268284-8	`268284-8`	Tellimisel	0.99 €	Pin 1.5 MAKITA 268284-8 kogus
034	Rubber Pin 5 - BTW251 MAKITA 263036-2	`263036-2`	Laos	1.68 €	Rubber Pin 5 - BTW251 MAKITA 263036-2 kogus
