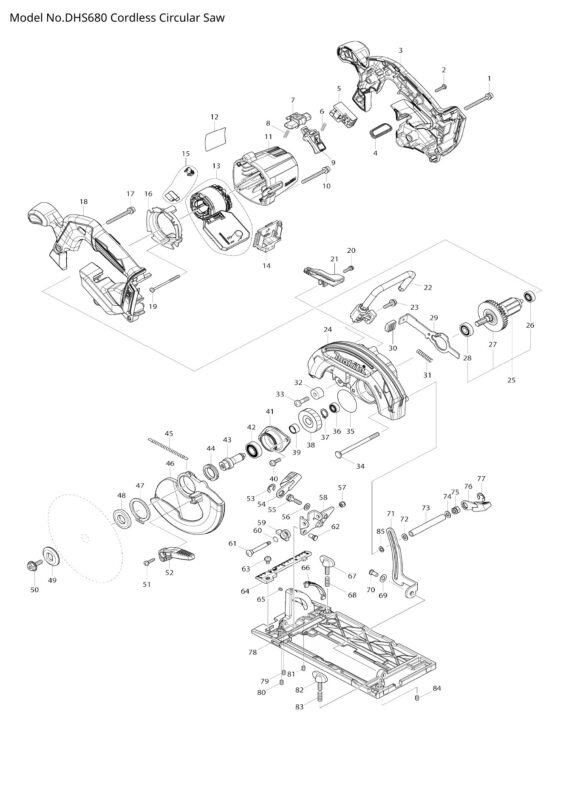

Makita DHS680 varuosad ja varuosajoonised

Näita varuosi (103)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Pan Head Screw M5 × 40 MAKITA 911263-2	`911263-2`	Tellimisel	0.99 €	Pan Head Screw M5 × 40 MAKITA 911263-2 kogus
002	Binding head tapping screw 4X18 MAKITA 265995-6	`265995-6`	Tellimisel	0.99 €	Binding head tapping screw 4X18 MAKITA 265995-6 kogus
003	Handle Set MAKITA 183A15-9	`183A15-9`	Tellimisel	20.76 €	Handle Set MAKITA 183A15-9 kogus
003-1	Handle Set MAKITA 183A15-9	`183A15-9`	Tellimisel	20.76 €	Handle Set MAKITA 183A15-9 kogus
003-2	Handle Set MAKITA 183A15-9	`183A15-9`	Tellimisel	20.76 €	Handle Set MAKITA 183A15-9 kogus
004	Indication Plate Complete MAKITA 142948-1	`142948-1`	Tellimisel	1.12 €	Indication Plate Complete MAKITA 142948-1 kogus
005	Switch MAKITA 650734-1	`650734-1`	Tellimisel	14.74 €	Switch MAKITA 650734-1 kogus
006	Compression Spring 4 MAKITA 231469-9	`231469-9`	Tellimisel	0.99 €	Compression Spring 4 MAKITA 231469-9 kogus
007	Lock-Off Lever MAKITA 419664-3	`419664-3`	Tellimisel	1.00 €	Lock-Off Lever MAKITA 419664-3 kogus
008	Compression Spring 4 MAKITA 231469-9	`231469-9`	Tellimisel	0.99 €	Compression Spring 4 MAKITA 231469-9 kogus
009	Switch Lever MAKITA 455480-9	`455480-9`	Tellimisel	0.99 €	Switch Lever MAKITA 455480-9 kogus
010	Pan Head Screw M5 × 40 MAKITA 911263-2	`911263-2`	Tellimisel	0.99 €	Pan Head Screw M5 × 40 MAKITA 911263-2 kogus
011	Motor Housing MAKITA 455437-0	`455437-0`	Tellimisel	4.49 €	Motor Housing MAKITA 455437-0 kogus
012	Name Plate MAKITA 850H69-0	`850H69-0`	Tellimisel	2.00 €	Name Plate MAKITA 850H69-0 kogus
013	Stator Assembly - DHS680 MAKITA 632D90-5	`632D90-5`	Tellimisel	185.48 €	Stator Assembly - DHS680 MAKITA 632D90-5 kogus
013-1	Stator Unit MAKITA 629348-7	`629348-7`	Tellimisel	110.84 €	Stator Unit MAKITA 629348-7 kogus
013-2	Stator MAKITA 629B61-9	`629B61-9`	Tellimisel	15.86 €	Stator MAKITA 629B61-9 kogus
014	Terminal MAKITA 644808-8	`644808-8`	Laos	5.00 €	Terminal MAKITA 644808-8 kogus
015	Switch Unit MAKITA 632D81-6	`632D81-6`	Tellimisel	17.82 €	Switch Unit MAKITA 632D81-6 kogus
016	Baffle Plate MAKITA 455440-1	`455440-1`	Tellimisel	0.99 €	Baffle Plate MAKITA 455440-1 kogus
017	Pan Head Screw M5 × 40 MAKITA 911263-2	`911263-2`	Tellimisel	0.99 €	Pan Head Screw M5 × 40 MAKITA 911263-2 kogus
018	Handle Set MAKITA 183A15-9	`183A15-9`	Tellimisel	20.76 €	Handle Set MAKITA 183A15-9 kogus
018-1	Handle Set MAKITA 183A15-9	`183A15-9`	Tellimisel	20.76 €	Handle Set MAKITA 183A15-9 kogus
018-2	Handle Set MAKITA 183A15-9	`183A15-9`	Tellimisel	20.76 €	Handle Set MAKITA 183A15-9 kogus
019	Tapping Screw 4 × 50 MAKITA 266091-3	`266091-3`	Tellimisel	0.99 €	Tapping Screw 4 × 50 MAKITA 266091-3 kogus
019-1	Tapping Screw 4 × 50 mm MAKITA 266467-4	`266467-4`	Tellimisel	0.99 €	Tapping Screw 4 × 50 mm MAKITA 266467-4 kogus
020	Pan Head Screw With Washer M4x16 MAKITA 911128-8	`911128-8`	Laos	0.99 €	Pan Head Screw With Washer M4x16 MAKITA 911128-8 kogus
021	Duct MAKITA 455483-3	`455483-3`	Tellimisel	0.99 €	Duct MAKITA 455483-3 kogus
022	Hook Assembly MAKITA 123269-0	`123269-0`	Tellimisel	8.28 €	Hook Assembly MAKITA 123269-0 kogus
023	Pan Head Screw M5 × 20 MAKITA 911233-1	`911233-1`	Tellimisel	0.99 €	Pan Head Screw M5 × 20 MAKITA 911233-1 kogus
024	Blade Case Assembly MAKITA 142942-3	`142942-3`	Tellimisel	38.44 €	Blade Case Assembly MAKITA 142942-3 kogus
024-1	Blade Case Complete MAKITA 143256-3	`143256-3`	Tellimisel	42.24 €	Blade Case Complete MAKITA 143256-3 kogus
024-3	Blade Case Complete MAKITA 143256-3	`143256-3`	Tellimisel	42.24 €	Blade Case Complete MAKITA 143256-3 kogus
025	Rotor MAKITA 519359-9	`519359-9`	Tellimisel	65.94 €	Rotor MAKITA 519359-9 kogus
025-1	Rotor MAKITA 519359-9	`519359-9`	Tellimisel	65.94 €	Rotor MAKITA 519359-9 kogus
026	Ball Bearing 626DDW MAKITA 210022-4	`210022-4`	Tellimisel	4.21 €	Ball Bearing 626DDW MAKITA 210022-4 kogus
027	Fan 55 MAKITA 240045-8	`240045-8`	Tellimisel	1.68 €	Fan 55 MAKITA 240045-8 kogus
028	Ball Bearing 609 LLB MAKITA 210051-7	`210051-7`	Tellimisel	2.81 €	Ball Bearing 609 LLB MAKITA 210051-7 kogus
029	Shaft Lock MAKITA 346837-4	`346837-4`	Laos	0.99 €	Shaft Lock MAKITA 346837-4 kogus
030	Cap MAKITA 286275-7	`286275-7`	Tellimisel	0.99 €	Cap MAKITA 286275-7 kogus
031	Compression Spring 6 MAKITA 233117-6	`233117-6`	Tellimisel	0.99 €	Compression Spring 6 MAKITA 233117-6 kogus
032	Rubber Sleeve 6 MAKITA 262552-1	`262552-1`	Tellimisel	0.99 €	Rubber Sleeve 6 MAKITA 262552-1 kogus
033	Pan Head Screw M6 × 20 MAKITA 251247-1	`251247-1`	Tellimisel	0.99 €	Pan Head Screw M6 × 20 MAKITA 251247-1 kogus
033-1	Pan Head Screw M6 × 20 MAKITA 265117-8	`265117-8`	Tellimisel	1.00 €	Pan Head Screw M6 × 20 MAKITA 265117-8 kogus
034	Flat Head Square Neck Bolt M6 MAKITA 266194-3	`266194-3`	Tellimisel	1.68 €	Flat Head Square Neck Bolt M6 MAKITA 266194-3 kogus
035	O-ring 42 MAKITA 213565-5	`213565-5`	Tellimisel	0.99 €	O-ring 42 MAKITA 213565-5 kogus
036	Ball Bearing 606ZZ MAKITA 210028-2	`210028-2`	Tellimisel	1.00 €	Ball Bearing 606ZZ MAKITA 210028-2 kogus
036-1	Ball Bearing 606 ZZ MAKITA 210137-7	`210137-7`	Tellimisel	0.99 €	Ball Bearing 606 ZZ MAKITA 210137-7 kogus
037	Retaining Ring S-12 MAKITA 961052-5	`961052-5`	Tellimisel	0.99 €	Retaining Ring S-12 MAKITA 961052-5 kogus
038	Helical Gear 50 MAKITA 227794-4	`227794-4`	Tellimisel	5.48 €	Helical Gear 50 MAKITA 227794-4 kogus
039	Sleeve 12 MAKITA 257349-1	`257349-1`	Tellimisel	1.68 €	Sleeve 12 MAKITA 257349-1 kogus
040	Pan Head Screw M5 × 16 MAKITA 911223-4	`911223-4`	Tellimisel	0.99 €	Pan Head Screw M5 × 16 MAKITA 911223-4 kogus
041	Bearing Box MAKITA 319212-7	`319212-7`	Tellimisel	4.07 €	Bearing Box MAKITA 319212-7 kogus
042	Ball Bearing 6001DDW MAKITA 211131-2	`211131-2`	Tellimisel	8.42 €	Ball Bearing 6001DDW MAKITA 211131-2 kogus
042-1	Ball Bearing 6001 DDW MAKITA 210216-1	`210216-1`	Tellimisel	2.00 €	Ball Bearing 6001 DDW MAKITA 210216-1 kogus
043	Spindle MAKITA 326459-6	`326459-6`	Laos	2.81 €	Spindle MAKITA 326459-6 kogus
044	Bearing Retainer 19 MAKITA 285845-9	`285845-9`	Tellimisel	3.37 €	Bearing Retainer 19 MAKITA 285845-9 kogus
045	Tension Spring 4 MAKITA 231878-2	`231878-2`	Tellimisel	0.99 €	Tension Spring 4 MAKITA 231878-2 kogus
046	Safety Cover MAKITA 319211-9	`319211-9`	Tellimisel	20.63 €	Safety Cover MAKITA 319211-9 kogus
047	Retaining Ring External S-34 MAKITA 961152-1	`961152-1`	Tellimisel	0.99 €	Retaining Ring External S-34 MAKITA 961152-1 kogus
048	Flange Inner 35 MAKITA 224473-5	`224473-5`	Tellimisel	2.24 €	Flange Inner 35 MAKITA 224473-5 kogus
048-1	Inner Flange 35 MAKITA 224593-5	`224593-5`	Laos	1.83 €	Inner Flange 35 MAKITA 224593-5 kogus
049	Outer Flange 35 MAKITA 224409-4	`224409-4`	Laos	1.68 €	Outer Flange 35 MAKITA 224409-4 kogus
050	Hex Socket Head Bolt M6 × 18 MAKITA 266924-2	`266924-2`	Laos	1.00 €	Hex Socket Head Bolt M6 × 18 MAKITA 266924-2 kogus
051	Tapping Screw Ct 4x16 MAKITA 266034-5	`266034-5`	Tellimisel	0.99 €	Tapping Screw Ct 4x16 MAKITA 266034-5 kogus
052	Lever 39 MAKITA 272281-8	`272281-8`	Tellimisel	1.00 €	Lever 39 MAKITA 272281-8 kogus
053	Bow Stop Ring E-8 MAKITA 257982-9	`257982-9`	Tellimisel	0.99 €	Bow Stop Ring E-8 MAKITA 257982-9 kogus
054	Lever 45 MAKITA 272272-9	`272272-9`	Tellimisel	2.81 €	Lever 45 MAKITA 272272-9 kogus
055	Hex Bolt M6 × 20 MAKITA 266735-5	`266735-5`	Tellimisel	1.40 €	Hex Bolt M6 × 20 MAKITA 266735-5 kogus
056	Washer 6 MAKITA 941151-9	`941151-9`	Tellimisel	0.99 €	Washer 6 MAKITA 941151-9 kogus
057	Hex Lock Nut M5 MAKITA 252103-8	`252103-8`	Tellimisel	0.99 €	Hex Lock Nut M5 MAKITA 252103-8 kogus
058	Angular Guide MAKITA 346836-6	`346836-6`	Laos	1.12 €	Angular Guide MAKITA 346836-6 kogus
059	Stopper MAKITA 317986-4	`317986-4`	Tellimisel	4.21 €	Stopper MAKITA 317986-4 kogus
060	O-Ring 9 MAKITA 213062-1	`213062-1`	Tellimisel	0.99 €	O-Ring 9 MAKITA 213062-1 kogus
061	Truss Head Screw J6 MAKITA 265084-7	`265084-7`	Laos	1.68 €	Truss Head Screw J6 MAKITA 265084-7 kogus
062	Shoulder Pin 6 MAKITA 256480-0	`256480-0`	Tellimisel	0.99 €	Shoulder Pin 6 MAKITA 256480-0 kogus
063	Pan Head Screw M5 × 8 MAKITA 911203-0	`911203-0`	Tellimisel	0.99 €	Pan Head Screw M5 × 8 MAKITA 911203-0 kogus
063-1	Pan Head Screw M5 × 10 MAKITA 911208-0	`911208-0`	Tellimisel	0.99 €	Pan Head Screw M5 × 10 MAKITA 911208-0 kogus
064	Top Guide MAKITA 455516-4	`455516-4`	Tellimisel	2.24 €	Top Guide MAKITA 455516-4 kogus
065	Hex Socket Head Set Screw M4 × 6 MAKITA 266318-1	`266318-1`	Tellimisel	0.99 €	Hex Socket Head Set Screw M4 × 6 MAKITA 266318-1 kogus
066	Bevel Guide MAKITA 455517-2	`455517-2`	Tellimisel	1.68 €	Bevel Guide MAKITA 455517-2 kogus
067	Thumb Screw MAKITA 251896-4	`251896-4`	Tellimisel	1.40 €	Thumb Screw MAKITA 251896-4 kogus
068	Compression Spring 6 MAKITA 231007-7	`231007-7`	Tellimisel	0.99 €	Compression Spring 6 MAKITA 231007-7 kogus
069	Flat Washer 7 MAKITA 253058-0	`253058-0`	Laos	0.99 €	Flat Washer 7 MAKITA 253058-0 kogus
070	Shoulder Pin 6 MAKITA 256511-5	`256511-5`	Tellimisel	0.99 €	Shoulder Pin 6 MAKITA 256511-5 kogus
071	Depth Guide MAKITA 346838-2	`346838-2`	Laos	5.00 €	Depth Guide MAKITA 346838-2 kogus
072	Washer 6 MAKITA 941151-9	`941151-9`	Tellimisel	0.99 €	Washer 6 MAKITA 941151-9 kogus
073	Pipe 6 MAKITA 332126-3	`332126-3`	Tellimisel	1.12 €	Pipe 6 MAKITA 332126-3 kogus
074	Washer 6 MAKITA 941151-9	`941151-9`	Tellimisel	0.99 €	Washer 6 MAKITA 941151-9 kogus
075	Hex Nut M6 MAKITA 264103-6	`264103-6`	Tellimisel	0.99 €	Hex Nut M6 MAKITA 264103-6 kogus
076	Lever 45 MAKITA 272272-9	`272272-9`	Tellimisel	2.81 €	Lever 45 MAKITA 272272-9 kogus
077	Bow Stop Ring E-8 MAKITA 257982-9	`257982-9`	Tellimisel	0.99 €	Bow Stop Ring E-8 MAKITA 257982-9 kogus
078	Base MAKITA 319210-1	`319210-1`	Tellimisel	30.87 €	Base MAKITA 319210-1 kogus
078-1	Base MAKITA 312B04-5	`312B04-5`	Laos	29.04 €	Base MAKITA 312B04-5 kogus
079	Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5	`266436-5`	Tellimisel	0.99 €	Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5 kogus
080	Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5	`266436-5`	Tellimisel	0.99 €	Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5 kogus
081	Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5	`266436-5`	Tellimisel	0.99 €	Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5 kogus
082	Thumb Screw MAKITA 251896-4	`251896-4`	Tellimisel	1.40 €	Thumb Screw MAKITA 251896-4 kogus
083	Compression Spring 6 MAKITA 231007-7	`231007-7`	Tellimisel	0.99 €	Compression Spring 6 MAKITA 231007-7 kogus
084	Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5	`266436-5`	Tellimisel	0.99 €	Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5 kogus
085	Flat Washer 6 MAKITA 253077-6	`253077-6`	Tellimisel	0.99 €	Flat Washer 6 MAKITA 253077-6 kogus
086	Controller MAKITA 620K93-3	`620K93-3`	Tellimisel	179.80 €	Controller MAKITA 620K93-3 kogus
087	Pan Head Screw M2 × 6 MAKITA 652119-7	`652119-7`	Laos	0.50 €	Pan Head Screw M2 × 6 MAKITA 652119-7 kogus

Varuosasoov

Ei leia varuosa, mida otsid? Kirjuta meile ja teavitame teid, kui varuosajoonis on lisatud.
