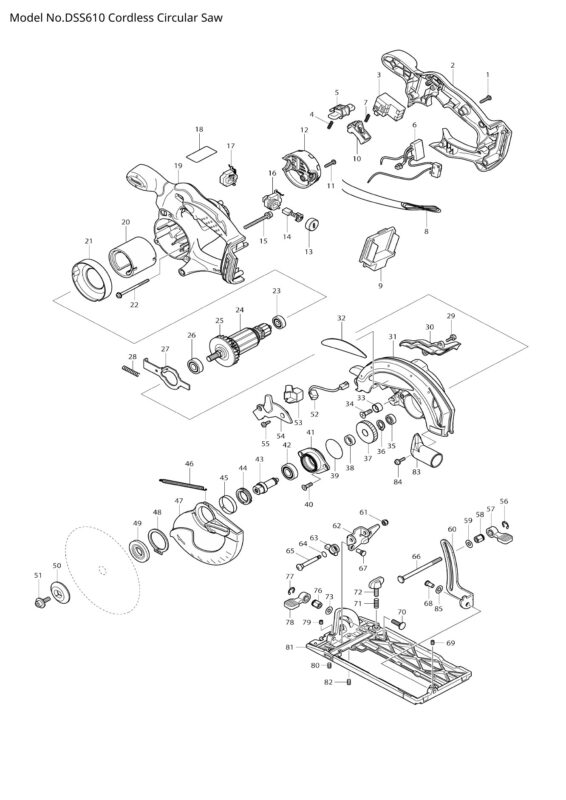

Makita DSS610 varuosad ja varuosajoonised

Näita varuosi (87)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Binding head tapping screw 4X18 MAKITA 265995-6	`265995-6`	Tellimisel	0.99 €	Binding head tapping screw 4X18 MAKITA 265995-6 kogus
001-1	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
002	Handle Cover Complete MAKITA 141470-5	`141470-5`	Tellimisel	11.22 €	Handle Cover Complete MAKITA 141470-5 kogus
003	Switch MAKITA 650631-1	`650631-1`	Laos	19.64 €	Switch MAKITA 650631-1 kogus
004	Compression Spring 4 MAKITA 231469-9	`231469-9`	Tellimisel	0.99 €	Compression Spring 4 MAKITA 231469-9 kogus
005	Lock-Off Lever MAKITA 419322-1	`419322-1`	Laos	1.80 €	Lock-Off Lever MAKITA 419322-1 kogus
006	Power Supply Unit MAKITA 620088-0	`620088-0`	Tellimisel	14.03 €	Power Supply Unit MAKITA 620088-0 kogus
007	Compression Spring 4 MAKITA 231469-9	`231469-9`	Tellimisel	0.99 €	Compression Spring 4 MAKITA 231469-9 kogus
009	Terminal MAKITA 644808-8	`644808-8`	Laos	5.00 €	Terminal MAKITA 644808-8 kogus
010	Switch Lever MAKITA 419176-6	`419176-6`	Laos	2.11 €	Switch Lever MAKITA 419176-6 kogus
011	Binding head tapping screw 4X18 MAKITA 265995-6	`265995-6`	Tellimisel	0.99 €	Binding head tapping screw 4X18 MAKITA 265995-6 kogus
011-1	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
012	Rear Cover MAKITA 419281-9	`419281-9`	Tellimisel	4.21 €	Rear Cover MAKITA 419281-9 kogus
013	Brush Holder Cap MAKITA 643941-3	`643941-3`	Laos	0.99 €	Brush Holder Cap MAKITA 643941-3 kogus
014	Carbon Brush CB-441 MAKITA 194435-6	`194435-6`	Tellimisel	5.61 €	Carbon Brush CB-441 MAKITA 194435-6 kogus
014-1	Carbon Brush CB-441 MAKITA 195022-4	`195022-4`	Laos	5.61 €	Carbon Brush CB-441 MAKITA 195022-4 kogus
015	Pan Head Screw M5 × 40 MAKITA 911263-2	`911263-2`	Tellimisel	0.99 €	Pan Head Screw M5 × 40 MAKITA 911263-2 kogus
016	Brush Holder MAKITA 643882-3	`643882-3`	Tellimisel	4.21 €	Brush Holder MAKITA 643882-3 kogus
017	Brush Holder MAKITA 643883-1	`643883-1`	Tellimisel	4.21 €	Brush Holder MAKITA 643883-1 kogus
019	Motor Housing Complete MAKITA 141471-3	`141471-3`	Tellimisel	19.64 €	Motor Housing Complete MAKITA 141471-3 kogus
019-1	Motor Housing Complete MAKITA 141471-3	`141471-3`	Tellimisel	19.64 €	Motor Housing Complete MAKITA 141471-3 kogus
020	Yoke Unit MAKITA 638107-8	`638107-8`	Tellimisel	19.64 €	Yoke Unit MAKITA 638107-8 kogus
021	Baffle Plate MAKITA 419285-1	`419285-1`	Tellimisel	1.68 €	Baffle Plate MAKITA 419285-1 kogus
022	Tapping Screw 4 × 65 MAKITA 266292-3	`266292-3`	Tellimisel	1.12 €	Tapping Screw 4 × 65 MAKITA 266292-3 kogus
023	Ball Bearing 627 DDW MAKITA 210023-2	`210023-2`	Tellimisel	2.81 €	Ball Bearing 627 DDW MAKITA 210023-2 kogus
024	Armature Assembly MAKITA 519173-3	`519173-3`	Tellimisel	30.87 €	Armature Assembly MAKITA 519173-3 kogus
024-1	Armature Assembly MAKITA 510585-3	`510585-3`	Tellimisel	23.52 €	Armature Assembly MAKITA 510585-3 kogus
025	Fan 55 - JR181D MAKITA 241869-5	`241869-5`	Tellimisel	2.81 €	Fan 55 - JR181D MAKITA 241869-5 kogus
026	Ball Bearing 6000LLB MAKITA 211061-7	`211061-7`	Tellimisel	2.81 €	Ball Bearing 6000LLB MAKITA 211061-7 kogus
027	Shaft Lock MAKITA 346059-6	`346059-6`	Tellimisel	2.81 €	Shaft Lock MAKITA 346059-6 kogus
028	Compression Spring 5 MAKITA 233092-6	`233092-6`	Tellimisel	0.99 €	Compression Spring 5 MAKITA 233092-6 kogus
029	Hex Bolt M4 × 12 MAKITA 911118-1	`911118-1`	Tellimisel	0.99 €	Hex Bolt M4 × 12 MAKITA 911118-1 kogus
030	Blower Nozzle MAKITA 419284-3	`419284-3`	Tellimisel	2.39 €	Blower Nozzle MAKITA 419284-3 kogus
031	Blade Case Set MAKITA 188045-9	`188045-9`	Tellimisel	22.45 €	Blade Case Set MAKITA 188045-9 kogus
032	Logo Plate MAKITA 819217-2	`819217-2`	Tellimisel	6.32 €	Logo Plate MAKITA 819217-2 kogus
033	Rubber Ring 6 MAKITA 262049-0	`262049-0`	Tellimisel	0.99 €	Rubber Ring 6 MAKITA 262049-0 kogus
034	Countersunk Head Screw M6 MAKITA 251368-9	`251368-9`	Tellimisel	0.99 €	Countersunk Head Screw M6 MAKITA 251368-9 kogus
035	Ball Bearing 606ZZ MAKITA 210028-2	`210028-2`	Tellimisel	1.00 €	Ball Bearing 606ZZ MAKITA 210028-2 kogus
036	Retaining Ring S-12 MAKITA 961052-5	`961052-5`	Tellimisel	0.99 €	Retaining Ring S-12 MAKITA 961052-5 kogus
037	Spur Gear 52 MAKITA 227156-6	`227156-6`	Tellimisel	11.22 €	Spur Gear 52 MAKITA 227156-6 kogus
038	Ring 12 MAKITA 257173-2	`257173-2`	Tellimisel	0.99 €	Ring 12 MAKITA 257173-2 kogus
039	O-Ring 39 MAKITA 213512-6	`213512-6`	Tellimisel	1.40 €	O-Ring 39 MAKITA 213512-6 kogus
040	Countersunk Head Screw M5 × 16 MAKITA 265034-2	`265034-2`	Tellimisel	0.99 €	Countersunk Head Screw M5 × 16 MAKITA 265034-2 kogus
041	Bearing Box MAKITA 318009-1	`318009-1`	Tellimisel	4.21 €	Bearing Box MAKITA 318009-1 kogus
042	Ball Bearing 6001DDW MAKITA 211131-2	`211131-2`	Tellimisel	8.42 €	Ball Bearing 6001DDW MAKITA 211131-2 kogus
042-1	Ball Bearing 6001 DDW MAKITA 210216-1	`210216-1`	Tellimisel	2.00 €	Ball Bearing 6001 DDW MAKITA 210216-1 kogus
043	Spindle MAKITA 324626-7	`324626-7`	Tellimisel	2.81 €	Spindle MAKITA 324626-7 kogus
044	Bearing Retainer 19 MAKITA 285845-9	`285845-9`	Tellimisel	3.37 €	Bearing Retainer 19 MAKITA 285845-9 kogus
045	Thickness Ring MAKITA 345469-4	`345469-4`	Tellimisel	1.68 €	Thickness Ring MAKITA 345469-4 kogus
046	Tension Spring 3 MAKITA 231821-1	`231821-1`	Laos	2.81 €	Tension Spring 3 MAKITA 231821-1 kogus
047	Safety Cover MAKITA 419286-9	`419286-9`	Tellimisel	5.61 €	Safety Cover MAKITA 419286-9 kogus
048	Retaining Ring External S-34 MAKITA 961152-1	`961152-1`	Tellimisel	0.99 €	Retaining Ring External S-34 MAKITA 961152-1 kogus
049	Flange Inner 40 - 5007NB MAKITA 224397-5	`224397-5`	Tellimisel	2.81 €	Flange Inner 40 - 5007NB MAKITA 224397-5 kogus
050	Flange Outer 40 - LS0714 MAKITA 224282-2	`224282-2`	Tellimisel	4.21 €	Flange Outer 40 - LS0714 MAKITA 224282-2 kogus
051	Hex Socket Head Bolt M6 × 20N MAKITA 266133-3	`266133-3`	Laos	2.00 €	Hex Socket Head Bolt M6 × 20N MAKITA 266133-3 kogus
052	LED Circuit MAKITA 631694-6	`631694-6`	Tellimisel	25.25 €	LED Circuit MAKITA 631694-6 kogus
053	Connector Box MAKITA 419341-7	`419341-7`	Tellimisel	1.40 €	Connector Box MAKITA 419341-7 kogus
054	Light Cover MAKITA 419282-7	`419282-7`	Tellimisel	2.39 €	Light Cover MAKITA 419282-7 kogus
055	Tapping Screw CT 4 × 12 MAKITA 266026-4	`266026-4`	Tellimisel	0.99 €	Tapping Screw CT 4 × 12 MAKITA 266026-4 kogus
056	Stop Ring E-8 MAKITA 961014-3	`961014-3`	Tellimisel	0.99 €	Stop Ring E-8 MAKITA 961014-3 kogus
057	Lever 40 MAKITA 272229-0	`272229-0`	Tellimisel	2.81 €	Lever 40 MAKITA 272229-0 kogus
058	Hex Nut M6 MAKITA 252158-3	`252158-3`	Tellimisel	4.21 €	Hex Nut M6 MAKITA 252158-3 kogus
059	Washer 6 MAKITA 941151-9	`941151-9`	Tellimisel	0.99 €	Washer 6 MAKITA 941151-9 kogus
060	Depth Guide MAKITA 345658-1	`345658-1`	Tellimisel	2.81 €	Depth Guide MAKITA 345658-1 kogus
061	Hex Lock Nut M5 MAKITA 252103-8	`252103-8`	Tellimisel	0.99 €	Hex Lock Nut M5 MAKITA 252103-8 kogus
062	Angular Guide MAKITA 345657-3	`345657-3`	Tellimisel	4.21 €	Angular Guide MAKITA 345657-3 kogus
063	Stopper MAKITA 317986-4	`317986-4`	Tellimisel	4.21 €	Stopper MAKITA 317986-4 kogus
064	O-Ring 9 MAKITA 213062-1	`213062-1`	Tellimisel	0.99 €	O-Ring 9 MAKITA 213062-1 kogus
065	Truss Head Screw J6 MAKITA 265084-7	`265084-7`	Laos	1.68 €	Truss Head Screw J6 MAKITA 265084-7 kogus
066	Flat Head Square Neck Bolt M6 MAKITA 266194-3	`266194-3`	Tellimisel	1.68 €	Flat Head Square Neck Bolt M6 MAKITA 266194-3 kogus
067	Shoulder Pin 6 MAKITA 256480-0	`256480-0`	Tellimisel	0.99 €	Shoulder Pin 6 MAKITA 256480-0 kogus
068	Shoulder Pin 6 MAKITA 256480-0	`256480-0`	Tellimisel	0.99 €	Shoulder Pin 6 MAKITA 256480-0 kogus
069	Hex Socket Set Screw M5 × 6 MAKITA 266264-8	`266264-8`	Tellimisel	0.99 €	Hex Socket Set Screw M5 × 6 MAKITA 266264-8 kogus
070	Square Neck Bolt M6 × 20 MAKITA 251919-8	`251919-8`	Tellimisel	0.99 €	Square Neck Bolt M6 × 20 MAKITA 251919-8 kogus
071	Compression Spring 6 MAKITA 231007-7	`231007-7`	Tellimisel	0.99 €	Compression Spring 6 MAKITA 231007-7 kogus
072	Thumb Screw MAKITA 251896-4	`251896-4`	Tellimisel	1.40 €	Thumb Screw MAKITA 251896-4 kogus
073	Washer 6 MAKITA 941151-9	`941151-9`	Tellimisel	0.99 €	Washer 6 MAKITA 941151-9 kogus
076	Hex Nut M6 MAKITA 252133-9	`252133-9`	Tellimisel	2.81 €	Hex Nut M6 MAKITA 252133-9 kogus
077	Stop Ring E-8 MAKITA 961014-3	`961014-3`	Tellimisel	0.99 €	Stop Ring E-8 MAKITA 961014-3 kogus
078	Lever MAKITA 272251-7	`272251-7`	Tellimisel	1.12 €	Lever MAKITA 272251-7 kogus
079	Hex Socket Set Screw M5 × 6 MAKITA 266264-8	`266264-8`	Tellimisel	0.99 €	Hex Socket Set Screw M5 × 6 MAKITA 266264-8 kogus
080	Hex Socket Set Screw M5 × 8 MAKITA 266229-0	`266229-0`	Tellimisel	0.99 €	Hex Socket Set Screw M5 × 8 MAKITA 266229-0 kogus
081	Base Assembly MAKITA 154832-8	`154832-8`	Tellimisel	28.06 €	Base Assembly MAKITA 154832-8 kogus
082	Hex Socket Set Screw M5 × 8 MAKITA 266229-0	`266229-0`	Tellimisel	0.99 €	Hex Socket Set Screw M5 × 8 MAKITA 266229-0 kogus
083	TOLMUIMEJA LIITMIK DSS610-LE	`419283-5`	Tellimisel	2.53 €	Tellimisel
084	Hex Bolt M4 × 12 MAKITA 911118-1	`911118-1`	Tellimisel	0.99 €	Hex Bolt M4 × 12 MAKITA 911118-1 kogus
085	Flat Washer MAKITA 253186-1	`253186-1`	Tellimisel	0.99 €	Flat Washer MAKITA 253186-1 kogus
