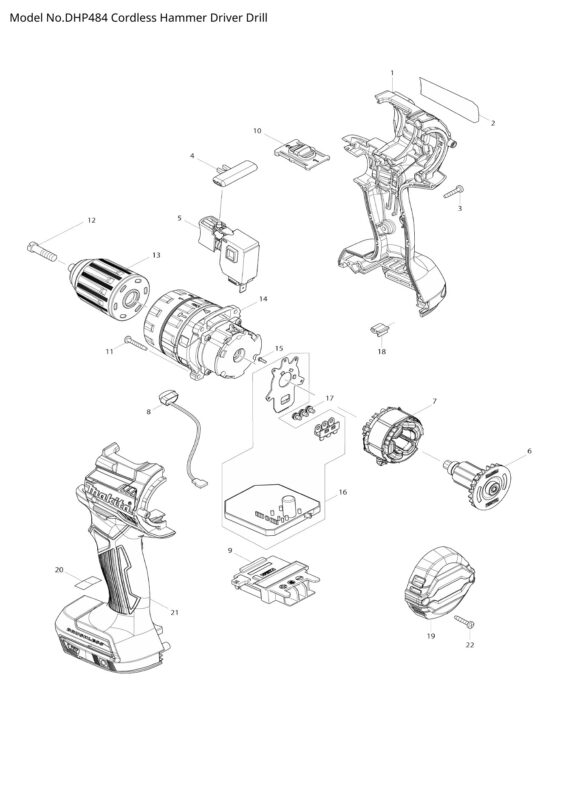

Makita DHP484 varuosad ja varuosajoonised
Näita varuosi (32)Peida varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Toode pole süsteemis | 183E71-3 | – | – | – |
| 001-1 | Housing Assembly MAKITA 183L79-9 | 183L79-9 | Tellimisel | 14.03 € | |
| 002 | Name Plate MAKITA 852L96-7 | 852L96-7 | Tellimisel | 3.00 € | |
| 003 | Tapping Screw PT 3 × 16 mm MAKITA 266429-2 | 266429-2 | Tellimisel | 0.99 € | |
| 003-1 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 004 | Forward/Reverse Change Lever MAKITA 419041-9 | 419041-9 | Laos | 1.12 € | |
| 005 | Switch MAKITA 650710-5 | 650710-5 | Tellimisel | 17.96 € | |
| 005-1 | Switch MAKITA 650006-4 | 650006-4 | Laos | 17.96 € | |
| 006 | Rotor MAKITA 619406-7 | 619406-7 | Tellimisel | 24.41 € | |
| 006-1 | Rotor MAKITA 619406-7 | 619406-7 | Tellimisel | 24.41 € | |
| 007 | Stator 18 V MAKITA 629225-3 | 629225-3 | Tellimisel | 11.65 € | |
| 008 | LED Circuit MAKITA 620549-0 | 620549-0 | Tellimisel | 4.07 € | |
| 009 | Terminal MAKITA 643874-2 | 643874-2 | Tellimisel | 3.93 € | |
| 010 | Speed Change Lever Assembly MAKITA 123738-1 | 123738-1 | Laos | 2.24 € | |
| 011 | Tapping Screw 3 × 20 MAKITA 251497-8 | 251497-8 | Tellimisel | 0.99 € | |
| 012 | Flat Head Screw M6 × 22 MAKITA 251468-5 | 251468-5 | Laos | 0.99 € | |
| 013 | Keyless drill chuck 13 MAKITA 766027-7 | 766027-7 | Tellimisel | 20.59 € | |
| 013-1 | Keyless drill chuck 13 MAKITA 763268-6 | 763268-6 | Tellimisel | 17.98 € | |
| 014 | Gear Assembly MAKITA 123736-5 | 123736-5 | Tellimisel | 79.41 € | |
| 014-1 | Gear Assembly MAKITA 123953-7 | 123953-7 | Tellimisel | 80.96 € | |
| 014-2 | Gear Assembly MAKITA 126729-1 | 126729-1 | Tellimisel | 77.51 € | |
| 014-3 | Gear Assembly MAKITA 127499-5 | 127499-5 | Tellimisel | 51.96 € | |
| 015 | Tapping Screw 2 × 6 mm MAKITA 266490-9 | 266490-9 | Tellimisel | 0.99 € | |
| 015-1 | Tapping Screw 2 × 6 MAKITA 265C47-1 | 265C47-1 | Tellimisel | 0.99 € | |
| 016 | Controller MAKITA 620548-2 | 620548-2 | Tellimisel | 90.63 € | |
| 017 | Flat head screw M3X6 MAKITA 652069-6 | 652069-6 | Tellimisel | 0.99 € | |
| 018 | Cushion MAKITA 424517-3 | 424517-3 | Tellimisel | 0.99 € | |
| 019 | Rear Cover MAKITA 456967-4 | 456967-4 | Tellimisel | 1.83 € | |
| 021 | Toode pole süsteemis | 183E71-3 | – | – | – |
| 021-1 | Housing Assembly MAKITA 183L79-9 | 183L79-9 | Tellimisel | 14.03 € | |
| 022 | Tapping Screw PT 3 × 16 mm MAKITA 266429-2 | 266429-2 | Tellimisel | 0.99 € | |
| 022-1 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € |
Varuosasoov
Ei leia varuosa, mida otsid? Kirjuta meile ja teavitame teid, kui varuosajoonis on lisatud.
