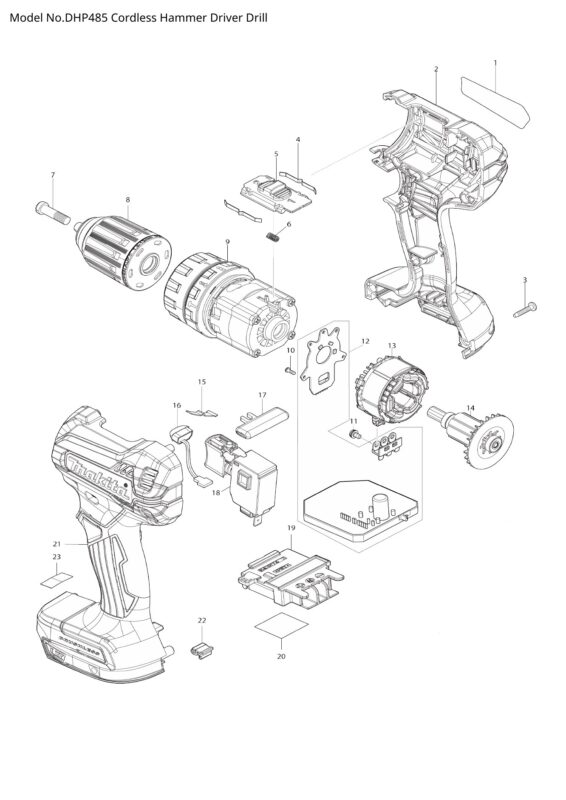

Makita DHP485 varuosad ja varuosajoonised
Näita varuosi (31)Peida varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Name Plate MAKITA 854U05-6 | 854U05-6 | Tellimisel | 1.00 € | |
| 002 | Housing Set MAKITA 183K32-9 | 183K32-9 | Tellimisel | 16.84 € | |
| 002-1 | Housing Set MAKITA 183K32-9 | 183K32-9 | Tellimisel | 16.84 € | |
| 003 | Tapping Screw PT 3 × 16 mm MAKITA 266429-2 | 266429-2 | Tellimisel | 0.99 € | |
| 003-1 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 004 | Leaf Spring MAKITA 232220-0 | 232220-0 | Tellimisel | 0.99 € | |
| 005 | Speed Change Lever MAKITA 458671-1 | 458671-1 | Tellimisel | 2.00 € | |
| 006 | Compression Spring 4 MAKITA 233438-6 | 233438-6 | Tellimisel | 0.99 € | |
| 007 | Flat Head Screw M6 × 22 MAKITA 251468-5 | 251468-5 | Laos | 0.99 € | |
| 008 | Keyless drill chuck 13 MAKITA 766027-7 | 766027-7 | Tellimisel | 20.59 € | |
| 009 | Gear Assembly MAKITA 126961-7 | 126961-7 | Tellimisel | 50.51 € | |
| 010 | Tapping Screw 2 × 6 mm MAKITA 266490-9 | 266490-9 | Tellimisel | 0.99 € | |
| 010-1 | Tapping Screw 2 × 6 MAKITA 265C47-1 | 265C47-1 | Tellimisel | 0.99 € | |
| 011 | Flat head screw M3X6 MAKITA 652069-6 | 652069-6 | Tellimisel | 0.99 € | |
| 012 | Controller MAKITA 620964-8 | 620964-8 | Tellimisel | 77.17 € | |
| 012-1 | Controller MAKITA 620964-8 | 620964-8 | Tellimisel | 77.17 € | |
| 012-2 | Controller MAKITA 620964-8 | 620964-8 | Tellimisel | 77.17 € | |
| 012-4 | Controller MAKITA 620964-8 | 620964-8 | Tellimisel | 77.17 € | |
| 012-4E | Controller MAKITA 620964-8 | 620964-8 | Tellimisel | 77.17 € | |
| 013 | Stator 18 V MAKITA 629372-0 | 629372-0 | Tellimisel | 11.22 € | |
| 014 | Rotor MAKITA 619533-0 | 619533-0 | Tellimisel | 23.85 € | |
| 015 | Leaf Spring MAKITA 232182-2 | 232182-2 | Tellimisel | 0.99 € | |
| 016 | LED Circuit MAKITA 620549-0 | 620549-0 | Tellimisel | 4.07 € | |
| 017 | Forward/Reverse Change Lever MAKITA 419041-9 | 419041-9 | Laos | 1.12 € | |
| 018 | Switch MAKITA 650710-5 | 650710-5 | Tellimisel | 17.96 € | |
| 018-1 | Switch MAKITA 650006-4 | 650006-4 | Laos | 17.96 € | |
| 019 | Terminal MAKITA 643874-2 | 643874-2 | Tellimisel | 3.93 € | |
| 020 | Serial Number Label DHP485 MAKITA 854U11-1 | 854U11-1 | Tellimisel | 3.00 € | |
| 021 | Housing Set MAKITA 183K32-9 | 183K32-9 | Tellimisel | 16.84 € | |
| 021-1 | Housing Set MAKITA 183K32-9 | 183K32-9 | Tellimisel | 16.84 € | |
| 022 | Cushion MAKITA 424517-3 | 424517-3 | Tellimisel | 0.99 € |
