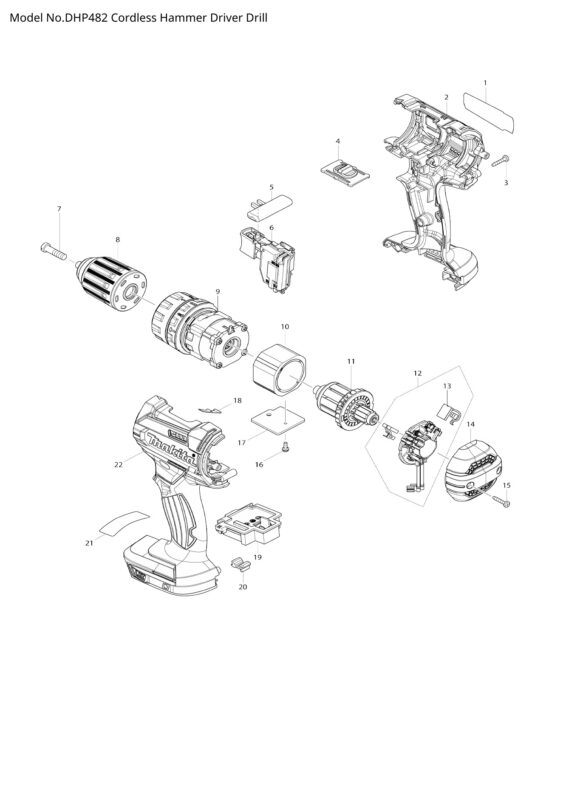

Makita DHP482 varuosad ja varuosajoonised

Näita varuosi (30)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Name Plate DHP482 MAKITA 851E32-8	`851E32-8`	Tellimisel	3.00 €	Name Plate DHP482 MAKITA 851E32-8 kogus
002	Housing Set MAKITA 183B65-0	`183B65-0`	Tellimisel	12.63 €	Housing Set MAKITA 183B65-0 kogus
003	Tapping Screw PT 3 × 16 mm MAKITA 266429-2	`266429-2`	Tellimisel	0.99 €	Tapping Screw PT 3 × 16 mm MAKITA 266429-2 kogus
003-1	Tapping Screw PT 3 × 16 MAKITA 266130-9	`266130-9`	Laos	0.99 €	Tapping Screw PT 3 × 16 MAKITA 266130-9 kogus
003-1H	Tapping Screw PT 3 × 16 MAKITA 266130-9	`266130-9`	Laos	0.99 €	Tapping Screw PT 3 × 16 MAKITA 266130-9 kogus
004	Speed Change Lever Assembly MAKITA 123442-2	`123442-2`	Tellimisel	0.99 €	Speed Change Lever Assembly MAKITA 123442-2 kogus
005	Forward/Reverse Change Lever MAKITA 419041-9	`419041-9`	Laos	1.12 €	Forward/Reverse Change Lever MAKITA 419041-9 kogus
006	Switch Unit MAKITA 632F27-4	`632F27-4`	Laos	35.08 €	Switch Unit MAKITA 632F27-4 kogus
007	Flat Head Screw M6 × 22 MAKITA 251468-5	`251468-5`	Laos	0.99 €	Flat Head Screw M6 × 22 MAKITA 251468-5 kogus
008	Keyless drill chuck 13 MAKITA 766027-7	`766027-7`	Tellimisel	20.59 €	Keyless drill chuck 13 MAKITA 766027-7 kogus
009	Gear Assembly MAKITA 123443-0	`123443-0`	Tellimisel	44.62 €	Gear Assembly MAKITA 123443-0 kogus
010	Yoke Assembly MAKITA 632F32-1	`632F32-1`	Tellimisel	11.79 €	Yoke Assembly MAKITA 632F32-1 kogus
010-1	Yoke Unit MAKITA 632J70-7	`632J70-7`	Laos	14.64 €	Yoke Unit MAKITA 632J70-7 kogus
011	Toode pole süsteemis	`619380-9`	–	–	–
011-1	Armature MAKITA 619583-5	`619583-5`	Laos	25.25 €	Armature MAKITA 619583-5 kogus
011-1H	Armature MAKITA 619583-5	`619583-5`	Laos	25.25 €	Armature MAKITA 619583-5 kogus
012	Brush Holder Complete MAKITA 632F21-6	`632F21-6`	Laos	19.23 €	Brush Holder Complete MAKITA 632F21-6 kogus
013	Carbon Brush Set CB-440 2 Pcs MAKITA 194427-5	`194427-5`	Tellimisel	4.00 €	Carbon Brush Set CB-440 2 Pcs MAKITA 194427-5 kogus
013-1	Carbon Brush CB-440 MAKITA 195021-6	`195021-6`	Laos	4.00 €	Carbon Brush CB-440 MAKITA 195021-6 kogus
014	Rear Cover Blue MAKITA 456099-7	`456099-7`	Laos	2.39 €	Rear Cover Blue MAKITA 456099-7 kogus
015	Tapping Screw PT 3 × 16 mm MAKITA 266429-2	`266429-2`	Tellimisel	0.99 €	Tapping Screw PT 3 × 16 mm MAKITA 266429-2 kogus
015-1	Tapping Screw PT 3 × 16 MAKITA 266130-9	`266130-9`	Laos	0.99 €	Tapping Screw PT 3 × 16 MAKITA 266130-9 kogus
015-1H	Tapping Screw PT 3 × 16 MAKITA 266130-9	`266130-9`	Laos	0.99 €	Tapping Screw PT 3 × 16 MAKITA 266130-9 kogus
016	Pan Head Screw M3 × 8 MAKITA 911006-2	`911006-2`	Tellimisel	0.99 €	Pan Head Screw M3 × 8 MAKITA 911006-2 kogus
017	Heat Sink MAKITA 689070-8	`689070-8`	Tellimisel	2.81 €	Heat Sink MAKITA 689070-8 kogus
018	Leaf Spring MAKITA 232182-2	`232182-2`	Tellimisel	0.99 €	Leaf Spring MAKITA 232182-2 kogus
019	Terminal MAKITA 644808-8	`644808-8`	Laos	5.00 €	Terminal MAKITA 644808-8 kogus
020	Cushion MAKITA 424476-1	`424476-1`	Tellimisel	0.99 €	Cushion MAKITA 424476-1 kogus
022	Housing Set MAKITA 183B65-0	`183B65-0`	Tellimisel	12.63 €	Housing Set MAKITA 183B65-0 kogus
023H	Serial Number Label - DHP482 MAKITA 857L26-3	`857L26-3`	Tellimisel	3.00 €	Serial Number Label - DHP482 MAKITA 857L26-3 kogus

Varuosasoov

Ei leia varuosa, mida otsid? Kirjuta meile ja teavitame teid, kui varuosajoonis on lisatud.
