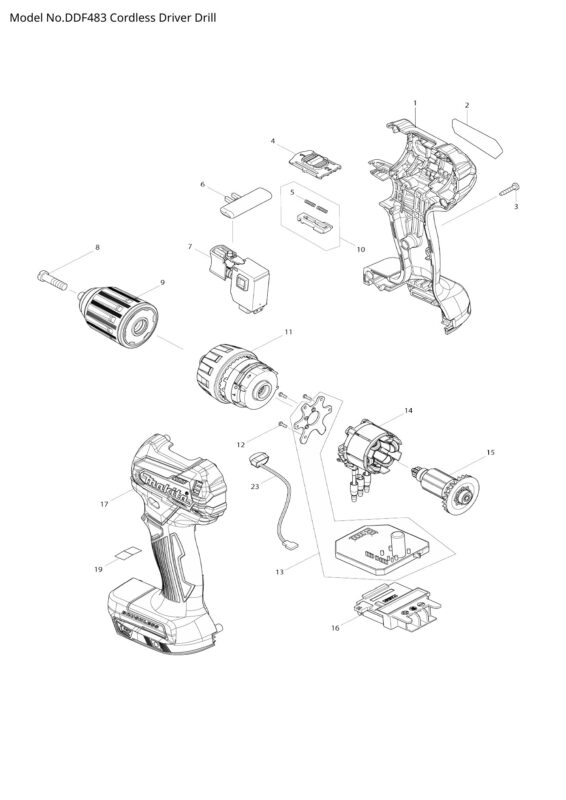

Makita DDF483 varuosad ja varuosajoonised
Näita varuosi (23)Peida varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Housing Set Assembly MAKITA 183E19-5 | 183E19-5 | Tellimisel | 16.14 € | |
| 002 | Name Plate DDF483 MAKITA 852L71-3 | 852L71-3 | Tellimisel | 3.00 € | |
| 003 | Tapping Screw PT 3 × 16 mm MAKITA 266429-2 | 266429-2 | Tellimisel | 0.99 € | |
| 003-1 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 004 | Speed Change Lever MAKITA 457020-9 | 457020-9 | Tellimisel | 1.00 € | |
| 004-1 | Speed Change Lever MAKITA 458382-8 | 458382-8 | Tellimisel | 1.12 € | |
| 005 | Compression Spring MAKITA 233025-1 | 233025-1 | Laos | 0.99 € | |
| 006 | Forward/Reverse Change Lever MAKITA 419041-9 | 419041-9 | Laos | 1.12 € | |
| 007 | Switch MAKITA 650689-0 | 650689-0 | Tellimisel | 16.84 € | |
| 008 | Flat Head Screw M6 × 22 MAKITA 251468-5 | 251468-5 | Laos | 0.99 € | |
| 009 | Toode pole süsteemis | 763241-6 | – | – | – |
| 010 | Change Lever Assembly MAKITA 123587-6 | 123587-6 | Tellimisel | 1.00 € | |
| 011 | Gear Assembly MAKITA 123868-8 | 123868-8 | Tellimisel | 25.53 € | |
| 011-1 | Gear Assembly MAKITA 123868-8 | 123868-8 | Tellimisel | 25.53 € | |
| 012 | Tapping Screw 2 × 6 mm MAKITA 266490-9 | 266490-9 | Tellimisel | 0.99 € | |
| 012-1 | Tapping Screw 2 × 6 MAKITA 265C47-1 | 265C47-1 | Tellimisel | 0.99 € | |
| 013 | Controller MAKITA 620555-5 | 620555-5 | Tellimisel | 71.98 € | |
| 014 | Stator MAKITA 629228-7 | 629228-7 | Tellimisel | 21.61 € | |
| 015 | Rotor MAKITA 619410-6 | 619410-6 | Tellimisel | 23.44 € | |
| 015-1 | Rotor MAKITA 619410-6 | 619410-6 | Tellimisel | 23.44 € | |
| 016 | Terminal MAKITA 643874-2 | 643874-2 | Tellimisel | 3.93 € | |
| 017 | Housing Set Assembly MAKITA 183E19-5 | 183E19-5 | Tellimisel | 16.14 € | |
| 023 | LED Circuit MAKITA 620549-0 | 620549-0 | Tellimisel | 4.07 € |
