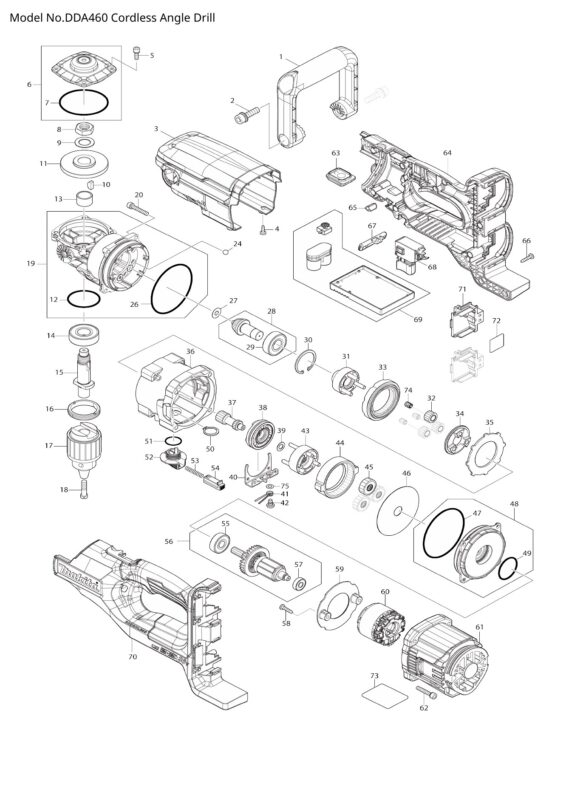

Makita DDA460 varuosad ja varuosajoonised

Näita varuosi (70)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Front Grip MAKITA 458431-1	`458431-1`	Tellimisel	7.86 €	Front Grip MAKITA 458431-1 kogus
002	Hex Socket Head Bolt M8 × 30 MAKITA 922453-2	`922453-2`	Laos	0.99 €	Hex Socket Head Bolt M8 × 30 MAKITA 922453-2 kogus
003	Top Cover MAKITA 458430-3	`458430-3`	Tellimisel	10.81 €	Top Cover MAKITA 458430-3 kogus
004	Tapping Screw CT 4 × 12 MAKITA 266026-4	`266026-4`	Tellimisel	0.99 €	Tapping Screw CT 4 × 12 MAKITA 266026-4 kogus
005	Hex Socket Head Bolt M5 MAKITA 266086-6	`266086-6`	Tellimisel	0.99 €	Hex Socket Head Bolt M5 MAKITA 266086-6 kogus
006	Switch MAKITA 140A21-7	`140A21-7`	Tellimisel	15.30 €	Switch MAKITA 140A21-7 kogus
007	O-Ring 63 MAKITA 213709-7	`213709-7`	Tellimisel	1.12 €	O-Ring 63 MAKITA 213709-7 kogus
008	Spare Part MAKITA 252182-6	`252182-6`	Tellimisel	3.00 €	Spare Part MAKITA 252182-6 kogus
009	Flat Washer 16 MAKITA 253771-0	`253771-0`	Tellimisel	1.00 €	Flat Washer 16 MAKITA 253771-0 kogus
010	Woodruff Key 5 MAKITA 254032-1	`254032-1`	Tellimisel	1.00 €	Woodruff Key 5 MAKITA 254032-1 kogus
011	Unknown Spare Part MAKITA 227416-6	`227416-6`	Tellimisel	31.00 €	Unknown Spare Part MAKITA 227416-6 kogus
012	O-Ring 40 MAKITA 213507-9	`213507-9`	Tellimisel	0.99 €	O-Ring 40 MAKITA 213507-9 kogus
013	Sleeve 17 MAKITA 257440-5	`257440-5`	Tellimisel	1.26 €	Sleeve 17 MAKITA 257440-5 kogus
014	Ball Bearing 6203DDW MAKITA 211278-2	`211278-2`	Tellimisel	11.22 €	Ball Bearing 6203DDW MAKITA 211278-2 kogus
015	Spindle MAKITA 327106-2	`327106-2`	Tellimisel	48.82 €	Spindle MAKITA 327106-2 kogus
016	Bearing Retainer 36 MAKITA 285842-5	`285842-5`	Tellimisel	4.21 €	Bearing Retainer 36 MAKITA 285842-5 kogus
017	Drill Chuck S13 MAKITA 763250-5	`763250-5`	Tellimisel	46.02 €	Drill Chuck S13 MAKITA 763250-5 kogus
018	Flat Head Screw M6 MAKITA 251463-5	`251463-5`	Tellimisel	2.81 €	Flat Head Screw M6 MAKITA 251463-5 kogus
019	Gear Housing Complete MAKITA 140A22-5	`140A22-5`	Tellimisel	57.95 €	Gear Housing Complete MAKITA 140A22-5 kogus
020	Spare Part MAKITA 265695-8	`265695-8`	Tellimisel	2.00 €	Spare Part MAKITA 265695-8 kogus
024	Steel Ball 7.0 MAKITA 216022-2	`216022-2`	Laos	0.99 €	Steel Ball 7.0 MAKITA 216022-2 kogus
026	O-Ring 75 MAKITA 213755-0	`213755-0`	Tellimisel	1.12 €	O-Ring 75 MAKITA 213755-0 kogus
027	Flat Washer 6 MAKITA 253411-0	`253411-0`	Tellimisel	0.99 €	Flat Washer 6 MAKITA 253411-0 kogus
028	Spiral Bevel Gear 13 Complete MAKITA 140A23-3	`140A23-3`	Tellimisel	40.83 €	Spiral Bevel Gear 13 Complete MAKITA 140A23-3 kogus
029	Ball Bearing 6202LLB MAKITA 211206-7	`211206-7`	Tellimisel	8.42 €	Ball Bearing 6202LLB MAKITA 211206-7 kogus
030	Retaining Ring MAKITA 962153-2	`962153-2`	Tellimisel	1.00 €	Retaining Ring MAKITA 962153-2 kogus
031	Carrier A Complete MAKITA 140A13-6	`140A13-6`	Tellimisel	25.82 €	Carrier A Complete MAKITA 140A13-6 kogus
032	Spur Gear 13 MAKITA 226176-7	`226176-7`	Tellimisel	0.99 €	Spur Gear 13 MAKITA 226176-7 kogus
033	Internal Gear 40 MAKITA 226177-5	`226177-5`	Tellimisel	6.88 €	Internal Gear 40 MAKITA 226177-5 kogus
034	Cam MAKITA 223188-1	`223188-1`	Tellimisel	7.86 €	Cam MAKITA 223188-1 kogus
035	Washer 65 MAKITA 347365-2	`347365-2`	Tellimisel	1.40 €	Washer 65 MAKITA 347365-2 kogus
036	Gear Case Complete MAKITA 140A16-0	`140A16-0`	Tellimisel	34.38 €	Gear Case Complete MAKITA 140A16-0 kogus
037	Spur Gear 14 MAKITA 226175-9	`226175-9`	Tellimisel	6.45 €	Spur Gear 14 MAKITA 226175-9 kogus
038	Change Ring MAKITA 310876-0	`310876-0`	Tellimisel	9.97 €	Change Ring MAKITA 310876-0 kogus
039	Flat Washer 8 MAKITA 253215-0	`253215-0`	Tellimisel	2.11 €	Flat Washer 8 MAKITA 253215-0 kogus
040	Change Guide MAKITA 347366-0	`347366-0`	Tellimisel	1.26 €	Change Guide MAKITA 347366-0 kogus
041	Torsion Spring MAKITA 231657-8	`231657-8`	Tellimisel	2.00 €	Torsion Spring MAKITA 231657-8 kogus
042	Pan Head Screw M5 MAKITA 265628-3	`265628-3`	Tellimisel	0.99 €	Pan Head Screw M5 MAKITA 265628-3 kogus
043	Carrier B Complete MAKITA 140A14-4	`140A14-4`	Tellimisel	22.88 €	Carrier B Complete MAKITA 140A14-4 kogus
044	Internal Gear 71 MAKITA 226174-1	`226174-1`	Tellimisel	5.89 €	Internal Gear 71 MAKITA 226174-1 kogus
045	Spur Gear 29 Complete MAKITA 140A12-8	`140A12-8`	Tellimisel	7.44 €	Spur Gear 29 Complete MAKITA 140A12-8 kogus
046	Flat Washer 15 MAKITA 253412-8	`253412-8`	Tellimisel	1.00 €	Flat Washer 15 MAKITA 253412-8 kogus
047	O-Ring 75 MAKITA 213755-0	`213755-0`	Tellimisel	1.12 €	O-Ring 75 MAKITA 213755-0 kogus
048	Motor Bracket Complete MAKITA 140A20-9	`140A20-9`	Tellimisel	13.05 €	Motor Bracket Complete MAKITA 140A20-9 kogus
049	O-Ring 30 MAKITA 213406-5	`213406-5`	Tellimisel	0.99 €	O-Ring 30 MAKITA 213406-5 kogus
050	Retaining Ring External S-18 MAKITA 961058-3	`961058-3`	Tellimisel	0.99 €	Retaining Ring External S-18 MAKITA 961058-3 kogus
051	O-Ring 17 MAKITA 213265-7	`213265-7`	Tellimisel	1.00 €	O-Ring 17 MAKITA 213265-7 kogus
052	Change Lever MAKITA 458433-7	`458433-7`	Tellimisel	2.53 €	Change Lever MAKITA 458433-7 kogus
053	Compression Spring 4 MAKITA 233279-0	`233279-0`	Tellimisel	0.99 €	Compression Spring 4 MAKITA 233279-0 kogus
054	Lock Button MAKITA 458434-5	`458434-5`	Tellimisel	0.99 €	Lock Button MAKITA 458434-5 kogus
055	Ball Bearing 6200DDW MAKITA 211087-9	`211087-9`	Tellimisel	4.21 €	Ball Bearing 6200DDW MAKITA 211087-9 kogus
056	Rotor Assembly MAKITA 519526-6	`519526-6`	Tellimisel	85.73 €	Rotor Assembly MAKITA 519526-6 kogus
057	Ball Bearing 607ZZ MAKITA 211022-7	`211022-7`	Tellimisel	5.61 €	Ball Bearing 607ZZ MAKITA 211022-7 kogus
058	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
059	Baffle Plate MAKITA 458427-2	`458427-2`	Tellimisel	1.40 €	Baffle Plate MAKITA 458427-2 kogus
060	Stator MAKITA 629356-8	`629356-8`	Tellimisel	77.73 €	Stator MAKITA 629356-8 kogus
061	Motor Housing MAKITA 458426-4	`458426-4`	Tellimisel	9.41 €	Motor Housing MAKITA 458426-4 kogus
062	Spare Part MAKITA 265695-8	`265695-8`	Tellimisel	2.00 €	Spare Part MAKITA 265695-8 kogus
063	Switch Circuit Complete MAKITA 140A19-4	`140A19-4`	Tellimisel	16.42 €	Switch Circuit Complete MAKITA 140A19-4 kogus
064	Handle Set MAKITA 183J58-5	`183J58-5`	Tellimisel	4.64 €	Handle Set MAKITA 183J58-5 kogus
065	LED Circuit MAKITA 620839-1	`620839-1`	Tellimisel	4.64 €	LED Circuit MAKITA 620839-1 kogus
066	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
067	Forward Reverse Change Lever MAKITA 458432-9	`458432-9`	Tellimisel	0.99 €	Forward Reverse Change Lever MAKITA 458432-9 kogus
068	Switch MAKITA 650710-5	`650710-5`	Tellimisel	17.96 €	Switch MAKITA 650710-5 kogus
069	Controller MAKITA 620838-3	`620838-3`	Tellimisel	186.04 €	Controller MAKITA 620838-3 kogus
070	Handle Set MAKITA 183J58-5	`183J58-5`	Tellimisel	4.64 €	Handle Set MAKITA 183J58-5 kogus
071	Terminal MAKITA 644809-6	`644809-6`	Laos	5.00 €	Terminal MAKITA 644809-6 kogus
075	Flat Washer 5 MAKITA 267010-2	`267010-2`	Tellimisel	0.99 €	Flat Washer 5 MAKITA 267010-2 kogus
076-1	Controller MAKITA 620R29-4	`620R29-4`	Tellimisel	17.03 €	Controller MAKITA 620R29-4 kogus
077	Pan Head Screw M2 × 6 MAKITA 652119-7	`652119-7`	Laos	0.50 €	Pan Head Screw M2 × 6 MAKITA 652119-7 kogus
