Makita DHS680Z varuosad
Makita DHS680Z varuosad
Makita DHS680Z varuosad

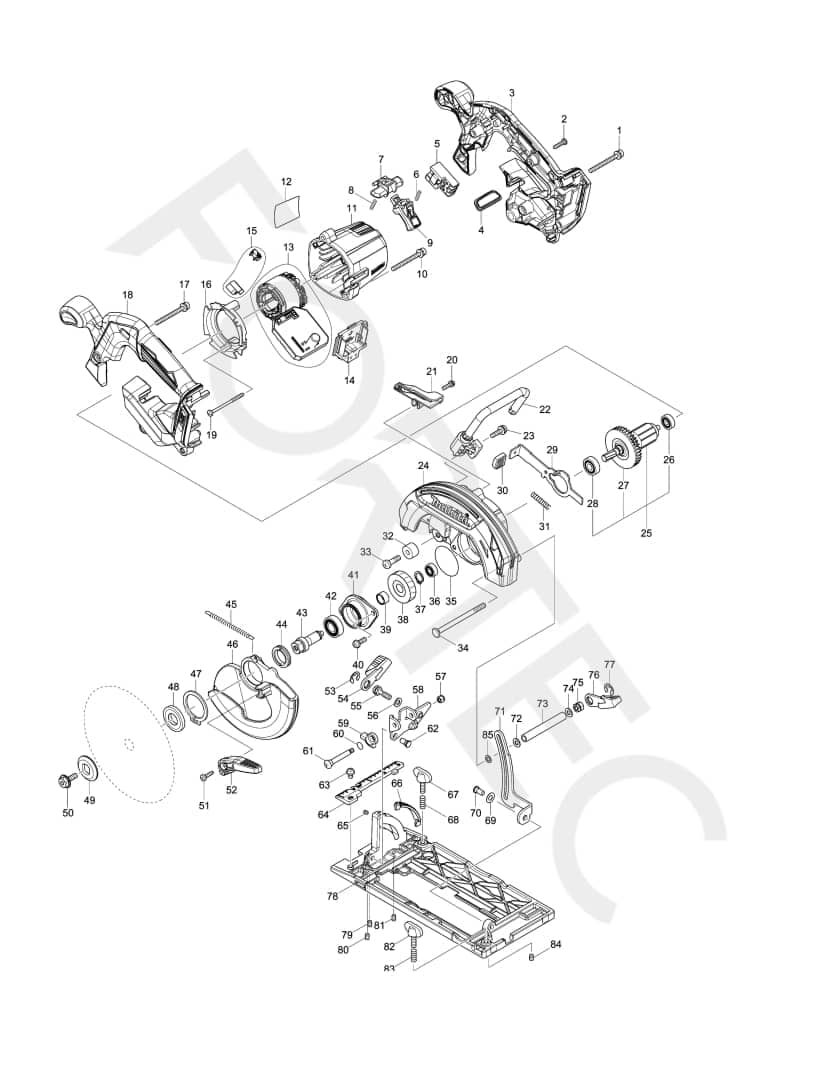

Näita varuosi (104)Peida varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Pan Head Screw M5 × 40 MAKITA 911263-2 | 911263-2 | Tellimisel | 0.99 € | |
| 002 | Binding head tapping screw 4X18 MAKITA 265995-6 | 265995-6 | Tellimisel | 0.99 € | |
| 003 | Handle Set MAKITA 183A15-9 | 183A15-9 | Tellimisel | 20.76 € | |
| 003-1 | Handle Set MAKITA 183A15-9 | 183A15-9 | Tellimisel | 20.76 € | |
| 004 | Indication Plate Complete MAKITA 142948-1 | 142948-1 | Tellimisel | 1.12 € | |
| 005 | Switch MAKITA 650734-1 | 650734-1 | Tellimisel | 14.74 € | |
| 006 | Compression Spring 4 MAKITA 231469-9 | 231469-9 | Tellimisel | 0.99 € | |
| 007 | Lock-Off Lever MAKITA 419664-3 | 419664-3 | Tellimisel | 1.00 € | |
| 008 | Compression Spring 4 MAKITA 231469-9 | 231469-9 | Tellimisel | 0.99 € | |
| 009 | Switch Lever MAKITA 455480-9 | 455480-9 | Tellimisel | 0.99 € | |
| 010 | Pan Head Screw M5 × 40 MAKITA 911263-2 | 911263-2 | Tellimisel | 0.99 € | |
| 011 | Motor Housing MAKITA 455437-0 | 455437-0 | Tellimisel | 4.49 € | |
| 012 | Name Plate MAKITA 850H69-0 | 850H69-0 | Tellimisel | 2.00 € | |
| 013 | Toode pole süsteemis | 632D90-5 | – | – | – |
| 013-1 | Stator Unit MAKITA 629348-7 | 629348-7 | Tellimisel | 110.84 € | |
| 013-2 | Stator MAKITA 629B61-9 | 629B61-9 | Tellimisel | 15.86 € | |
| 014 | Terminal MAKITA 644808-8 | 644808-8 | Tellimisel | 5.00 € | |
| 015 | Switch Unit MAKITA 632D81-6 | 632D81-6 | Tellimisel | 17.82 € | |
| 016 | Baffle Plate MAKITA 455440-1 | 455440-1 | Tellimisel | 0.99 € | |
| 017 | Pan Head Screw M5 × 40 MAKITA 911263-2 | 911263-2 | Tellimisel | 0.99 € | |
| 018 | Handle Set MAKITA 183A15-9 | 183A15-9 | Tellimisel | 20.76 € | |
| 018-1 | Handle Set MAKITA 183A15-9 | 183A15-9 | Tellimisel | 20.76 € | |
| 019 | Tapping Screw 4 × 50 MAKITA 266091-3 | 266091-3 | Tellimisel | 0.99 € | |
| 019-1 | Tapping Screw 4 × 50 mm MAKITA 266467-4 | 266467-4 | Tellimisel | 0.99 € | |
| 020 | Toode pole süsteemis | 911128-8 | – | – | – |
| 021 | Duct MAKITA 455483-3 | 455483-3 | Tellimisel | 0.99 € | |
| 022 | Hook Assembly MAKITA 123269-0 | 123269-0 | Tellimisel | 8.28 € | |
| 023 | Pan Head Screw M5 × 20 MAKITA 911233-1 | 911233-1 | Tellimisel | 0.99 € | |
| 024 | Toode pole süsteemis | 142942-3 | – | – | – |
| 024-1 | Blade Case Complete MAKITA 143256-3 | 143256-3 | Tellimisel | 42.24 € | |
| 024-2 | Toode pole süsteemis | 141P24-4 | – | – | – |
| 024-3 | Blade Case Complete MAKITA 143256-3 | 143256-3 | Tellimisel | 42.24 € | |
| 025 | Rotor MAKITA 519359-9 | 519359-9 | Tellimisel | 65.94 € | |
| 025-1 | Rotor MAKITA 519359-9 | 519359-9 | Tellimisel | 65.94 € | |
| 026 | Toode pole süsteemis | 210022-4 | – | – | – |
| 027 | Fan 55 MAKITA 240045-8 | 240045-8 | Tellimisel | 1.68 € | |
| 028 | Ball Bearing 609 LLB MAKITA 210051-7 | 210051-7 | Tellimisel | 2.81 € | |
| 029 | Shaft Lock MAKITA 346837-4 | 346837-4 | Laos | 0.99 € | |
| 030 | Cap MAKITA 286275-7 | 286275-7 | Tellimisel | 0.99 € | |
| 031 | Compression Spring 6 MAKITA 233117-6 | 233117-6 | Tellimisel | 0.99 € | |
| 032 | Rubber Sleeve 6 MAKITA 262552-1 | 262552-1 | Tellimisel | 0.99 € | |
| 033 | Pan Head Screw M6 × 20 MAKITA 251247-1 | 251247-1 | Tellimisel | 0.99 € | |
| 033-1 | Pan Head Screw M6 × 20 MAKITA 265117-8 | 265117-8 | Tellimisel | 1.00 € | |
| 034 | Flat Head Square Neck Bolt M6 MAKITA 266194-3 | 266194-3 | Tellimisel | 1.68 € | |
| 035 | Toode pole süsteemis | 213565-5 | – | – | – |
| 035-1 | Toode pole süsteemis | 213A83-9 | – | – | – |
| 036 | Toode pole süsteemis | 210028-2 | – | – | – |
| 036-1 | Ball Bearing 606 ZZ MAKITA 210137-7 | 210137-7 | Tellimisel | 0.99 € | |
| 037 | Retaining Ring S-12 MAKITA 961052-5 | 961052-5 | Tellimisel | 0.99 € | |
| 038 | Helical Gear 50 MAKITA 227794-4 | 227794-4 | Tellimisel | 5.48 € | |
| 039 | Sleeve 12 MAKITA 257349-1 | 257349-1 | Tellimisel | 1.68 € | |
| 040 | Pan Head Screw M5 × 16 MAKITA 911223-4 | 911223-4 | Tellimisel | 0.99 € | |
| 041 | Bearing Box MAKITA 319212-7 | 319212-7 | Tellimisel | 4.07 € | |
| 042 | Ball Bearing 6001DDW MAKITA 211131-2 | 211131-2 | Tellimisel | 8.42 € | |
| 042-1 | Ball Bearing 6001 DDW MAKITA 210216-1 | 210216-1 | Tellimisel | 2.00 € | |
| 043 | Spindle MAKITA 326459-6 | 326459-6 | Laos | 2.81 € | |
| 044 | Bearing Retainer 19 MAKITA 285845-9 | 285845-9 | Tellimisel | 3.37 € | |
| 045 | Tension Spring 4 MAKITA 231878-2 | 231878-2 | Tellimisel | 0.99 € | |
| 046 | Safety Cover MAKITA 319211-9 | 319211-9 | Tellimisel | 20.63 € | |
| 047 | Retaining Ring External S-34 MAKITA 961152-1 | 961152-1 | Tellimisel | 0.99 € | |
| 048 | Toode pole süsteemis | 224473-5 | – | – | – |
| 048-1 | Inner Flange 35 MAKITA 224593-5 | 224593-5 | Laos | 1.83 € | |
| 049 | Outer Flange 35 MAKITA 224409-4 | 224409-4 | Laos | 1.68 € | |
| 050 | Hex Socket Head Bolt M6 × 18 MAKITA 266924-2 | 266924-2 | Laos | 1.00 € | |
| 051 | Toode pole süsteemis | 266034-5 | – | – | – |
| 052 | Lever 39 MAKITA 272281-8 | 272281-8 | Tellimisel | 1.00 € | |
| 053 | Bow Stop Ring E-8 MAKITA 257982-9 | 257982-9 | Tellimisel | 0.99 € | |
| 054 | Lever 45 MAKITA 272272-9 | 272272-9 | Tellimisel | 2.81 € | |
| 055 | Hex Bolt M6 × 20 MAKITA 266735-5 | 266735-5 | Tellimisel | 1.40 € | |
| 055-1 | Toode pole süsteemis | 265B21-3 | – | – | – |
| 056 | Washer 6 MAKITA 941151-9 | 941151-9 | Tellimisel | 0.99 € | |
| 057 | Hex Lock Nut M5 MAKITA 252103-8 | 252103-8 | Tellimisel | 0.99 € | |
| 058 | Angular Guide MAKITA 346836-6 | 346836-6 | Laos | 1.12 € | |
| 059 | Stopper MAKITA 317986-4 | 317986-4 | Tellimisel | 4.21 € | |
| 060 | O-Ring 9 MAKITA 213062-1 | 213062-1 | Tellimisel | 0.99 € | |
| 061 | Truss Head Screw J6 MAKITA 265084-7 | 265084-7 | Laos | 1.68 € | |
| 062 | Shoulder Pin 6 MAKITA 256480-0 | 256480-0 | Tellimisel | 0.99 € | |
| 063 | Pan Head Screw M5 × 8 MAKITA 911203-0 | 911203-0 | Tellimisel | 0.99 € | |
| 063-1 | Pan Head Screw M5 × 10 MAKITA 911208-0 | 911208-0 | Tellimisel | 0.99 € | |
| 064 | Top Guide MAKITA 455516-4 | 455516-4 | Tellimisel | 2.24 € | |
| 065 | Hex Socket Head Set Screw M4 × 6 MAKITA 266318-1 | 266318-1 | Tellimisel | 0.99 € | |
| 066 | Bevel Guide MAKITA 455517-2 | 455517-2 | Tellimisel | 1.68 € | |
| 067 | Thumb Screw MAKITA 251896-4 | 251896-4 | Tellimisel | 1.40 € | |
| 068 | Compression Spring 6 MAKITA 231007-7 | 231007-7 | Tellimisel | 0.99 € | |
| 069 | Flat Washer 7 MAKITA 253058-0 | 253058-0 | Laos | 0.99 € | |
| 070 | Shoulder Pin 6 MAKITA 256511-5 | 256511-5 | Tellimisel | 0.99 € | |
| 071 | Depth Guide MAKITA 346838-2 | 346838-2 | Laos | 5.00 € | |
| 072 | Washer 6 MAKITA 941151-9 | 941151-9 | Tellimisel | 0.99 € | |
| 073 | Pipe 6 MAKITA 332126-3 | 332126-3 | Tellimisel | 1.12 € | |
| 074 | Washer 6 MAKITA 941151-9 | 941151-9 | Tellimisel | 0.99 € | |
| 075 | Hex Nut M6 MAKITA 264103-6 | 264103-6 | Tellimisel | 0.99 € | |
| 076 | Lever 45 MAKITA 272272-9 | 272272-9 | Tellimisel | 2.81 € | |
| 077 | Bow Stop Ring E-8 MAKITA 257982-9 | 257982-9 | Tellimisel | 0.99 € | |
| 078 | Base MAKITA 319210-1 | 319210-1 | Tellimisel | 30.87 € | |
| 078-1 | Base MAKITA 312B04-5 | 312B04-5 | Laos | 29.04 € | |
| 079 | Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5 | 266436-5 | Tellimisel | 0.99 € | |
| 080 | Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5 | 266436-5 | Tellimisel | 0.99 € | |
| 081 | Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5 | 266436-5 | Tellimisel | 0.99 € | |
| 082 | Thumb Screw MAKITA 251896-4 | 251896-4 | Tellimisel | 1.40 € | |
| 083 | Compression Spring 6 MAKITA 231007-7 | 231007-7 | Tellimisel | 0.99 € | |
| 084 | Hex Socket Set Screw Flat Point M5 × 8 MAKITA 266436-5 | 266436-5 | Tellimisel | 0.99 € | |
| 085 | Flat Washer 6 MAKITA 253077-6 | 253077-6 | Tellimisel | 0.99 € | |
| 086 | Controller MAKITA 620K93-3 | 620K93-3 | Tellimisel | 179.80 € | |
| 087 | Pan Head Screw M2 × 6 MAKITA 652119-7 | 652119-7 | Laos | 0.50 € |
