Makita DGA519Z varuosad
Makita DGA519Z varuosad
Kategooria: Ketaslõikurite ja Nurklihvijate varuosad
Aktiivsed filtrid
Makita DGA519Z varuosad

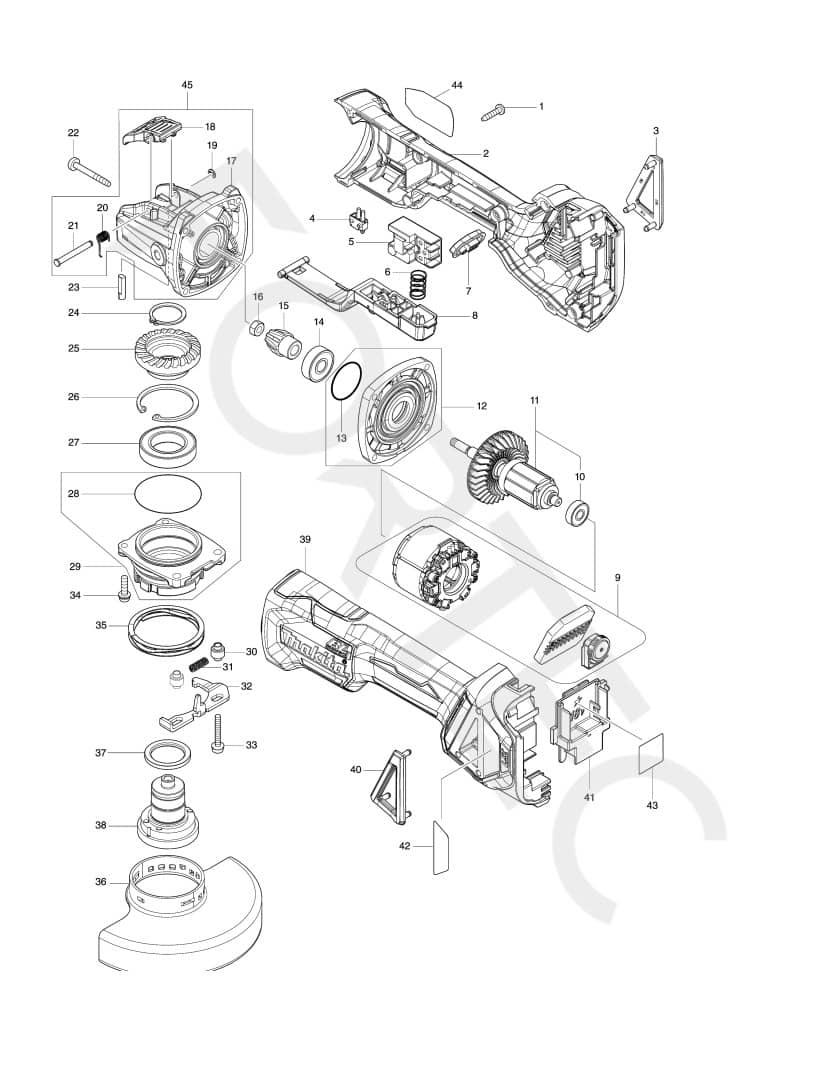

| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Pole laos | 0.99 € | |
| 001-1 | Toode pole süsteemis | 265B67-9 | – | – | – |
| 002 | Toode pole süsteemis | 183H86-8 | – | – | – |
| 003 | Dust Cover Right MAKITA 455450-8 | 455450-8 | Laos | 3.93 € | |
| 004 | Toode pole süsteemis | 632E12-1 | – | – | – |
| 005 | Switch MAKITA 650734-1 | 650734-1 | Pole laos | 14.74 € | |
| 006 | Toode pole süsteemis | 234357-9 | – | – | – |
| 007 | Indicator Panel Complete MAKITA 142901-7 | 142901-7 | Pole laos | 0.99 € | |
| 008 | Toode pole süsteemis | 142976-6 | – | – | – |
| 009 | Toode pole süsteemis | 629304-7 | – | – | – |
| 009-1 | Stator MAKITA 629B61-9 | 629B61-9 | Pole laos | 15.86 € | |
| 010 | Ball Bearing 607 LLB MAKITA 210169-4 | 210169-4 | Pole laos | 1 € | |
| 011 | Toode pole süsteemis | 510440-9 | – | – | – |
| 011-1 | Toode pole süsteemis | 510440-9 | – | – | – |
| 012 | Gear Housing Cover Assembly MAKITA 135930-7 | 135930-7 | Pole laos | 6.17 € | |
| 013 | O-Ring 26 MAKITA 213445-5 | 213445-5 | Pole laos | 0.99 € | |
| 013-1 | O-Ring 26 MAKITA 213407-3 | 213407-3 | Pole laos | 0.99 € | |
| 014 | Ball Bearing 629 LLB MAKITA 210042-8 | 210042-8 | Laos | 4.21 € | |
| 015 | Toode pole süsteemis | 226950-3 | – | – | – |
| 016 | Hex Nut M6 MAKITA 252186-8 | 252186-8 | Pole laos | 0.99 € | |
| 017 | Toode pole süsteemis | 140N76-0 | – | – | – |
| 018 | Toode pole süsteemis | 459967-3 | – | – | – |
| 019 | Stop Ring E-3 MAKITA 961017-7 | 961017-7 | Pole laos | 0.99 € | |
| 020 | Toode pole süsteemis | 232576-1 | – | – | – |
| 021 | Toode pole süsteemis | 256935-5 | – | – | – |
| 022 | Tapping Screw 4 × 30 mm MAKITA 266361-0 | 266361-0 | Pole laos | 0.99 € | |
| 022-1 | Toode pole süsteemis | 265B70-0 | – | – | – |
| 023 | Toode pole süsteemis | 327460-4 | – | – | – |
| 024 | Toode pole süsteemis | 961104-2 | – | – | – |
| 025 | Toode pole süsteemis | 226951-1 | – | – | – |
| 026 | Toode pole süsteemis | 962201-7 | – | – | – |
| 027 | Toode pole süsteemis | 210208-0 | – | – | – |
| 028 | O-Ring 45 MAKITA 213622-9 | 213622-9 | Pole laos | 0.99 € | |
| 029 | Toode pole süsteemis | 136199-6 | – | – | – |
| 030 | Toode pole süsteemis | 327322-6 | – | – | – |
| 031 | Toode pole süsteemis | 232490-1 | – | – | – |
| 032 | Toode pole süsteemis | 347615-5 | – | – | – |
| 033 | Toode pole süsteemis | 911159-7 | – | – | – |
| 034 | Pan Head Screw M4 × 20 With Washer MAKITA 911138-5 | 911138-5 | Pole laos | 0.99 € | |
| 035 | Toode pole süsteemis | 232577-9 | – | – | – |
| 035-1 | Toode pole süsteemis | 232577-9 | – | – | – |
| 036 | Toode pole süsteemis | 347618-9 | – | – | – |
| 036-1 | Toode pole süsteemis | 141L27-4 | – | – | – |
| 037 | Toode pole süsteemis | 327459-9 | – | – | – |
| 038 | Toode pole süsteemis | 127428-8 | – | – | – |
| 039 | Toode pole süsteemis | 183H86-8 | – | – | – |
| 040 | Dust Cover Left MAKITA 455449-3 | 455449-3 | Laos | 3.93 € | |
| 041 | Terminal MAKITA 643874-2 | 643874-2 | Pole laos | 3.93 € | |
| 042 | Toode pole süsteemis | 816D93-9 | – | – | – |
| 043 | Toode pole süsteemis | 856R76-1 | – | – | – |
| 044 | Toode pole süsteemis | 856R71-1 | – | – | – |
| 045 | Toode pole süsteemis | 136209-9 | – | – | – |
| 046 | Toode pole süsteemis | 620K21-8 | – | – | – |
| 047 | Pan Head Screw M2 × 6 MAKITA 652119-7 | 652119-7 | Pole laos | 0.5 € |
