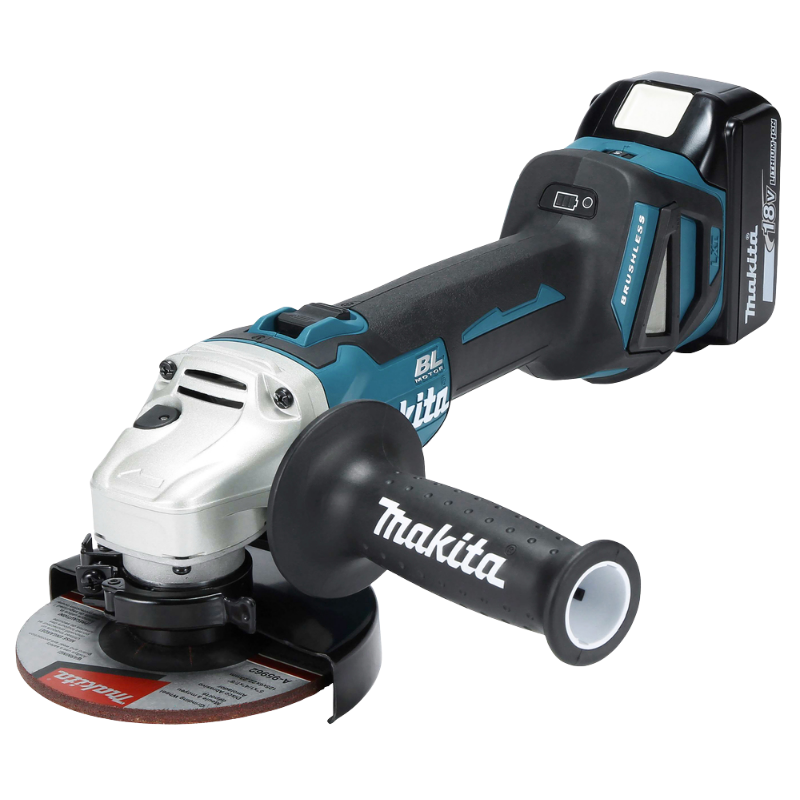

Makita DGA511Z varuosad
Makita DGA511Z varuosad
Makita DGA511Z varuosad

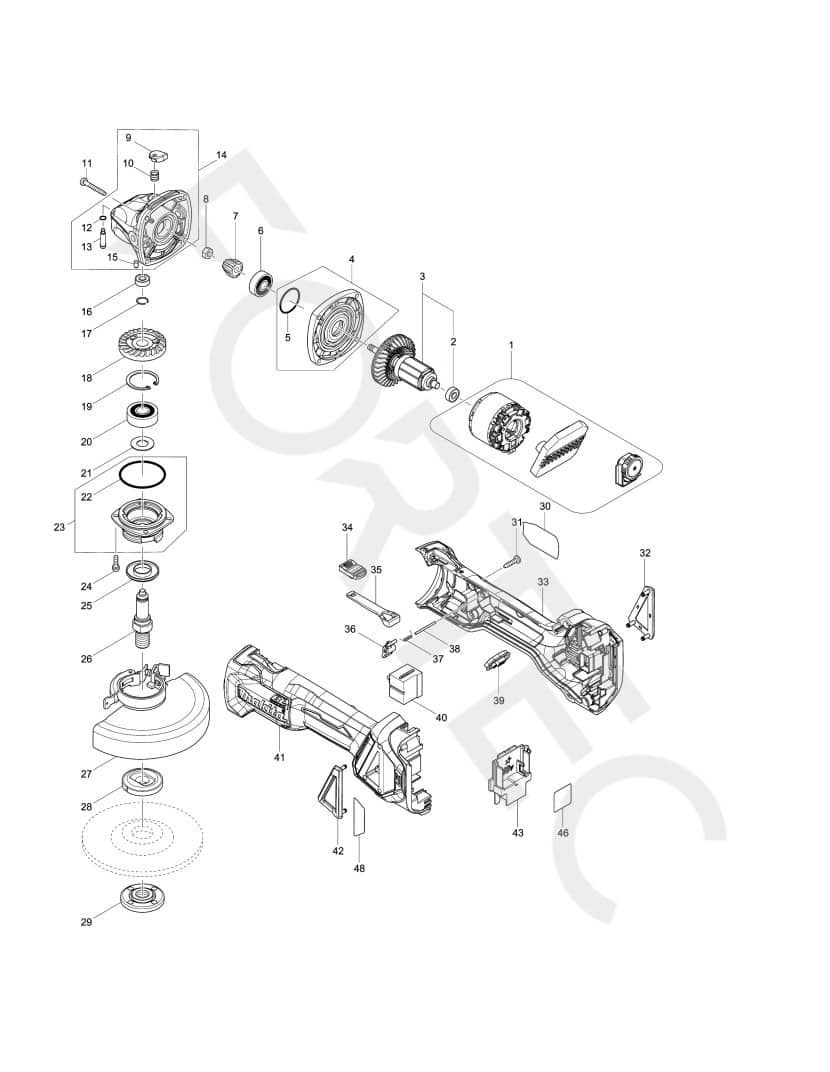

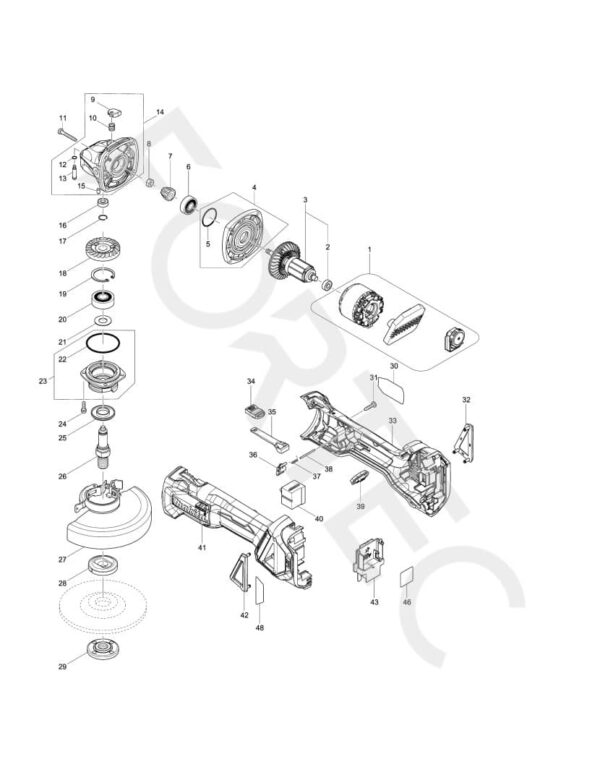

| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Stator Complete DC 18 V MAKITA 629296-0 | 629296-0 | Pole laos | Algne hind oli: 148.72 €.118.98 €Current price is: 118.98 €. | |
| 001-1 | Stator MAKITA 629B61-9 | 629B61-9 | Pole laos | Algne hind oli: 15.86 €.12.69 €Current price is: 12.69 €. | |
| 002 | Ball Bearing 607 LLB MAKITA 210169-4 | 210169-4 | Pole laos | Algne hind oli: 1.00 €.0.80 €Current price is: 0.80 €. | |
| 003 | Rotor Assembly MAKITA 510329-1 | 510329-1 | Laos | Algne hind oli: 22.45 €.17.96 €Current price is: 17.96 €. | |
| 003-1 | Rotor Assembly MAKITA 510329-1 | 510329-1 | Laos | Algne hind oli: 22.45 €.17.96 €Current price is: 17.96 €. | |
| 004 | Gear Housing Cover Assembly MAKITA 135930-7 | 135930-7 | Pole laos | Algne hind oli: 6.17 €.4.94 €Current price is: 4.94 €. | |
| 004-1 | Toode pole süsteemis | 136170-0 | – | – | – |
| 005 | O-Ring 26 MAKITA 213445-5 | 213445-5 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 005-1 | O-Ring 26 MAKITA 213407-3 | 213407-3 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 006 | Ball Bearing 629 LLB MAKITA 210042-8 | 210042-8 | Laos | Algne hind oli: 4.21 €.3.37 €Current price is: 3.37 €. | |
| 007 | Spiral Bevel Gear 10 MAKITA 227541-3 | 227541-3 | Pole laos | Algne hind oli: 4.21 €.3.37 €Current price is: 3.37 €. | |
| 007-1 | Toode pole süsteemis | 226861-2 | – | – | – |
| 008 | Hex Nut M6 MAKITA 252186-8 | 252186-8 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 009 | Pin Cap MAKITA 417771-6 | 417771-6 | Laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 010 | Compression Spring 8 MAKITA 233072-2 | 233072-2 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 010-1 | Compression Spring 8 MAKITA 233376-2 | 233376-2 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 011 | Tapping Screw 4 × 30 mm MAKITA 266361-0 | 266361-0 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 011-1 | Toode pole süsteemis | 265B70-0 | – | – | – |
| 012 | Toode pole süsteemis | 213960-9 | – | – | – |
| 013 | Shoulder Pin 4 MAKITA 256546-6 | 256546-6 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 014 | Gear Housing Assembly MAKITA 135929-2 | 135929-2 | Pole laos | Algne hind oli: 12.07 €.9.66 €Current price is: 9.66 €. | |
| 015 | Toode pole süsteemis | 263002-9 | – | – | – |
| 016 | Ball Bearing 696 ZZ MAKITA 210033-9 | 210033-9 | Pole laos | Algne hind oli: 1.12 €.0.90 €Current price is: 0.90 €. | |
| 017 | Ring Spring MAKITA 233950-6 | 233950-6 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 018 | Spiral Bevel Gear 37 MAKITA 227641-9 | 227641-9 | Pole laos | Algne hind oli: 8.00 €.6.40 €Current price is: 6.40 €. | |
| 018-1 | Spiral Bevel Gear 37 MAKITA 226862-0 | 226862-0 | Pole laos | Algne hind oli: 5.05 €.4.04 €Current price is: 4.04 €. | |
| 019 | Retaining Ring R-32 MAKITA 962151-6 | 962151-6 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 020 | Ball Bearing 6201DDW MAKITA 211129-9 | 211129-9 | Laos | Algne hind oli: 5.61 €.4.49 €Current price is: 4.49 €. | |
| 021 | Flat Washer 12 MAKITA 267113-2 | 267113-2 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 021-1 | Flat Washer 12 MAKITA 267238-2 | 267238-2 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 022 | O-Ring 45 MAKITA 213622-9 | 213622-9 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 023 | Toode pole süsteemis | 135928-4 | – | – | – |
| 024 | Toode pole süsteemis | 911121-2 | – | – | – |
| 025 | Labyrinth Ring MAKITA 345464-4 | 345464-4 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 026 | Spindle MAKITA 324954-0 | 324954-0 | Pole laos | Algne hind oli: 4.21 €.3.37 €Current price is: 3.37 €. | |
| 027 | Toode pole süsteemis | 123145-8 | – | – | – |
| 027-1 | Toode pole süsteemis | 141P36-7 | – | – | – |
| 028 | Toode pole süsteemis | 224415-9 | – | – | – |
| 029 | Lock Nut M14 MAKITA 224554-5 | 224554-5 | Laos | Algne hind oli: 3.10 €.2.48 €Current price is: 2.48 €. | |
| 030 | Toode pole süsteemis | 853X56-4 | – | – | – |
| 031 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 031-1 | Toode pole süsteemis | 265B67-9 | – | – | – |
| 032 | Dust Cover Right MAKITA 455450-8 | 455450-8 | Laos | Algne hind oli: 3.93 €.3.14 €Current price is: 3.14 €. | |
| 033 | Toode pole süsteemis | 183H82-6 | – | – | – |
| 034 | Switch Knob MAKITA 455447-7 | 455447-7 | Laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 035 | Switch Lever MAKITA 455446-9 | 455446-9 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 036 | Lever MAKITA 455448-5 | 455448-5 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 037 | Torsion Spring 2 MAKITA 231679-8 | 231679-8 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 038 | Pin 2 MAKITA 268330-7 | 268330-7 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 039 | Indicator Panel Complete MAKITA 142901-7 | 142901-7 | Pole laos | Algne hind oli: 0.99 €.0.79 €Current price is: 0.79 €. | |
| 040 | Toode pole süsteemis | 650579-7 | – | – | – |
| 040-1 | Toode pole süsteemis | 650579-7 | – | – | – |
| 041 | Toode pole süsteemis | 183H82-6 | – | – | – |
| 042 | Dust Cover Left MAKITA 455449-3 | 455449-3 | Laos | Algne hind oli: 3.93 €.3.14 €Current price is: 3.14 €. | |
| 043 | Terminal MAKITA 643874-2 | 643874-2 | Pole laos | Algne hind oli: 3.93 €.3.14 €Current price is: 3.14 €. | |
| 046 | Toode pole süsteemis | 853X59-8 | – | – | – |
| 048 | Toode pole süsteemis | 816D93-9 | – | – | – |
| 049 | Controller MAKITA 620K18-7 | 620K18-7 | Pole laos | Algne hind oli: 122.00 €.97.60 €Current price is: 97.60 €. | |
| 050 | Pan Head Screw M2 × 6 MAKITA 652119-7 | 652119-7 | Pole laos | Algne hind oli: 0.50 €.0.40 €Current price is: 0.40 €. |
