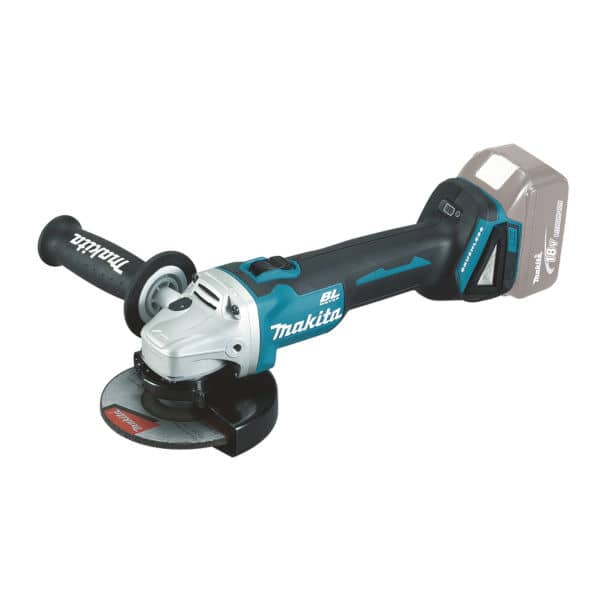

Makita DGA506Z varuosad
Makita DGA506Z varuosad
Makita DGA506Z varuosad

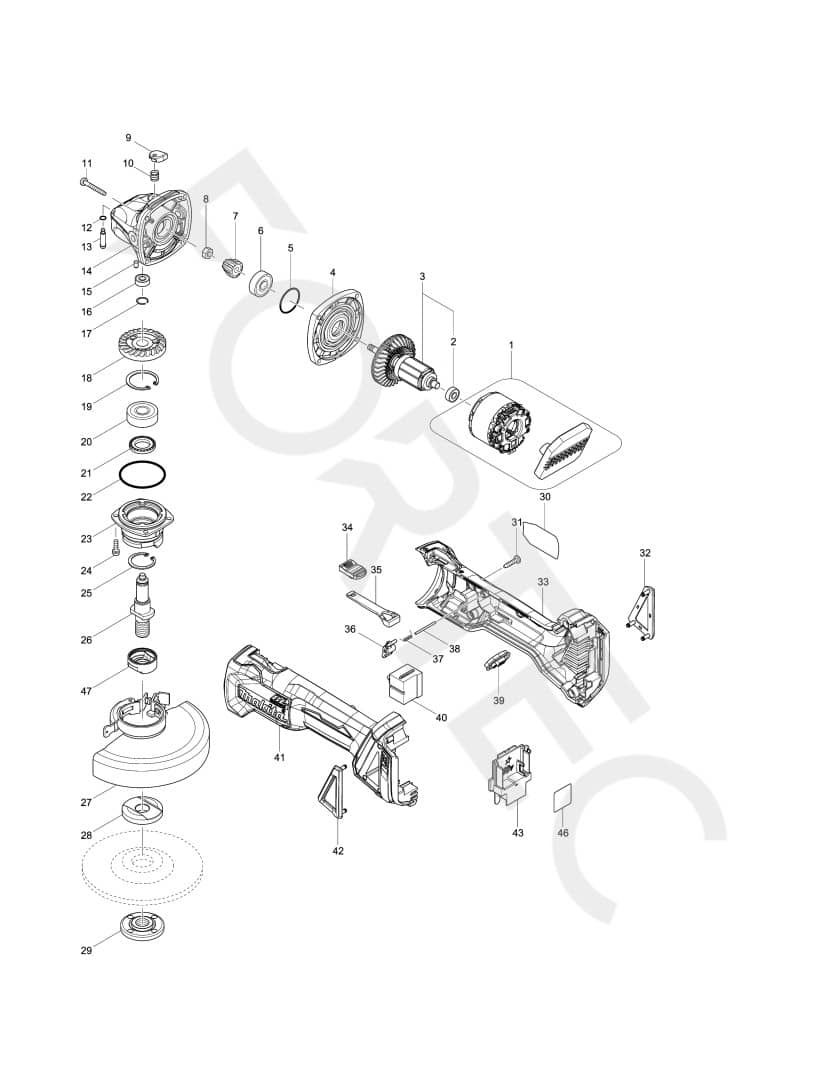

| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Toode pole süsteemis | 629201-7 | – | – | – |
| 001-1 | Toode pole süsteemis | 629B86-3 | – | – | – |
| 001-2 | Stator MAKITA 629B61-9 | 629B61-9 | Pole laos | 15.86 € | |
| 002 | Ball Bearing 607 LLB MAKITA 210034-7 | 210034-7 | Laos | 1.4 € | |
| 002-1 | Ball Bearing 607 LLB MAKITA 210169-4 | 210169-4 | Pole laos | 1 € | |
| 003 | Toode pole süsteemis | 519378-5 | – | – | – |
| 003-1 | Rotor Assembly MAKITA 510329-1 | 510329-1 | Laos | 22.45 € | |
| 003-2 | Rotor Assembly MAKITA 510329-1 | 510329-1 | Laos | 22.45 € | |
| 003-3 | Rotor Assembly MAKITA 510329-1 | 510329-1 | Laos | 22.45 € | |
| 004 | Gear Housing Cover MAKITA 319214-3 | 319214-3 | Pole laos | 5.48 € | |
| 005 | O-Ring 26 MAKITA 213445-5 | 213445-5 | Pole laos | 0.99 € | |
| 005-1 | O-Ring 26 MAKITA 213407-3 | 213407-3 | Pole laos | 0.99 € | |
| 006 | Ball Bearing 629 LLB MAKITA 210042-8 | 210042-8 | Laos | 4.21 € | |
| 007 | Spiral Bevel Gear 10 MAKITA 227541-3 | 227541-3 | Pole laos | 4.21 € | |
| 007-1 | Toode pole süsteemis | 226861-2 | – | – | – |
| 008 | Hex Nut M6 MAKITA 252186-8 | 252186-8 | Pole laos | 0.99 € | |
| 009 | Pin Cap MAKITA 417771-6 | 417771-6 | Laos | 0.99 € | |
| 010 | Compression Spring 8 MAKITA 233072-2 | 233072-2 | Pole laos | 0.99 € | |
| 010-1 | Compression Spring 8 MAKITA 233376-2 | 233376-2 | Pole laos | 0.99 € | |
| 011 | Tapping Screw 4 × 30 mm MAKITA 266361-0 | 266361-0 | Pole laos | 0.99 € | |
| 011-1 | Toode pole süsteemis | 265B70-0 | – | – | – |
| 012 | Toode pole süsteemis | 213960-9 | – | – | – |
| 013 | Shoulder Pin 4 MAKITA 256546-6 | 256546-6 | Pole laos | 0.99 € | |
| 014 | Gear Housing MAKITA 319213-5 | 319213-5 | Pole laos | 8.7 € | |
| 015 | Toode pole süsteemis | 263002-9 | – | – | – |
| 016 | Ball Bearing 696 ZZ MAKITA 210033-9 | 210033-9 | Pole laos | 1.12 € | |
| 017 | Ring Spring MAKITA 233950-6 | 233950-6 | Pole laos | 0.99 € | |
| 018 | Spiral Bevel Gear 37 MAKITA 227641-9 | 227641-9 | Pole laos | 8 € | |
| 018-1 | Spiral Bevel Gear 37 MAKITA 226862-0 | 226862-0 | Pole laos | 5.05 € | |
| 019 | Retaining Ring R-32 MAKITA 962151-6 | 962151-6 | Pole laos | 0.99 € | |
| 020 | Ball Bearing 6201DDW MAKITA 211129-9 | 211129-9 | Laos | 5.61 € | |
| 021 | Toode pole süsteemis | 262153-5 | – | – | – |
| 022 | O-Ring 45 MAKITA 213622-9 | 213622-9 | Pole laos | 0.99 € | |
| 023 | Toode pole süsteemis | 319399-5 | – | – | – |
| 024 | Toode pole süsteemis | 911121-2 | – | – | – |
| 025 | Toode pole süsteemis | 962105-3 | – | – | – |
| 026 | Toode pole süsteemis | 326672-6 | – | – | – |
| 027 | Toode pole süsteemis | 123145-8 | – | – | – |
| 027-1 | Toode pole süsteemis | 141P36-7 | – | – | – |
| 028 | Toode pole süsteemis | 224447-6 | – | – | – |
| 029 | Lock Nut M14 MAKITA 224554-5 | 224554-5 | Laos | 3.1 € | |
| 030 | Toode pole süsteemis | 851Y86-5 | – | – | – |
| 031 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Pole laos | 0.99 € | |
| 031-1 | Toode pole süsteemis | 265B67-9 | – | – | – |
| 032 | Dust Cover Right MAKITA 455450-8 | 455450-8 | Laos | 3.93 € | |
| 033 | Motor Housing Set MAKITA 187998-9 | 187998-9 | Pole laos | 16.84 € | |
| 033-1 | Toode pole süsteemis | 183J39-9 | – | – | – |
| 034 | Switch Knob MAKITA 455447-7 | 455447-7 | Laos | 0.99 € | |
| 035 | Switch Lever MAKITA 455446-9 | 455446-9 | Pole laos | 0.99 € | |
| 036 | Lever MAKITA 455448-5 | 455448-5 | Pole laos | 0.99 € | |
| 037 | Torsion Spring 2 MAKITA 231679-8 | 231679-8 | Pole laos | 0.99 € | |
| 038 | Pin 2 MAKITA 268330-7 | 268330-7 | Pole laos | 0.99 € | |
| 039 | Indicator Panel Complete MAKITA 142901-7 | 142901-7 | Pole laos | 0.99 € | |
| 040 | Toode pole süsteemis | 650579-7 | – | – | – |
| 040-1 | Toode pole süsteemis | 650579-7 | – | – | – |
| 041 | Motor Housing Set MAKITA 187998-9 | 187998-9 | Pole laos | 16.84 € | |
| 041-1 | Toode pole süsteemis | 183J39-9 | – | – | – |
| 042 | Dust Cover Left MAKITA 455449-3 | 455449-3 | Laos | 3.93 € | |
| 043 | Terminal MAKITA 643899-6 | 643899-6 | Pole laos | 3.37 € | |
| 046 | Toode pole süsteemis | 851Y94-6 | – | – | – |
| 047 | Toode pole süsteemis | 310514-4 | – | – | – |
| 048 | Toode pole süsteemis | 620L30-3 | – | – | – |
| 049 | Pan Head Screw M2 × 6 MAKITA 652119-7 | 652119-7 | Pole laos | 0.5 € |
