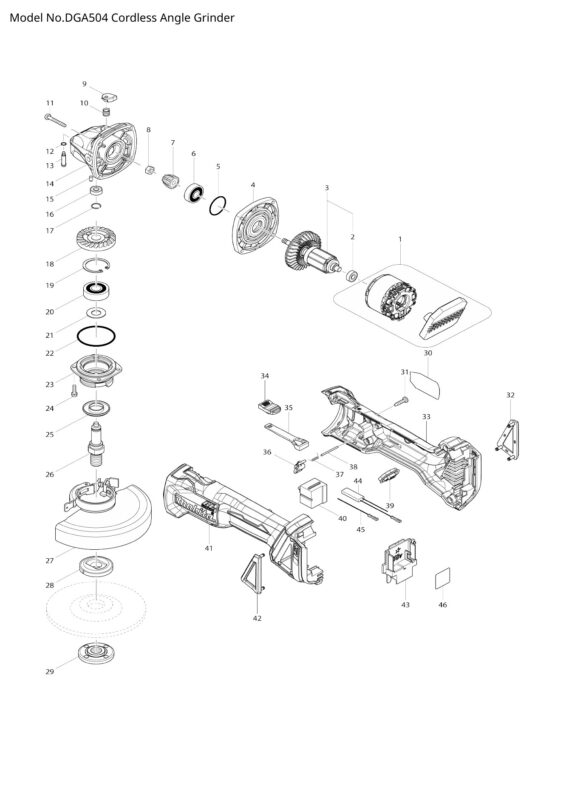

Makita DGA504 varuosad ja varuosajoonised

Näita varuosi (65)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Stator Assembly - DGA504 MAKITA 629140-1	`629140-1`	Tellimisel	159.94 €	Stator Assembly - DGA504 MAKITA 629140-1 kogus
001-1	Stator Assembly MAKITA 629173-6	`629173-6`	Tellimisel	156.29 €	Stator Assembly MAKITA 629173-6 kogus
001-2	Stator Complete DC 18 V MAKITA 629176-0	`629176-0`	Laos	110.84 €	Stator Complete DC 18 V MAKITA 629176-0 kogus
001-3	Stator Assembly MAKITA 629173-6	`629173-6`	Tellimisel	156.29 €	Stator Assembly MAKITA 629173-6 kogus
001-4	Stator MAKITA 629B61-9	`629B61-9`	Tellimisel	15.86 €	Stator MAKITA 629B61-9 kogus
002	Ball Bearing 607 LLB MAKITA 210034-7	`210034-7`	Laos	1.40 €	Ball Bearing 607 LLB MAKITA 210034-7 kogus
002-1	Ball Bearing 607 LLB MAKITA 210169-4	`210169-4`	Laos	1.00 €	Ball Bearing 607 LLB MAKITA 210169-4 kogus
003	Rotor Assembly MAKITA 519354-9	`519354-9`	Tellimisel	72.68 €	Rotor Assembly MAKITA 519354-9 kogus
003-1	Rotor Assembly MAKITA 519378-5	`519378-5`	Tellimisel	39.85 €	Rotor Assembly MAKITA 519378-5 kogus
003-2	Rotor Assembly MAKITA 510329-1	`510329-1`	Laos	22.45 €	Rotor Assembly MAKITA 510329-1 kogus
003-3	Rotor Assembly MAKITA 510329-1	`510329-1`	Laos	22.45 €	Rotor Assembly MAKITA 510329-1 kogus
003-4	Rotor Assembly MAKITA 510329-1	`510329-1`	Laos	22.45 €	Rotor Assembly MAKITA 510329-1 kogus
004	Gear Housing Cover MAKITA 319214-3	`319214-3`	Tellimisel	5.48 €	Gear Housing Cover MAKITA 319214-3 kogus
005	O-Ring 26 MAKITA 213445-5	`213445-5`	Tellimisel	0.99 €	O-Ring 26 MAKITA 213445-5 kogus
005-1	O-Ring 26 MAKITA 213407-3	`213407-3`	Tellimisel	0.99 €	O-Ring 26 MAKITA 213407-3 kogus
006	Ball Bearing 629 LLB MAKITA 210042-8	`210042-8`	Laos	4.21 €	Ball Bearing 629 LLB MAKITA 210042-8 kogus
007	Spiral Bevel Gear 10 MAKITA 227541-3	`227541-3`	Tellimisel	4.21 €	Spiral Bevel Gear 10 MAKITA 227541-3 kogus
008	Hex Nut M6 MAKITA 252186-8	`252186-8`	Tellimisel	0.99 €	Hex Nut M6 MAKITA 252186-8 kogus
009	Pin Cap MAKITA 417771-6	`417771-6`	Laos	0.99 €	Pin Cap MAKITA 417771-6 kogus
010	Compression Spring 8 MAKITA 233072-2	`233072-2`	Tellimisel	0.99 €	Compression Spring 8 MAKITA 233072-2 kogus
010-1	Compression Spring 8 MAKITA 233376-2	`233376-2`	Tellimisel	0.99 €	Compression Spring 8 MAKITA 233376-2 kogus
011	Tapping Screw 4 × 30 mm MAKITA 266361-0	`266361-0`	Tellimisel	0.99 €	Tapping Screw 4 × 30 mm MAKITA 266361-0 kogus
012	O-ring 5 MAKITA 213960-9	`213960-9`	Tellimisel	0.99 €	O-ring 5 MAKITA 213960-9 kogus
013	Shoulder Pin 4 MAKITA 256546-6	`256546-6`	Tellimisel	0.99 €	Shoulder Pin 4 MAKITA 256546-6 kogus
014	Gear Housing MAKITA 319213-5	`319213-5`	Tellimisel	8.70 €	Gear Housing MAKITA 319213-5 kogus
015	Rubber Pin 4 - 5704R MAKITA 263002-9	`263002-9`	Tellimisel	1.00 €	Rubber Pin 4 - 5704R MAKITA 263002-9 kogus
016	Ball Bearing 696 ZZ MAKITA 210033-9	`210033-9`	Laos	1.12 €	Ball Bearing 696 ZZ MAKITA 210033-9 kogus
017	Ring Spring MAKITA 233950-6	`233950-6`	Tellimisel	0.99 €	Ring Spring MAKITA 233950-6 kogus
018	Spiral Bevel Gear 37 MAKITA 227641-9	`227641-9`	Tellimisel	8.00 €	Spiral Bevel Gear 37 MAKITA 227641-9 kogus
018-1	Spiral Bevel Gear 37 MAKITA 226862-0	`226862-0`	Tellimisel	5.05 €	Spiral Bevel Gear 37 MAKITA 226862-0 kogus
019	Retaining Ring R-32 MAKITA 962151-6	`962151-6`	Tellimisel	0.99 €	Retaining Ring R-32 MAKITA 962151-6 kogus
020	Ball Bearing 6201DDW MAKITA 211129-9	`211129-9`	Laos	5.61 €	Ball Bearing 6201DDW MAKITA 211129-9 kogus
021	Flat Washer 12 MAKITA 267113-2	`267113-2`	Tellimisel	0.99 €	Flat Washer 12 MAKITA 267113-2 kogus
021-1	Flat Washer 12 MAKITA 267238-2	`267238-2`	Tellimisel	0.99 €	Flat Washer 12 MAKITA 267238-2 kogus
022	O-Ring 45 MAKITA 213622-9	`213622-9`	Tellimisel	0.99 €	O-Ring 45 MAKITA 213622-9 kogus
023	Bearing Box MAKITA 318331-6	`318331-6`	Tellimisel	2.81 €	Bearing Box MAKITA 318331-6 kogus
024	Pan Head Screw M4x14 MAKITA 911121-2	`911121-2`	Tellimisel	1.00 €	Pan Head Screw M4x14 MAKITA 911121-2 kogus
025	Labyrinth Ring MAKITA 345464-4	`345464-4`	Tellimisel	0.99 €	Labyrinth Ring MAKITA 345464-4 kogus
026	Spindle MAKITA 324954-0	`324954-0`	Tellimisel	4.21 €	Spindle MAKITA 324954-0 kogus
027	Kettakaitse 125mm Toolless MAKITA 123145-8	`123145-8`	Laos	12.65 €	Kettakaitse 125mm Toolless MAKITA 123145-8 kogus
028	Alumine Flants M14 125, 150mm Mudelitele 42 MAKITA 224415-9	`224415-9`	Laos	3.00 €	Alumine Flants M14 125, 150mm Mudelitele 42 MAKITA 224415-9 kogus
028-1	Inner Flange 14-45 MAKITA 224490-5	`224490-5`	Tellimisel	1.70 €	Inner Flange 14-45 MAKITA 224490-5 kogus
028-2	Alumine Flants M14 125, 150mm Mudelitele 42 MAKITA 224415-9	`224415-9`	Laos	3.00 €	Alumine Flants M14 125, 150mm Mudelitele 42 MAKITA 224415-9 kogus
029	Lock Nut M14 MAKITA 224554-5	`224554-5`	Laos	4.00 €	Lock Nut M14 MAKITA 224554-5 kogus
030	Unnamed Spare Part MAKITA 850J42-2	`850J42-2`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 850J42-2 kogus
031	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
031-1	Binding head tapping screw 4X1 MAKITA 265B67-9	`265B67-9`	Tellimisel	0.99 €	Binding head tapping screw 4X1 MAKITA 265B67-9 kogus
032	Dust Cover Right MAKITA 455450-8	`455450-8`	Laos	3.93 €	Dust Cover Right MAKITA 455450-8 kogus
033	Motor Housing Set MAKITA 187998-9	`187998-9`	Tellimisel	16.84 €	Motor Housing Set MAKITA 187998-9 kogus
034	Switch Knob MAKITA 455447-7	`455447-7`	Laos	0.99 €	Switch Knob MAKITA 455447-7 kogus
035	Switch Lever MAKITA 455446-9	`455446-9`	Tellimisel	0.99 €	Switch Lever MAKITA 455446-9 kogus
036	Lever MAKITA 455448-5	`455448-5`	Tellimisel	0.99 €	Lever MAKITA 455448-5 kogus
037	Torsion Spring 2 MAKITA 231679-8	`231679-8`	Tellimisel	0.99 €	Torsion Spring 2 MAKITA 231679-8 kogus
038	Pin 2 MAKITA 268330-7	`268330-7`	Tellimisel	0.99 €	Pin 2 MAKITA 268330-7 kogus
039	Indicator Panel Complete MAKITA 142901-7	`142901-7`	Tellimisel	0.99 €	Indicator Panel Complete MAKITA 142901-7 kogus
040	Switch - GA400D MAKITA 650579-7	`650579-7`	Tellimisel	11.22 €	Switch - GA400D MAKITA 650579-7 kogus
040-1	Switch - GA400D MAKITA 650579-7	`650579-7`	Tellimisel	11.22 €	Switch - GA400D MAKITA 650579-7 kogus
041	Motor Housing Set MAKITA 187998-9	`187998-9`	Tellimisel	16.84 €	Motor Housing Set MAKITA 187998-9 kogus
042	Dust Cover Left MAKITA 455449-3	`455449-3`	Laos	3.93 €	Dust Cover Left MAKITA 455449-3 kogus
043	Terminal MAKITA 643899-6	`643899-6`	Tellimisel	3.37 €	Terminal MAKITA 643899-6 kogus
044	Resistor Unit MAKITA 632E34-1	`632E34-1`	Tellimisel	8.42 €	Resistor Unit MAKITA 632E34-1 kogus
045	Lead Unit MAKITA 632E33-3	`632E33-3`	Tellimisel	1.00 €	Lead Unit MAKITA 632E33-3 kogus
046	Unnamed Spare Part MAKITA 850J49-8	`850J49-8`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 850J49-8 kogus
047-1	Controller - DGA504 MAKITA 620K10-3	`620K10-3`	Tellimisel	100.04 €	Controller - DGA504 MAKITA 620K10-3 kogus
048	Pan Head Screw M2 × 6 MAKITA 652119-7	`652119-7`	Laos	0.50 €	Pan Head Screw M2 × 6 MAKITA 652119-7 kogus

Varuosasoov

Ei leia varuosa, mida otsid? Kirjuta meile ja teavitame teid, kui varuosajoonis on lisatud.
