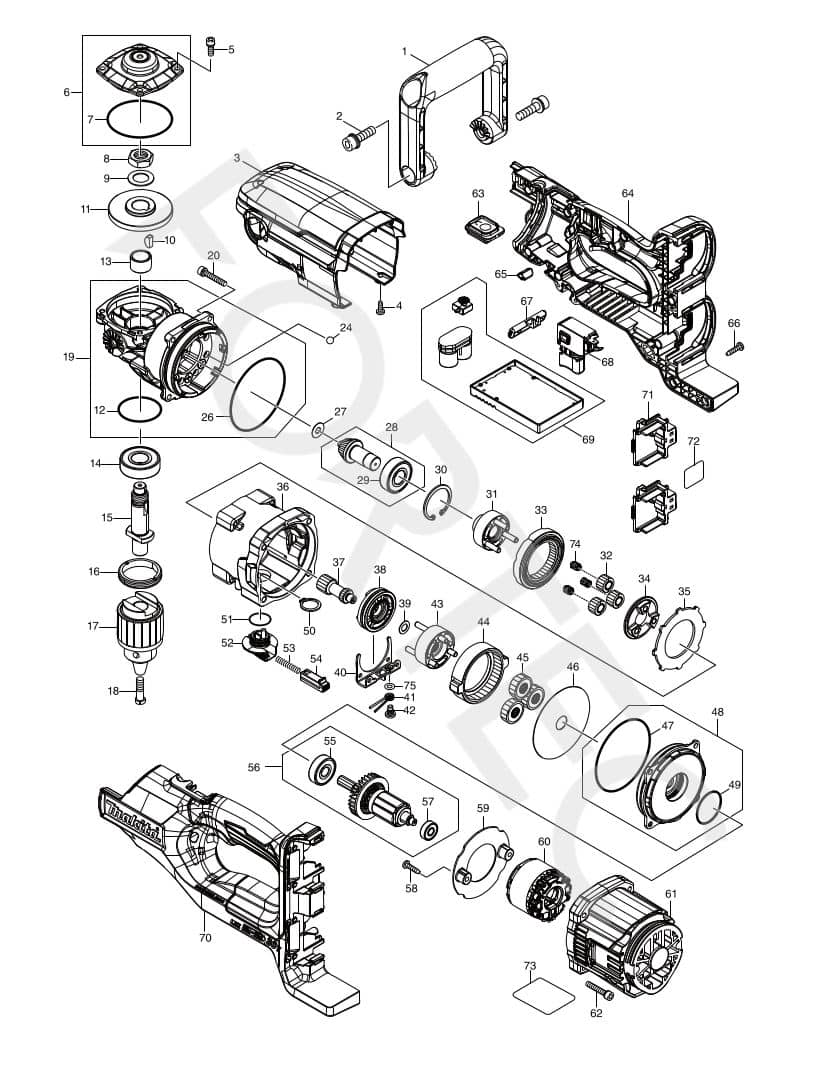

Makita DDA460ZK varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Front Grip MAKITA 458431-1 | 458431-1 | Pole laos | 7.86 € | |
| 002 | Hex Socket Head Bolt M8 × 30 MAKITA 922453-2 | 922453-2 | Laos | 0.99 € | |
| 003 | Top Cover MAKITA 458430-3 | 458430-3 | Pole laos | 10.81 € | |
| 004 | Tapping Screw CT 4 × 12 MAKITA 266026-4 | 266026-4 | Pole laos | 0.99 € | |
| 005 | Hex Socket Head Bolt M5 MAKITA 266071-9 | 266071-9 | Pole laos | 1 € | |
| 006 | Switch MAKITA 140A21-7 | 140A21-7 | Pole laos | 15.3 € | |
| 007 | O-Ring 63 MAKITA 213709-7 | 213709-7 | Pole laos | 1.12 € | |
| 008 | Spare Part MAKITA 252182-6 | 252182-6 | Pole laos | 3 € | |
| 008-1 | Toode pole süsteemis | 252267-8 | – | – | – |
| 009 | Flat Washer 16 MAKITA 253771-0 | 253771-0 | Pole laos | 1 € | |
| 010 | Woodruff Key 5 MAKITA 254032-1 | 254032-1 | Pole laos | 1 € | |
| 011 | Unknown Spare Part MAKITA 227416-6 | 227416-6 | Pole laos | 31 € | |
| 011-1 | Toode pole süsteemis | 227920-5 | – | – | – |
| 012 | O-Ring 40 MAKITA 213507-9 | 213507-9 | Pole laos | 0.99 € | |
| 013 | Sleeve 17 MAKITA 257440-5 | 257440-5 | Pole laos | 1.26 € | |
| 014 | Ball Bearing 6203DDW MAKITA 211278-2 | 211278-2 | Pole laos | 11.22 € | |
| 015 | Spindle MAKITA 327106-2 | 327106-2 | Pole laos | 48.82 € | |
| 016 | Bearing Retainer 36 MAKITA 285842-5 | 285842-5 | Pole laos | 4.21 € | |
| 017 | Drill Chuck S13 MAKITA 763250-5 | 763250-5 | Pole laos | 46.02 € | |
| 018 | Flat Head Screw M6 MAKITA 251463-5 | 251463-5 | Pole laos | 2.81 € | |
| 019 | Gear Housing Complete MAKITA 140A22-5 | 140A22-5 | Pole laos | 57.95 € | |
| 020 | Spare Part MAKITA 265695-8 | 265695-8 | Pole laos | 2 € | |
| 020-1 | Toode pole süsteemis | 265D08-7 | – | – | – |
| 020-2 | Toode pole süsteemis | 265D24-9 | – | – | – |
| 020-3 | Toode pole süsteemis | 265E69-3 | – | – | – |
| 024 | Steel Ball 7.0 MAKITA 216022-2 | 216022-2 | Laos | 0.99 € | |
| 026 | O-Ring 75 MAKITA 213755-0 | 213755-0 | Pole laos | 1.12 € | |
| 027 | Flat Washer 6 MAKITA 253411-0 | 253411-0 | Pole laos | 0.99 € | |
| 028 | Spiral Bevel Gear 13 Complete MAKITA 140A23-3 | 140A23-3 | Pole laos | 40.83 € | |
| 028-1 | Toode pole süsteemis | 136563-1 | – | – | – |
| 029 | Ball Bearing 6202DDW MAKITA 211228-7 | 211228-7 | Pole laos | 8.42 € | |
| 030 | Retaining Ring MAKITA 962153-2 | 962153-2 | Pole laos | 1 € | |
| 031 | Carrier A Complete MAKITA 140A13-6 | 140A13-6 | Pole laos | 25.82 € | |
| 032 | Spur Gear 13 MAKITA 226176-7 | 226176-7 | Pole laos | 0.99 € | |
| 033 | Internal Gear 40 MAKITA 226177-5 | 226177-5 | Pole laos | 6.88 € | |
| 034 | Cam MAKITA 223188-1 | 223188-1 | Pole laos | 7.86 € | |
| 035 | Washer 65 MAKITA 347365-2 | 347365-2 | Pole laos | 1.4 € | |
| 036 | Gear Case Complete MAKITA 140A16-0 | 140A16-0 | Pole laos | 34.38 € | |
| 037 | Spur Gear 14 MAKITA 226175-9 | 226175-9 | Pole laos | 6.45 € | |
| 038 | Change Ring MAKITA 310876-0 | 310876-0 | Pole laos | 9.97 € | |
| 039 | Flat Washer 8 MAKITA 253835-0 | 253835-0 | Laos | 0.99 € | |
| 040 | Change Guide MAKITA 347366-0 | 347366-0 | Pole laos | 1.26 € | |
| 041 | Torsion Spring MAKITA 231657-8 | 231657-8 | Pole laos | 2 € | |
| 042 | Pan Head Screw M5 MAKITA 265628-3 | 265628-3 | Pole laos | 0.99 € | |
| 043 | Carrier B Complete MAKITA 140A14-4 | 140A14-4 | Pole laos | 22.88 € | |
| 044 | Internal Gear 71 MAKITA 226174-1 | 226174-1 | Pole laos | 5.89 € | |
| 045 | Spur Gear 29 Complete MAKITA 140A12-8 | 140A12-8 | Pole laos | 7.44 € | |
| 046 | Flat Washer 15 MAKITA 253412-8 | 253412-8 | Pole laos | 1 € | |
| 047 | O-Ring 75 MAKITA 213755-0 | 213755-0 | Pole laos | 1.12 € | |
| 048 | Motor Bracket Complete MAKITA 140A20-9 | 140A20-9 | Pole laos | 13.05 € | |
| 049 | O-Ring 30 MAKITA 213406-5 | 213406-5 | Pole laos | 0.99 € | |
| 050 | Retaining Ring External S-18 MAKITA 961058-3 | 961058-3 | Pole laos | 0.99 € | |
| 051 | O-Ring 17 MAKITA 213265-7 | 213265-7 | Pole laos | 1 € | |
| 052 | Change Lever MAKITA 458433-7 | 458433-7 | Pole laos | 2.53 € | |
| 053 | Compression Spring 4 MAKITA 233279-0 | 233279-0 | Pole laos | 0.99 € | |
| 054 | Lock Button MAKITA 458434-5 | 458434-5 | Pole laos | 0.99 € | |
| 055 | Ball Bearing 6200DDW MAKITA 211087-9 | 211087-9 | Pole laos | 4.21 € | |
| 056 | Rotor Assembly MAKITA 519526-6 | 519526-6 | Pole laos | 85.73 € | |
| 056-1 | Toode pole süsteemis | 519689-8 | – | – | – |
| 056-2 | Toode pole süsteemis | 519689-8 | – | – | – |
| 057 | Ball Bearing 607ZZ MAKITA 211022-7 | 211022-7 | Pole laos | 5.61 € | |
| 058 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Pole laos | 0.99 € | |
| 059 | Baffle Plate MAKITA 458427-2 | 458427-2 | Pole laos | 1.4 € | |
| 060 | Stator MAKITA 629356-8 | 629356-8 | Pole laos | 77.73 € | |
| 060-1 | Toode pole süsteemis | 629B69-3 | – | – | – |
| 061 | Motor Housing MAKITA 458426-4 | 458426-4 | Pole laos | 9.41 € | |
| 062 | Spare Part MAKITA 265695-8 | 265695-8 | Pole laos | 2 € | |
| 062-1 | Toode pole süsteemis | 265D08-7 | – | – | – |
| 062-2 | Toode pole süsteemis | 265D24-9 | – | – | – |
| 062-3 | Toode pole süsteemis | 265E69-3 | – | – | – |
| 063 | Switch Circuit Complete MAKITA 140A19-4 | 140A19-4 | Pole laos | 16.42 € | |
| 064 | Handle Set MAKITA 183J58-5 | 183J58-5 | Pole laos | 4.64 € | |
| 064-1 | Toode pole süsteemis | 183R46-0 | – | – | – |
| 065 | LED Circuit MAKITA 620839-1 | 620839-1 | Pole laos | 4.64 € | |
| 066 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Pole laos | 0.99 € | |
| 067 | Forward Reverse Change Lever MAKITA 458432-9 | 458432-9 | Pole laos | 0.99 € | |
| 068 | Switch MAKITA 650710-5 | 650710-5 | Pole laos | 17.96 € | |
| 069 | Controller MAKITA 620838-3 | 620838-3 | Pole laos | 186.04 € | |
| 069-1 | Toode pole süsteemis | 620P55-1 | – | – | – |
| 069-2 | Toode pole süsteemis | 620R36-7 | – | – | – |
| 070 | Handle Set MAKITA 183J58-5 | 183J58-5 | Pole laos | 4.64 € | |
| 070-1 | Toode pole süsteemis | 183R46-0 | – | – | – |
| 071 | Terminal MAKITA 644809-6 | 644809-6 | Laos | 3.79 € | |
| 072 | Toode pole süsteemis | 854K90-9 | – | – | – |
| 073 | Toode pole süsteemis | 854K86-0 | – | – | – |
| 074 | Toode pole süsteemis | 212193-3 | – | – | – |
| 075 | Flat Washer 5 MAKITA 267010-2 | 267010-2 | Pole laos | 0.99 € | |
| 076 | Toode pole süsteemis | 620K74-7 | – | – | – |
| 076-1 | Controller MAKITA 620R29-4 | 620R29-4 | Pole laos | 17.03 € | |
| 077 | Pan Head Screw M2 × 6 MAKITA 652119-7 | 652119-7 | Pole laos | 0.5 € | |
| 078 | Toode pole süsteemis | 638A31-1 | – | – | – |
