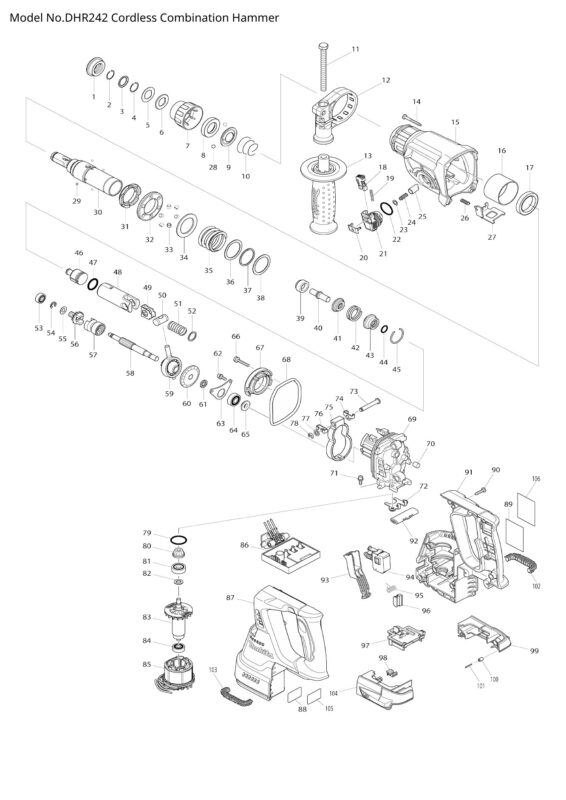

Makita DHR242 varuosad ja varuosajoonised

Näita varuosi (135)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Cap 35 MAKITA 286288-8	`286288-8`	Laos	0.99 €	Cap 35 MAKITA 286288-8 kogus
002	Leaf Spring MAKITA 233989-9	`233989-9`	Tellimisel	0.99 €	Leaf Spring MAKITA 233989-9 kogus
003	Washer 16 MAKITA 346221-3	`346221-3`	Tellimisel	0.99 €	Washer 16 MAKITA 346221-3 kogus
004	Ring Spring 15 MAKITA 233992-0	`233992-0`	Laos	0.99 €	Ring Spring 15 MAKITA 233992-0 kogus
005	Flat Washer 17 MAKITA 267437-6	`267437-6`	Tellimisel	0.99 €	Flat Washer 17 MAKITA 267437-6 kogus
006	Rubber Washer 16 MAKITA 424364-2	`424364-2`	Tellimisel	0.99 €	Rubber Washer 16 MAKITA 424364-2 kogus
007	Chuck Cover MAKITA 451533-2	`451533-2`	Tellimisel	1.00 €	Chuck Cover MAKITA 451533-2 kogus
008	Ring 21 MAKITA 325813-1	`325813-1`	Tellimisel	1.12 €	Ring 21 MAKITA 325813-1 kogus
009	Guide Washer MAKITA 346177-0	`346177-0`	Tellimisel	0.99 €	Guide Washer MAKITA 346177-0 kogus
010	Conical Compression Spring 21 MAKITA 233916-6	`233916-6`	Tellimisel	0.99 €	Conical Compression Spring 21 MAKITA 233916-6 kogus
011	Hex Bolt M8 × 90 MAKITA 266745-2	`266745-2`	Tellimisel	1.00 €	Hex Bolt M8 × 90 MAKITA 266745-2 kogus
012	Grip Base MAKITA 453129-5	`453129-5`	Tellimisel	1.26 €	Grip Base MAKITA 453129-5 kogus
013	Grip 36 Assembly MAKITA 158057-6	`158057-6`	Tellimisel	4.21 €	Grip 36 Assembly MAKITA 158057-6 kogus
014	Tapping Screw 4 × 35 mm MAKITA 266351-3	`266351-3`	Tellimisel	0.99 €	Tapping Screw 4 × 35 mm MAKITA 266351-3 kogus
015	Gear Housing Assembly MAKITA 141229-0	`141229-0`	Tellimisel	7.02 €	Gear Housing Assembly MAKITA 141229-0 kogus
015-1	Gear Housing Complete MAKITA 144354-6	`144354-6`	Tellimisel	7.72 €	Gear Housing Complete MAKITA 144354-6 kogus
015-1	Gear Housing Complete MAKITA 144354-6	`144354-6`	Tellimisel	7.72 €	Gear Housing Complete MAKITA 144354-6 kogus
016	Cup Sleeve MAKITA 331890-3	`331890-3`	Tellimisel	2.81 €	Cup Sleeve MAKITA 331890-3 kogus
017	Ball Bearing 6806LLU MAKITA 211294-4	`211294-4`	Tellimisel	11.22 €	Ball Bearing 6806LLU MAKITA 211294-4 kogus
018	Lock Button MAKITA 454112-5	`454112-5`	Tellimisel	0.99 €	Lock Button MAKITA 454112-5 kogus
019	Compression Spring 3 MAKITA 234264-6	`234264-6`	Tellimisel	0.99 €	Compression Spring 3 MAKITA 234264-6 kogus
020	Change Lever Cover MAKITA 453131-8	`453131-8`	Tellimisel	0.99 €	Change Lever Cover MAKITA 453131-8 kogus
021	Change Lever MAKITA 453125-3	`453125-3`	Tellimisel	1.12 €	Change Lever MAKITA 453125-3 kogus
022	O-Ring 21 MAKITA 213381-5	`213381-5`	Tellimisel	1.00 €	O-Ring 21 MAKITA 213381-5 kogus
023	Thin Washer 6 MAKITA 253308-3	`253308-3`	Tellimisel	0.99 €	Thin Washer 6 MAKITA 253308-3 kogus
024	Compression Spring 5 MAKITA 234147-0	`234147-0`	Tellimisel	0.99 €	Compression Spring 5 MAKITA 234147-0 kogus
025	Push Rod - HR2610 MAKITA 325785-0	`325785-0`	Tellimisel	1.00 €	Push Rod - HR2610 MAKITA 325785-0 kogus
025-1	Push Rod MAKITA 326850-8	`326850-8`	Tellimisel	1.00 €	Push Rod MAKITA 326850-8 kogus
025-1	Push Rod MAKITA 326850-8	`326850-8`	Tellimisel	1.00 €	Push Rod MAKITA 326850-8 kogus
026	Compression Spring 4 MAKITA 233360-7	`233360-7`	Tellimisel	0.99 €	Compression Spring 4 MAKITA 233360-7 kogus
027	Lock Plate MAKITA 346537-6	`346537-6`	Tellimisel	1.12 €	Lock Plate MAKITA 346537-6 kogus
028	Steel Ball 7.0 MAKITA 216022-2	`216022-2`	Laos	0.99 €	Steel Ball 7.0 MAKITA 216022-2 kogus
029	STEEL BALL 3, TD020D	`216019-1`	Laos	0.99 €	STEEL BALL 3, TD020D kogus
030	Tool Holder Complete MAKITA 140265-3	`140265-3`	Tellimisel	25.25 €	Tool Holder Complete MAKITA 140265-3 kogus
031	Driving Flange - HR2610 MAKITA 313149-0	`313149-0`	Tellimisel	2.81 €	Driving Flange - HR2610 MAKITA 313149-0 kogus
031-1	Driving Flange MAKITA 332139-4	`332139-4`	Tellimisel	5.61 €	Driving Flange MAKITA 332139-4 kogus
031-1	Driving Flange MAKITA 332139-4	`332139-4`	Tellimisel	5.61 €	Driving Flange MAKITA 332139-4 kogus
032	Spur Gear 51 MAKITA 227232-6	`227232-6`	Tellimisel	2.81 €	Spur Gear 51 MAKITA 227232-6 kogus
032-1	Spur Gear 51 MAKITA 227360-7	`227360-7`	Tellimisel	6.45 €	Spur Gear 51 MAKITA 227360-7 kogus
032-1	Spur Gear 51 MAKITA 227360-7	`227360-7`	Tellimisel	6.45 €	Spur Gear 51 MAKITA 227360-7 kogus
033	Pin 6 MAKITA 268226-2	`268226-2`	Tellimisel	0.99 €	Pin 6 MAKITA 268226-2 kogus
034	Flat Washer 30 MAKITA 267414-8	`267414-8`	Tellimisel	0.99 €	Flat Washer 30 MAKITA 267414-8 kogus
035	Compression Spring 31 MAKITA 234148-8	`234148-8`	Tellimisel	1.12 €	Compression Spring 31 MAKITA 234148-8 kogus
036	Flat Washer 30 MAKITA 267153-0	`267153-0`	Tellimisel	0.99 €	Flat Washer 30 MAKITA 267153-0 kogus
037	Spiro Lock Washer 30 MAKITA 257932-4	`257932-4`	Laos	2.81 €	Spiro Lock Washer 30 MAKITA 257932-4 kogus
038	Flat Washer 30 MAKITA 267153-0	`267153-0`	Tellimisel	0.99 €	Flat Washer 30 MAKITA 267153-0 kogus
039	Sleeve 9B MAKITA 325783-4	`325783-4`	Laos	1.12 €	Sleeve 9B MAKITA 325783-4 kogus
040	Impact Bolt A MAKITA 325789-2	`325789-2`	Laos	1.12 €	Impact Bolt A MAKITA 325789-2 kogus
041	Washer 10 MAKITA 325792-3	`325792-3`	Tellimisel	1.12 €	Washer 10 MAKITA 325792-3 kogus
042	Compression Spring 20 MAKITA 234149-6	`234149-6`	Tellimisel	1.00 €	Compression Spring 20 MAKITA 234149-6 kogus
043	O Ring Case B MAKITA 325793-1	`325793-1`	Laos	1.68 €	O Ring Case B MAKITA 325793-1 kogus
044	O-Ring 9 MAKITA 213073-6	`213073-6`	Laos	1.00 €	O-Ring 9 MAKITA 213073-6 kogus
045	Ring Spring 28 MAKITA 233979-2	`233979-2`	Laos	0.99 €	Ring Spring 28 MAKITA 233979-2 kogus
046	Striker MAKITA 326139-4	`326139-4`	Tellimisel	4.21 €	Striker MAKITA 326139-4 kogus
047	O-Ring 17.5 MAKITA 213258-4	`213258-4`	Laos	1.12 €	O-Ring 17.5 MAKITA 213258-4 kogus
048	Piston Cylinder MAKITA 310345-1	`310345-1`	Laos	11.22 €	Piston Cylinder MAKITA 310345-1 kogus
049	Guide Plate MAKITA 346036-8	`346036-8`	Tellimisel	0.99 €	Guide Plate MAKITA 346036-8 kogus
050	Piston Joint MAKITA 324215-8	`324215-8`	Tellimisel	1.40 €	Piston Joint MAKITA 324215-8 kogus
051	Compression Spring 14 MAKITA 234098-7	`234098-7`	Tellimisel	0.99 €	Compression Spring 14 MAKITA 234098-7 kogus
052	Flat Washer 14 MAKITA 267447-3	`267447-3`	Tellimisel	0.99 €	Flat Washer 14 MAKITA 267447-3 kogus
053	Ball Bearing 606 ZZ MAKITA 211012-0	`211012-0`	Tellimisel	4.21 €	Ball Bearing 606 ZZ MAKITA 211012-0 kogus
054	Stop Ring External U-6 MAKITA 257336-0	`257336-0`	Tellimisel	0.99 €	Stop Ring External U-6 MAKITA 257336-0 kogus
055	Flat Washer MAKITA 253186-1	`253186-1`	Tellimisel	0.99 €	Flat Washer MAKITA 253186-1 kogus
056	Spur Gear 10 MAKITA 227231-8	`227231-8`	Tellimisel	7.02 €	Spur Gear 10 MAKITA 227231-8 kogus
057	Clutch Cam A - HR2610 MAKITA 331814-9	`331814-9`	Tellimisel	8.42 €	Clutch Cam A - HR2610 MAKITA 331814-9 kogus
057-1	Clutch Cam A MAKITA 326849-3	`326849-3`	Tellimisel	5.33 €	Clutch Cam A MAKITA 326849-3 kogus
057-1	Clutch Cam A MAKITA 326849-3	`326849-3`	Tellimisel	5.33 €	Clutch Cam A MAKITA 326849-3 kogus
058	Cam Shaft MAKITA 326140-9	`326140-9`	Tellimisel	5.05 €	Cam Shaft MAKITA 326140-9 kogus
059	Swash Bearing 10 MAKITA 219020-5	`219020-5`	Tellimisel	28.06 €	Swash Bearing 10 MAKITA 219020-5 kogus
060	Spiral Bevel Gear 32 MAKITA 227588-7	`227588-7`	Tellimisel	5.61 €	Spiral Bevel Gear 32 MAKITA 227588-7 kogus
061	Ring 8 MAKITA 257323-9	`257323-9`	Tellimisel	0.99 €	Ring 8 MAKITA 257323-9 kogus
062	Hex Socket Head Bolt M4 × 12 MAKITA 922118-6	`922118-6`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 × 12 MAKITA 922118-6 kogus
063	Bearing Retainer B MAKITA 346038-4	`346038-4`	Tellimisel	0.99 €	Bearing Retainer B MAKITA 346038-4 kogus
064	Ball Bearing 608ZZ MAKITA 211032-4	`211032-4`	Laos	1.68 €	Ball Bearing 608ZZ MAKITA 211032-4 kogus
065	Ring 8 MAKITA 324212-4	`324212-4`	Tellimisel	2.81 €	Ring 8 MAKITA 324212-4 kogus
066	Hex Socket Head Bolt M4 MAKITA 922147-9	`922147-9`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 MAKITA 922147-9 kogus
067	Inner Support Complete MAKITA 141230-5	`141230-5`	Tellimisel	3.23 €	Inner Support Complete MAKITA 141230-5 kogus
068	O-ring 75 MAKITA 213767-3	`213767-3`	Laos	0.99 €	O-ring 75 MAKITA 213767-3 kogus
069	Inner Housing MAKITA 318810-4	`318810-4`	Tellimisel	16.56 €	Inner Housing MAKITA 318810-4 kogus
070	Felt MAKITA 443153-6	`443153-6`	Tellimisel	0.99 €	Felt MAKITA 443153-6 kogus
071	Hex Socket Head Bolt M4 × 12 MAKITA 922118-6	`922118-6`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 × 12 MAKITA 922118-6 kogus
072	Bearing Retainer A MAKITA 346536-8	`346536-8`	Tellimisel	1.12 €	Bearing Retainer A MAKITA 346536-8 kogus
073	Flat Fillister Head Pin 6 MAKITA 256536-9	`256536-9`	Tellimisel	1.00 €	Flat Fillister Head Pin 6 MAKITA 256536-9 kogus
074	Weight Holder Guide MAKITA 346538-4	`346538-4`	Tellimisel	0.99 €	Weight Holder Guide MAKITA 346538-4 kogus
075	Counterweight MAKITA 313224-2	`313224-2`	Tellimisel	2.95 €	Counterweight MAKITA 313224-2 kogus
076	Weight Holder Guide MAKITA 346538-4	`346538-4`	Tellimisel	0.99 €	Weight Holder Guide MAKITA 346538-4 kogus
077	Flat Washer 6 MAKITA 253726-5	`253726-5`	Tellimisel	0.99 €	Flat Washer 6 MAKITA 253726-5 kogus
078	Stop Ring External E-5 MAKITA 961018-5	`961018-5`	Tellimisel	0.99 €	Stop Ring External E-5 MAKITA 961018-5 kogus
079	O-ring 22.4 MAKITA 213008-7	`213008-7`	Tellimisel	0.99 €	O-ring 22.4 MAKITA 213008-7 kogus
080	Spiral Bevel Gear 11 Complete MAKITA 141458-5	`141458-5`	Laos	4.64 €	Spiral Bevel Gear 11 Complete MAKITA 141458-5 kogus
081	Ball Bearing 608 LLU MAKITA 210024-0	`210024-0`	Laos	4.21 €	Ball Bearing 608 LLU MAKITA 210024-0 kogus
082	Flat Washer 8 MAKITA 253835-0	`253835-0`	Laos	0.99 €	Flat Washer 8 MAKITA 253835-0 kogus
083	Rotor MAKITA 619293-4	`619293-4`	Tellimisel	28.06 €	Rotor MAKITA 619293-4 kogus
083-1	Rotor MAKITA 619737-4	`619737-4`	Tellimisel	Algne hind oli: 45.79 €.Praegune hind on: 45.79 €.	Rotor MAKITA 619737-4 kogus
084	Ball Bearing 626DDW MAKITA 210022-4	`210022-4`	Tellimisel	4.21 €	Ball Bearing 626DDW MAKITA 210022-4 kogus
085	Stator - BHR243 MAKITA 629922-1	`629922-1`	Tellimisel	44.90 €	Stator - BHR243 MAKITA 629922-1 kogus
085-1	Stator Assembly MAKITA 529922-0	`529922-0`	Tellimisel	61.17 €	Stator Assembly MAKITA 529922-0 kogus
085-2	Stator Assembly MAKITA 529187-4	`529187-4`	Laos	17.96 €	Stator Assembly MAKITA 529187-4 kogus
085-2	Stator Assembly MAKITA 529187-4	`529187-4`	Laos	17.96 €	Stator Assembly MAKITA 529187-4 kogus
086	Controller MAKITA 620241-8	`620241-8`	Tellimisel	109.43 €	Controller MAKITA 620241-8 kogus
086-1	Controller MAKITA 620G68-8	`620G68-8`	Tellimisel	122.00 €	Controller MAKITA 620G68-8 kogus
086-2	Controller MAKITA 620U75-5	`620U75-5`	Tellimisel	102.07 €	Controller MAKITA 620U75-5 kogus
087	Spare Part MAKITA 187687-6	`187687-6`	Tellimisel	19.00 €	Spare Part MAKITA 187687-6 kogus
087-1	Housing Set MAKITA 183A34-5	`183A34-5`	Tellimisel	21.19 €	Housing Set MAKITA 183A34-5 kogus
087-1	Housing Set MAKITA 183A34-5	`183A34-5`	Tellimisel	21.19 €	Housing Set MAKITA 183A34-5 kogus
087-2	Housing Set MAKITA 183C02-0	`183C02-0`	Tellimisel	20.48 €	Housing Set MAKITA 183C02-0 kogus
087-2	Housing Set MAKITA 183C02-0	`183C02-0`	Tellimisel	20.48 €	Housing Set MAKITA 183C02-0 kogus
087-3	Housing Set MAKITA 183C02-0	`183C02-0`	Tellimisel	20.48 €	Housing Set MAKITA 183C02-0 kogus
088	Unnamed Spare Part MAKITA 815B57-8	`815B57-8`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 815B57-8 kogus
089	Unnamed Spare Part MAKITA 815A38-6	`815A38-6`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 815A38-6 kogus
090	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
090-1	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
091	Spare Part MAKITA 187687-6	`187687-6`	Tellimisel	19.00 €	Spare Part MAKITA 187687-6 kogus
091-1	Housing Set MAKITA 183A34-5	`183A34-5`	Tellimisel	21.19 €	Housing Set MAKITA 183A34-5 kogus
091-1	Housing Set MAKITA 183A34-5	`183A34-5`	Tellimisel	21.19 €	Housing Set MAKITA 183A34-5 kogus
091-2	Housing Set MAKITA 183C02-0	`183C02-0`	Tellimisel	20.48 €	Housing Set MAKITA 183C02-0 kogus
091-2	Housing Set MAKITA 183C02-0	`183C02-0`	Tellimisel	20.48 €	Housing Set MAKITA 183C02-0 kogus
091-3	Housing Set MAKITA 183C02-0	`183C02-0`	Tellimisel	20.48 €	Housing Set MAKITA 183C02-0 kogus
092	Forward Reverse Change Lever MAKITA 453124-5	`453124-5`	Tellimisel	0.99 €	Forward Reverse Change Lever MAKITA 453124-5 kogus
093	Switch Lever MAKITA 453123-7	`453123-7`	Tellimisel	0.99 €	Switch Lever MAKITA 453123-7 kogus
094	Switch MAKITA 650709-0	`650709-0`	Tellimisel	14.59 €	Switch MAKITA 650709-0 kogus
095	Torsion Spring 6 MAKITA 233598-4	`233598-4`	Tellimisel	0.99 €	Torsion Spring 6 MAKITA 233598-4 kogus
096	Opener MAKITA 313226-8	`313226-8`	Tellimisel	1.00 €	Opener MAKITA 313226-8 kogus
097	Terminal MAKITA 644808-8	`644808-8`	Laos	5.00 €	Terminal MAKITA 644808-8 kogus
098	Cushion MAKITA 424476-1	`424476-1`	Tellimisel	0.99 €	Cushion MAKITA 424476-1 kogus
099	Battery Housing Set MAKITA 187377-1	`187377-1`	Tellimisel	5.89 €	Battery Housing Set MAKITA 187377-1 kogus
100	Rubber Pin 5 - BTW251 MAKITA 263036-2	`263036-2`	Laos	1.68 €	Rubber Pin 5 - BTW251 MAKITA 263036-2 kogus
101	Pin 1.5 MAKITA 268184-2	`268184-2`	Tellimisel	0.99 €	Pin 1.5 MAKITA 268184-2 kogus
102	Cushion Rubber MAKITA 424473-7	`424473-7`	Tellimisel	1.54 €	Cushion Rubber MAKITA 424473-7 kogus
103	Cushion Rubber MAKITA 424473-7	`424473-7`	Tellimisel	1.54 €	Cushion Rubber MAKITA 424473-7 kogus
104	Battery Housing Set MAKITA 187377-1	`187377-1`	Tellimisel	5.89 €	Battery Housing Set MAKITA 187377-1 kogus
105	Unnamed Spare Part MAKITA 893072-0	`893072-0`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 893072-0 kogus
106	Clear Label MAKITA 890994-5	`890994-5`	Tellimisel	0.99 €	Clear Label MAKITA 890994-5 kogus
107	Sponge MAKITA 424734-5	`424734-5`	Tellimisel	0.99 €	Sponge MAKITA 424734-5 kogus
107	Sponge MAKITA 424734-5	`424734-5`	Tellimisel	0.99 €	Sponge MAKITA 424734-5 kogus
