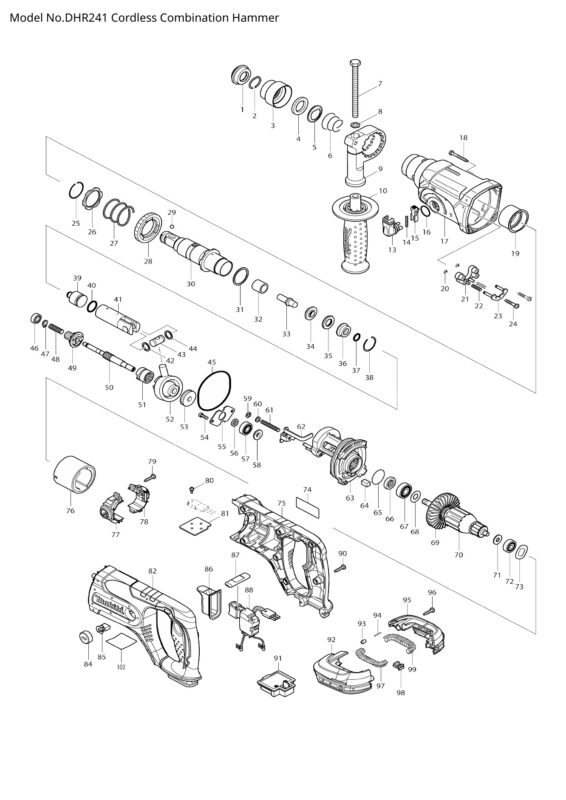

Makita DHR241 varuosad ja varuosajoonised

Näita varuosi (104)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Cap 35 MAKITA 286263-4	`286263-4`	Tellimisel	1.12 €	Cap 35 MAKITA 286263-4 kogus
002	Ring Spring 19 MAKITA 233940-9	`233940-9`	Tellimisel	0.99 €	Ring Spring 19 MAKITA 233940-9 kogus
003	Chuck Cover MAKITA 417629-9	`417629-9`	Tellimisel	0.99 €	Chuck Cover MAKITA 417629-9 kogus
004	Ring 21 MAKITA 257241-1	`257241-1`	Tellimisel	0.99 €	Ring 21 MAKITA 257241-1 kogus
005	Guide Washer MAKITA 345187-4	`345187-4`	Tellimisel	0.99 €	Guide Washer MAKITA 345187-4 kogus
006	Conical Compression Spring 21 MAKITA 233916-6	`233916-6`	Tellimisel	0.99 €	Conical Compression Spring 21 MAKITA 233916-6 kogus
007	Hex Bolt M8 × 120 MAKITA 921923-8	`921923-8`	Tellimisel	0.99 €	Hex Bolt M8 × 120 MAKITA 921923-8 kogus
008	Hex Washer MAKITA 345280-4	`345280-4`	Tellimisel	0.99 €	Hex Washer MAKITA 345280-4 kogus
009	Grip Base MAKITA 417630-4	`417630-4`	Tellimisel	1.40 €	Grip Base MAKITA 417630-4 kogus
010	Grip 36 Assembly MAKITA 158057-6	`158057-6`	Tellimisel	4.21 €	Grip 36 Assembly MAKITA 158057-6 kogus
013	Change Lever Assembly MAKITA 162245-9	`162245-9`	Tellimisel	1.40 €	Change Lever Assembly MAKITA 162245-9 kogus
014	Compression Spring 3 MAKITA 233459-8	`233459-8`	Tellimisel	0.99 €	Compression Spring 3 MAKITA 233459-8 kogus
015	Lock Button MAKITA 419192-8	`419192-8`	Tellimisel	0.99 €	Lock Button MAKITA 419192-8 kogus
016	O-Ring 17 MAKITA 213278-8	`213278-8`	Tellimisel	0.99 €	O-Ring 17 MAKITA 213278-8 kogus
017	Gear Housing Assembly MAKITA 158216-2	`158216-2`	Tellimisel	16.84 €	Gear Housing Assembly MAKITA 158216-2 kogus
018	Tapping Screw 4 × 35 mm MAKITA 266351-3	`266351-3`	Tellimisel	0.99 €	Tapping Screw 4 × 35 mm MAKITA 266351-3 kogus
019	Needle Bearing Complete MAKITA 153290-5	`153290-5`	Tellimisel	4.21 €	Needle Bearing Complete MAKITA 153290-5 kogus
020	Stop Ring E-3 MAKITA 961017-7	`961017-7`	Tellimisel	0.99 €	Stop Ring E-3 MAKITA 961017-7 kogus
021	Guide Base MAKITA 417796-0	`417796-0`	Tellimisel	0.99 €	Guide Base MAKITA 417796-0 kogus
022	Compression Spring 4 MAKITA 233344-5	`233344-5`	Tellimisel	0.99 €	Compression Spring 4 MAKITA 233344-5 kogus
023	Lock Plate Complete MAKITA 163430-7	`163430-7`	Tellimisel	1.40 €	Lock Plate Complete MAKITA 163430-7 kogus
024	Tapping Screw 4 × 25 mm MAKITA 266374-1	`266374-1`	Tellimisel	0.99 €	Tapping Screw 4 × 25 mm MAKITA 266374-1 kogus
025	Ring Spring MAKITA 233929-7	`233929-7`	Tellimisel	0.99 €	Ring Spring MAKITA 233929-7 kogus
026	Washer 31 MAKITA 267460-1	`267460-1`	Tellimisel	1.12 €	Washer 31 MAKITA 267460-1 kogus
027	Compression Spring 32 MAKITA 233401-9	`233401-9`	Tellimisel	1.12 €	Compression Spring 32 MAKITA 233401-9 kogus
028	Spur Gear 51 MAKITA 227109-5	`227109-5`	Tellimisel	8.42 €	Spur Gear 51 MAKITA 227109-5 kogus
029	Steel Ball 7.0 MAKITA 216022-2	`216022-2`	Laos	0.99 €	Steel Ball 7.0 MAKITA 216022-2 kogus
030	Tool Holder Assembly MAKITA 158574-6	`158574-6`	Tellimisel	28.06 €	Tool Holder Assembly MAKITA 158574-6 kogus
031	Flat Washer 28 MAKITA 267229-3	`267229-3`	Tellimisel	0.99 €	Flat Washer 28 MAKITA 267229-3 kogus
032	Sleeve 9 MAKITA 331769-8	`331769-8`	Tellimisel	2.81 €	Sleeve 9 MAKITA 331769-8 kogus
033	Impact Bolt MAKITA 324669-9	`324669-9`	Tellimisel	2.81 €	Impact Bolt MAKITA 324669-9 kogus
034	Ring 10 MAKITA 324402-9	`324402-9`	Tellimisel	1.40 €	Ring 10 MAKITA 324402-9 kogus
035	Cushion Ring MAKITA 421955-0	`421955-0`	Tellimisel	1.00 €	Cushion Ring MAKITA 421955-0 kogus
036	O Ring Case MAKITA 324216-6	`324216-6`	Tellimisel	4.21 €	O Ring Case MAKITA 324216-6 kogus
037	O-Ring 9 MAKITA 213073-6	`213073-6`	Laos	1.00 €	O-Ring 9 MAKITA 213073-6 kogus
038	Ring Spring 28 MAKITA 233917-4	`233917-4`	Tellimisel	0.99 €	Ring Spring 28 MAKITA 233917-4 kogus
039	Striker MAKITA 324214-0	`324214-0`	Tellimisel	2.81 €	Striker MAKITA 324214-0 kogus
040	O-Ring 16 MAKITA 213227-5	`213227-5`	Tellimisel	0.99 €	O-Ring 16 MAKITA 213227-5 kogus
041	Piston Cylinder MAKITA 318132-2	`318132-2`	Tellimisel	19.64 €	Piston Cylinder MAKITA 318132-2 kogus
042	Flat Washer 12 MAKITA 267104-3	`267104-3`	Tellimisel	0.99 €	Flat Washer 12 MAKITA 267104-3 kogus
043	Piston Joint MAKITA 324215-8	`324215-8`	Tellimisel	1.40 €	Piston Joint MAKITA 324215-8 kogus
044	Flat Washer 12 MAKITA 267104-3	`267104-3`	Tellimisel	0.99 €	Flat Washer 12 MAKITA 267104-3 kogus
045	O-Ring 63 MAKITA 213727-5	`213727-5`	Tellimisel	2.81 €	O-Ring 63 MAKITA 213727-5 kogus
046	Ball Bearing 606 ZZ MAKITA 211012-0	`211012-0`	Tellimisel	4.21 €	Ball Bearing 606 ZZ MAKITA 211012-0 kogus
046-1	Ball Bearing 606ZZ MAKITA 210028-2	`210028-2`	Tellimisel	1.00 €	Ball Bearing 606ZZ MAKITA 210028-2 kogus
046-1	Ball Bearing 606ZZ MAKITA 210028-2	`210028-2`	Tellimisel	1.00 €	Ball Bearing 606ZZ MAKITA 210028-2 kogus
047	Retaining Ring MAKITA 961003-8	`961003-8`	Tellimisel	0.99 €	Retaining Ring MAKITA 961003-8 kogus
048	Compression Spring 7 MAKITA 233343-7	`233343-7`	Tellimisel	0.99 €	Compression Spring 7 MAKITA 233343-7 kogus
049	Spur Gear 10 MAKITA 227179-4	`227179-4`	Tellimisel	8.42 €	Spur Gear 10 MAKITA 227179-4 kogus
050	Cam Shaft MAKITA 324668-1	`324668-1`	Tellimisel	11.22 €	Cam Shaft MAKITA 324668-1 kogus
051	Clutch Cam MAKITA 331992-5	`331992-5`	Tellimisel	5.61 €	Clutch Cam MAKITA 331992-5 kogus
052	Swash Bearing 10 MAKITA 219014-0	`219014-0`	Tellimisel	25.25 €	Swash Bearing 10 MAKITA 219014-0 kogus
052-1	Swash Bearing 10 MAKITA 219021-3	`219021-3`	Tellimisel	14.03 €	Swash Bearing 10 MAKITA 219021-3 kogus
053	Helical Gear 25 MAKITA 226632-7	`226632-7`	Tellimisel	5.61 €	Helical Gear 25 MAKITA 226632-7 kogus
053-1	Helical Gear 25 MAKITA 226985-4	`226985-4`	Tellimisel	1.53 €	Helical Gear 25 MAKITA 226985-4 kogus
054	Hex Socket Head Bolt M4 × 12 MAKITA 266273-7	`266273-7`	Tellimisel	0.99 €	Hex Socket Head Bolt M4 × 12 MAKITA 266273-7 kogus
055	Bearing Retainer MAKITA 345179-3	`345179-3`	Tellimisel	0.99 €	Bearing Retainer MAKITA 345179-3 kogus
056	Flat Washer 8 MAKITA 267234-0	`267234-0`	Tellimisel	0.99 €	Flat Washer 8 MAKITA 267234-0 kogus
057	Ball Bearing 608ZZ MAKITA 211032-4	`211032-4`	Laos	1.68 €	Ball Bearing 608ZZ MAKITA 211032-4 kogus
057-1	Ball Bearing 608ZZ MAKITA 210029-0	`210029-0`	Tellimisel	1.12 €	Ball Bearing 608ZZ MAKITA 210029-0 kogus
057-1	Ball Bearing 608ZZ MAKITA 210029-0	`210029-0`	Tellimisel	1.12 €	Ball Bearing 608ZZ MAKITA 210029-0 kogus
058	Ring 8 MAKITA 324212-4	`324212-4`	Tellimisel	2.81 €	Ring 8 MAKITA 324212-4 kogus
059	Stop Ring MAKITA 961011-9	`961011-9`	Laos	0.99 €	Stop Ring MAKITA 961011-9 kogus
060	Flat Washer 5 MAKITA 941102-2	`941102-2`	Tellimisel	0.99 €	Flat Washer 5 MAKITA 941102-2 kogus
061	Compression Spring 6 MAKITA 233342-9	`233342-9`	Tellimisel	0.99 €	Compression Spring 6 MAKITA 233342-9 kogus
062	Change Plate MAKITA 345363-0	`345363-0`	Tellimisel	1.00 €	Change Plate MAKITA 345363-0 kogus
063	Inner Housing Complete MAKITA 141574-3	`141574-3`	Tellimisel	14.03 €	Inner Housing Complete MAKITA 141574-3 kogus
065	O-Ring 26 MAKITA 213407-3	`213407-3`	Tellimisel	0.99 €	O-Ring 26 MAKITA 213407-3 kogus
066	Oil Seal 10 MAKITA 213077-8	`213077-8`	Tellimisel	4.21 €	Oil Seal 10 MAKITA 213077-8 kogus
067	Ball Bearing 6000 DDW MAKITA 210059-1	`210059-1`	Laos	5.61 €	Ball Bearing 6000 DDW MAKITA 210059-1 kogus
068	Flat Washer 10 MAKITA 267213-8	`267213-8`	Tellimisel	0.99 €	Flat Washer 10 MAKITA 267213-8 kogus
069	Fan 64 MAKITA 240092-9	`240092-9`	Tellimisel	1.00 €	Fan 64 MAKITA 240092-9 kogus
070	Armature Assembly MAKITA 519226-8	`519226-8`	Tellimisel	30.87 €	Armature Assembly MAKITA 519226-8 kogus
071	Flat Washer 7 MAKITA 253823-7	`253823-7`	Tellimisel	0.99 €	Flat Washer 7 MAKITA 253823-7 kogus
072	Ball Bearing 627 DDW MAKITA 210023-2	`210023-2`	Tellimisel	2.81 €	Ball Bearing 627 DDW MAKITA 210023-2 kogus
073	Wave Washer 15 MAKITA 267816-8	`267816-8`	Tellimisel	0.99 €	Wave Washer 15 MAKITA 267816-8 kogus
074	Unnamed Spare Part MAKITA 815J32-2	`815J32-2`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 815J32-2 kogus
075	Housing Set - HR241D MAKITA 188577-6	`188577-6`	Tellimisel	19.64 €	Housing Set - HR241D MAKITA 188577-6 kogus
075-1	Housing Set - HR241D MAKITA 188577-6	`188577-6`	Tellimisel	19.64 €	Housing Set - HR241D MAKITA 188577-6 kogus
076	Yoke Unit MAKITA 638020-0	`638020-0`	Tellimisel	16.84 €	Yoke Unit MAKITA 638020-0 kogus
077	Brush Holder Assembly - BHR241 MAKITA 638926-2	`638926-2`	Tellimisel	11.22 €	Brush Holder Assembly - BHR241 MAKITA 638926-2 kogus
079	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
080	Pan Head Screw M3 × 10 MAKITA 911011-9	`911011-9`	Tellimisel	0.99 €	Pan Head Screw M3 × 10 MAKITA 911011-9 kogus
081	Heat Sink MAKITA 689070-8	`689070-8`	Tellimisel	2.81 €	Heat Sink MAKITA 689070-8 kogus
082	Housing Set - HR241D MAKITA 188577-6	`188577-6`	Tellimisel	19.64 €	Housing Set - HR241D MAKITA 188577-6 kogus
082-1	Housing Set - HR241D MAKITA 188577-6	`188577-6`	Tellimisel	19.64 €	Housing Set - HR241D MAKITA 188577-6 kogus
084	Holder Cap MAKITA 643829-7	`643829-7`	Laos	0.99 €	Holder Cap MAKITA 643829-7 kogus
085	Carbon Brush CB-441 MAKITA 194435-6	`194435-6`	Tellimisel	5.61 €	Carbon Brush CB-441 MAKITA 194435-6 kogus
085-1	Carbon Brush CB-441 MAKITA 195022-4	`195022-4`	Laos	5.61 €	Carbon Brush CB-441 MAKITA 195022-4 kogus
086	Switch Cover MAKITA 424111-1	`424111-1`	Laos	1.40 €	Switch Cover MAKITA 424111-1 kogus
087	Forward Reverse Change Lever MAKITA 450615-7	`450615-7`	Tellimisel	0.99 €	Forward Reverse Change Lever MAKITA 450615-7 kogus
088	Switch - BHR241 MAKITA 650655-7	`650655-7`	Tellimisel	36.48 €	Switch - BHR241 MAKITA 650655-7 kogus
090	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
091	Terminal MAKITA 644808-8	`644808-8`	Laos	5.00 €	Terminal MAKITA 644808-8 kogus
092	Battery Housing Set MAKITA 187212-3	`187212-3`	Tellimisel	11.22 €	Battery Housing Set MAKITA 187212-3 kogus
093	Rubber Pin 5 - BTW251 MAKITA 263036-2	`263036-2`	Laos	1.68 €	Rubber Pin 5 - BTW251 MAKITA 263036-2 kogus
094	Pin 1.5 MAKITA 268184-2	`268184-2`	Tellimisel	0.99 €	Pin 1.5 MAKITA 268184-2 kogus
095	Battery Housing Set MAKITA 187212-3	`187212-3`	Tellimisel	11.22 €	Battery Housing Set MAKITA 187212-3 kogus
096	Tapping Screw PT 4 × 18 MAKITA 266326-2	`266326-2`	Tellimisel	0.99 €	Tapping Screw PT 4 × 18 MAKITA 266326-2 kogus
097	Cushion Rubber MAKITA 424042-4	`424042-4`	Tellimisel	2.81 €	Cushion Rubber MAKITA 424042-4 kogus
098	Cushion MAKITA 424476-1	`424476-1`	Tellimisel	0.99 €	Cushion MAKITA 424476-1 kogus
099	Cushion Rubber MAKITA 424042-4	`424042-4`	Tellimisel	2.81 €	Cushion Rubber MAKITA 424042-4 kogus
100	Unnamed Spare Part MAKITA 815J42-9	`815J42-9`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 815J42-9 kogus
101	Tool Holder Assembly MAKITA 123100-0	`123100-0`	Tellimisel	44.90 €	Tool Holder Assembly MAKITA 123100-0 kogus
