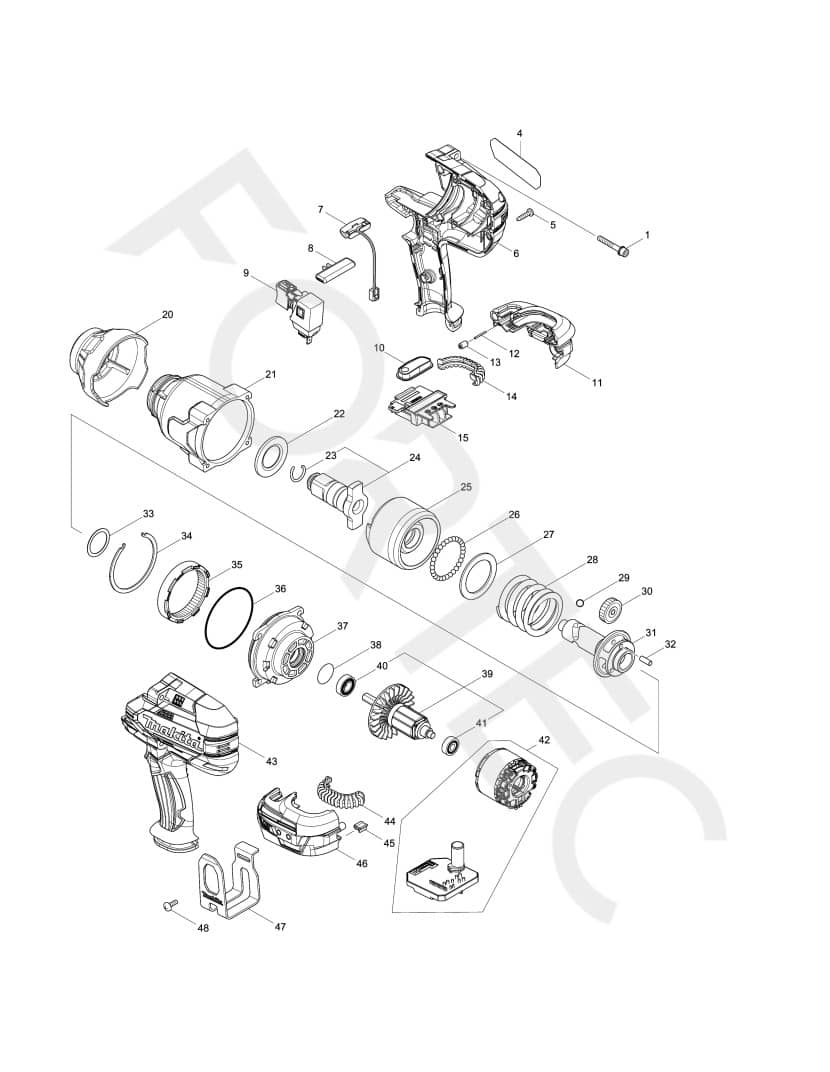

Makita DTW1001Z varuosad
Makita DTW1001Z varuosad
Makita DTW1001Z varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Hex Socket Head Bolt M5 × 35 MAKITA 251476-6 | 251476-6 | Pole laos | 1 € | |
| 001-1 | Toode pole süsteemis | 265D13-4 | – | – | – |
| 001-2 | Toode pole süsteemis | 265E44-9 | – | – | – |
| 004 | Toode pole süsteemis | 851K74-8 | – | – | – |
| 004-1 | Toode pole süsteemis | 857K63-1 | – | – | – |
| 005 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Pole laos | 0.99 € | |
| 005-1 | Toode pole süsteemis | 265995-6 | – | – | – |
| 005-2 | Toode pole süsteemis | 265E16-4 | – | – | – |
| 006 | Toode pole süsteemis | 183C08-8 | – | – | – |
| 006-1 | Housing Set MAKITA 183H36-3 | 183H36-3 | Pole laos | 16.84 € | |
| 006-2 | Toode pole süsteemis | 1830A6-1 | – | – | – |
| 007 | LED Circuit MAKITA 620351-1 | 620351-1 | Pole laos | 14.59 € | |
| 008 | Forward Reverse Change Lever MAKITA 456268-0 | 456268-0 | Pole laos | 1.12 € | |
| 009 | Switch Complete MAKITA 143416-7 | 143416-7 | Laos | 29.05 € | |
| 010 | Switch Plate Complete MAKITA 143417-5 | 143417-5 | Pole laos | 2.81 € | |
| 011 | Battery Housing Set MAKITA 183C12-7 | 183C12-7 | Pole laos | 16.42 € | |
| 012 | Pin 1.5 MAKITA 268284-8 | 268284-8 | Pole laos | 0.99 € | |
| 013 | Toode pole süsteemis | 263036-2 | – | – | – |
| 014 | Cushion Rubber MAKITA 424773-5 | 424773-5 | Laos | 1.12 € | |
| 014-1 | Cushion Rubber MAKITA 422A56-3 | 422A56-3 | Pole laos | 1 € | |
| 015 | Terminal MAKITA 643899-6 | 643899-6 | Pole laos | 3.37 € | |
| 020 | Toode pole süsteemis | 424775-1 | – | – | – |
| 020-1 | Bumper MAKITA 424978-7 | 424978-7 | Pole laos | 4.36 € | |
| 021 | Toode pole süsteemis | 143411-7 | – | – | – |
| 021-1 | Hammer Case Complete MAKITA 144473-8 | 144473-8 | Pole laos | 28.06 € | |
| 021-2 | Toode pole süsteemis | 1411D0-6 | – | – | – |
| 022 | Washer 25 MAKITA 346948-5 | 346948-5 | Pole laos | 1.68 € | |
| 023 | Toode pole süsteemis | 231920-9 | – | – | – |
| 023-1 | Ring Spring 16 MAKITA 232334-5 | 232334-5 | Pole laos | 1.12 € | |
| 024 | Toode pole süsteemis | 135716-9 | – | – | – |
| 024-1 | Anvil W Assembly MAKITA 135803-4 | 135803-4 | Laos | 90.5 € | |
| 025 | Hammer MAKITA 326612-4 | 326612-4 | Pole laos | 59.49 € | |
| 026 | Toode pole süsteemis | 216002-8 | – | – | – |
| 027 | Flat Washer 38 MAKITA 267493-6 | 267493-6 | Pole laos | 1.26 € | |
| 028 | Compression Spring 38 MAKITA 234383-8 | 234383-8 | Pole laos | 10.53 € | |
| 029 | Steel Ball 7.1 MAKITA 216009-4 | 216009-4 | Pole laos | 0.99 € | |
| 030 | Spur Gear 24 MAKITA 227391-6 | 227391-6 | Pole laos | 2.81 € | |
| 030-1 | Spur Gear 24 MAKITA 226879-3 | 226879-3 | Pole laos | 16.84 € | |
| 030-2 | Spur Gear 24 MAKITA 226880-8 | 226880-8 | Pole laos | 2.67 € | |
| 031 | Spindle MAKITA 326611-6 | 326611-6 | Pole laos | 102.57 € | |
| 032 | Pin 5 MAKITA 268079-9 | 268079-9 | Pole laos | 1 € | |
| 033 | Flat Washer 25 MAKITA 267494-4 | 267494-4 | Pole laos | 0.99 € | |
| 033-1 | Flat Washer 26 MAKITA 267127-1 | 267127-1 | Pole laos | 0.99 € | |
| 034 | Retainer MAKITA 346947-7 | 346947-7 | Pole laos | 1.54 € | |
| 035 | Internal Spur Gear 54 MAKITA 227392-4 | 227392-4 | Pole laos | 10.53 € | |
| 036 | O-Ring 67 MAKITA 213720-9 | 213720-9 | Pole laos | 1 € | |
| 037 | Internal Gear Case Assembly MAKITA 135718-5 | 135718-5 | Pole laos | 29.74 € | |
| 037-1 | Toode pole süsteemis | 137272-5 | – | – | – |
| 038 | Toode pole süsteemis | 213961-7 | – | – | – |
| 039 | Rotor Assembly MAKITA 519384-0 | 519384-0 | Pole laos | 116.45 € | |
| 039-1 | Rotor MAKITA 519593-1 | 519593-1 | Pole laos | 93.78 € | |
| 039-2 | Toode pole süsteemis | 519592-3 | – | – | – |
| 040 | Ball Bearing 6900 DDW MAKITA 210069-8 | 210069-8 | Pole laos | 8.42 € | |
| 041 | Ball Bearing 607ZZ MAKITA 211022-7 | 211022-7 | Pole laos | 5.61 € | |
| 042 | Toode pole süsteemis | 629170-2 | – | – | – |
| 042-1 | Stator Complete MAKITA 629330-6 | 629330-6 | Pole laos | 154.33 € | |
| 042-2 | Stator MAKITA 629B59-6 | 629B59-6 | Pole laos | 22.53 € | |
| 043 | Toode pole süsteemis | 183C08-8 | – | – | – |
| 043-1 | Housing Set MAKITA 183H36-3 | 183H36-3 | Pole laos | 16.84 € | |
| 043-2 | Toode pole süsteemis | 1830A6-1 | – | – | – |
| 044 | Cushion Rubber MAKITA 424773-5 | 424773-5 | Laos | 1.12 € | |
| 044-1 | Cushion Rubber MAKITA 422A56-3 | 422A56-3 | Pole laos | 1 € | |
| 045 | Toode pole süsteemis | 424517-3 | – | – | – |
| 046 | Battery Housing Set MAKITA 183C12-7 | 183C12-7 | Pole laos | 16.42 € | |
| 047 | Hook MAKITA 346949-3 | 346949-3 | Laos | 4.21 € | |
| 048 | Truss Head Screw M4 × 12 MAKITA 251314-2 | 251314-2 | Laos | 0.99 € | |
| 049 | Toode pole süsteemis | 857K64-9 | – | – | – |
| 050 | Controller MAKITA 620K29-2 | 620K29-2 | Pole laos | 122 € | |
| 050-1 | Toode pole süsteemis | 620N12-7 | – | – | – |
| 051 | Pan Head Screw M2 × 6 MAKITA 652119-7 | 652119-7 | Pole laos | 0.5 € |
