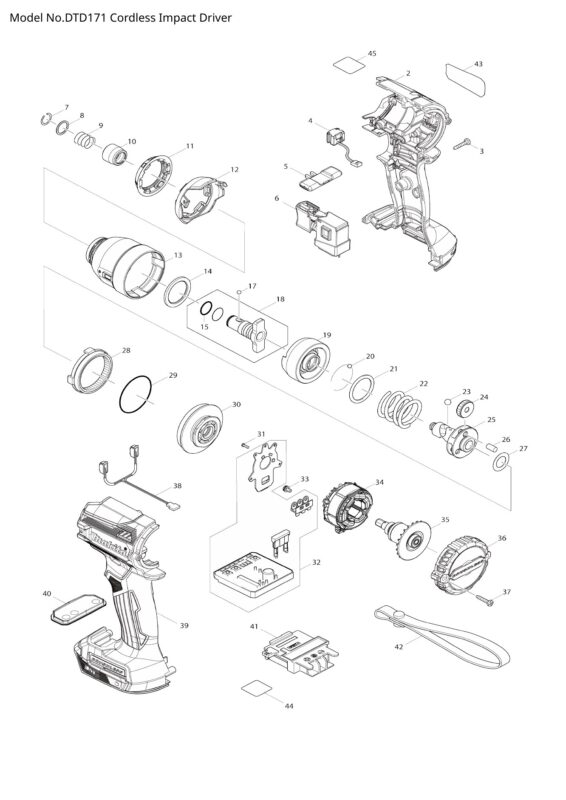

Makita DTD171 varuosad ja varuosajoonised

Näita varuosi (47)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
002	Toode pole süsteemis	`183K87-4`	–	–	–
002-1	Housing MAKITA 183N06-8	`183N06-8`	Tellimisel	15.64 €	Housing MAKITA 183N06-8 kogus
003	Tapping Screw PT 3 × 16 MAKITA 266130-9	`266130-9`	Laos	0.99 €	Tapping Screw PT 3 × 16 MAKITA 266130-9 kogus
004	Switch Unit MAKITA 632L84-8	`632L84-8`	Tellimisel	9.82 €	Switch Unit MAKITA 632L84-8 kogus
005	Forward/reverse Change Lever MAKITA 455053-8	`455053-8`	Laos	1.00 €	Forward/reverse Change Lever MAKITA 455053-8 kogus
006	Switch Complete MAKITA 140B49-1	`140B49-1`	Tellimisel	18.24 €	Switch Complete MAKITA 140B49-1 kogus
007	Ring Spring 11 MAKITA 231951-8	`231951-8`	Laos	0.99 €	Ring Spring 11 MAKITA 231951-8 kogus
008	Flat Washer 12 MAKITA 267085-1	`267085-1`	Laos	0.99 €	Flat Washer 12 MAKITA 267085-1 kogus
009	COMPRESSION SPRING 13, 6935FD	`233005-7`	Laos	1.00 €	COMPRESSION SPRING 13, 6935FD kogus
010	Bit Sleeve MAKITA 326072-0	`326072-0`	Laos	2.81 €	Bit Sleeve MAKITA 326072-0 kogus
011	Bumper MAKITA 422269-0	`422269-0`	Laos	1.40 €	Bumper MAKITA 422269-0 kogus
012	Hammer Case Cover MAKITA 458484-0	`458484-0`	Tellimisel	1.22 €	Hammer Case Cover MAKITA 458484-0 kogus
013	Hammer Case Complete MAKITA 140A51-8	`140A51-8`	Tellimisel	30.87 €	Hammer Case Complete MAKITA 140A51-8 kogus
014	Support Washer MAKITA 261160-5	`261160-5`	Tellimisel	1.00 €	Support Washer MAKITA 261160-5 kogus
015	O-ring 12 MAKITA 213118-0	`213118-0`	Tellimisel	0.99 €	O-ring 12 MAKITA 213118-0 kogus
017	Steel Ball 3.5 - TD140D MAKITA 216001-0	`216001-0`	Laos	0.99 €	Steel Ball 3.5 - TD140D MAKITA 216001-0 kogus
017-1	Steel Ball 3.5 MAKITA 216040-0	`216040-0`	Laos	0.99 €	Steel Ball 3.5 MAKITA 216040-0 kogus
018	Anvil Assembly MAKITA 136065-7	`136065-7`	Tellimisel	25.25 €	Anvil Assembly MAKITA 136065-7 kogus
019	Hammer MAKITA 327114-3	`327114-3`	Tellimisel	35.92 €	Hammer MAKITA 327114-3 kogus
019-1	Hammer MAKITA 327750-5	`327750-5`	Tellimisel	6.32 €	Hammer MAKITA 327750-5 kogus
020	Steel Ball 3.5 - TD140D MAKITA 216001-0	`216001-0`	Laos	0.99 €	Steel Ball 3.5 - TD140D MAKITA 216001-0 kogus
020-1	Steel Ball 3.5 MAKITA 216040-0	`216040-0`	Laos	0.99 €	Steel Ball 3.5 MAKITA 216040-0 kogus
021	Flat washer 24 MAKITA 267175-0	`267175-0`	Tellimisel	0.99 €	Flat washer 24 MAKITA 267175-0 kogus
022	Compression Spring 23B MAKITA 232459-5	`232459-5`	Tellimisel	2.81 €	Compression Spring 23B MAKITA 232459-5 kogus
023	Steel Ball 5.6 - TD140D MAKITA 216011-7	`216011-7`	Tellimisel	0.99 €	Steel Ball 5.6 - TD140D MAKITA 216011-7 kogus
024	Spur Gear 22 MAKITA 227338-0	`227338-0`	Tellimisel	6.17 €	Spur Gear 22 MAKITA 227338-0 kogus
025	Spindle MAKITA 327113-5	`327113-5`	Tellimisel	35.08 €	Spindle MAKITA 327113-5 kogus
026	Pin 5 MAKITA 268311-1	`268311-1`	Tellimisel	1.00 €	Pin 5 MAKITA 268311-1 kogus
027	Thin Washer 15 MAKITA 253314-8	`253314-8`	Tellimisel	1.00 €	Thin Washer 15 MAKITA 253314-8 kogus
028	Internal Gear 51 MAKITA 226182-2	`226182-2`	Tellimisel	4.21 €	Internal Gear 51 MAKITA 226182-2 kogus
029	O-Ring 40 MAKITA 213507-9	`213507-9`	Tellimisel	0.99 €	O-Ring 40 MAKITA 213507-9 kogus
030	Bearing Box Assembly MAKITA 143976-9	`143976-9`	Tellimisel	6.60 €	Bearing Box Assembly MAKITA 143976-9 kogus
031	Tapping Screw 2 × 6 mm MAKITA 266490-9	`266490-9`	Tellimisel	0.99 €	Tapping Screw 2 × 6 mm MAKITA 266490-9 kogus
032	Controller - DTD171 MAKITA 620848-0	`620848-0`	Tellimisel	70.15 €	Controller - DTD171 MAKITA 620848-0 kogus
032-1	Controller MAKITA 620D48-6	`620D48-6`	Laos	84.18 €	Controller MAKITA 620D48-6 kogus
033	Flat head screw M3X6 MAKITA 652069-6	`652069-6`	Tellimisel	0.99 €	Flat head screw M3X6 MAKITA 652069-6 kogus
034	Stator MAKITA 629217-2	`629217-2`	Tellimisel	16.14 €	Stator MAKITA 629217-2 kogus
035	Rotor MAKITA 619408-3	`619408-3`	Tellimisel	45.18 €	Rotor MAKITA 619408-3 kogus
036	Rear Cover MAKITA 458478-5	`458478-5`	Tellimisel	3.51 €	Rear Cover MAKITA 458478-5 kogus
037	Tapping Screw PT 3 × 16 MAKITA 266130-9	`266130-9`	Laos	0.99 €	Tapping Screw PT 3 × 16 MAKITA 266130-9 kogus
038	LED Circuit MAKITA 620849-8	`620849-8`	Tellimisel	7.02 €	LED Circuit MAKITA 620849-8 kogus
039	Toode pole süsteemis	`183K87-4`	–	–	–
039-1	Housing MAKITA 183N06-8	`183N06-8`	Tellimisel	15.64 €	Housing MAKITA 183N06-8 kogus
040	Switch Plate Complete MAKITA 140G40-9	`140G40-9`	Tellimisel	2.81 €	Switch Plate Complete MAKITA 140G40-9 kogus
041	Terminal - CL182D MAKITA 643860-3	`643860-3`	Tellimisel	4.21 €	Terminal - CL182D MAKITA 643860-3 kogus
043	Unnamed Spare Part MAKITA 855E98-0	`855E98-0`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 855E98-0 kogus
044	Unnamed Spare Part MAKITA 855F05-9	`855F05-9`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 855F05-9 kogus
