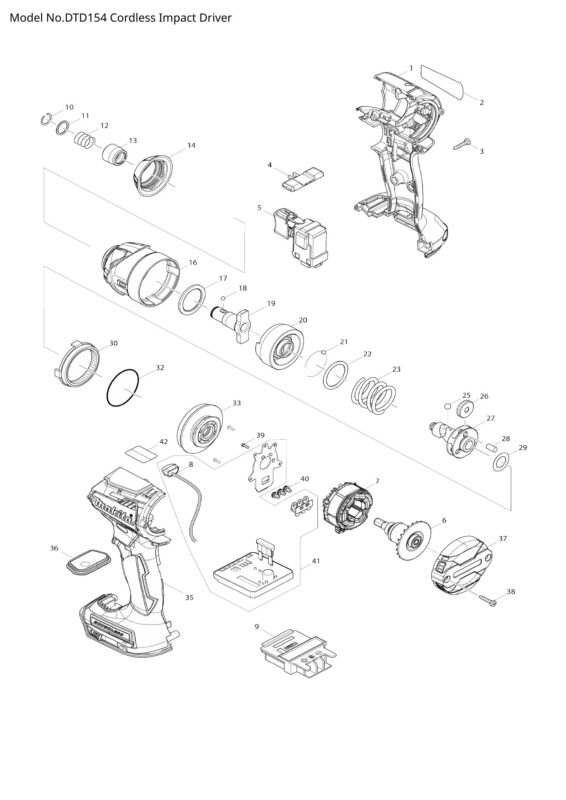

Makita DTD154 varuosad ja varuosajoonised

Näita varuosi (53)Peida varuosad

Nr joonisel	Varuosa	SKU	Laos	Hind	Kogus
001	Housing Set Assembly MAKITA 183E36-5	`183E36-5`	Tellimisel	15.99 €	Housing Set Assembly MAKITA 183E36-5 kogus
001B	Housing Set Assembly MAKITA 183E36-5	`183E36-5`	Tellimisel	15.99 €	Housing Set Assembly MAKITA 183E36-5 kogus
001-1	Housing Set Assembly MAKITA 183E36-5	`183E36-5`	Tellimisel	15.99 €	Housing Set Assembly MAKITA 183E36-5 kogus
002	Name Plate - DTD154 MAKITA 852L16-1	`852L16-1`	Tellimisel	2.00 €	Name Plate - DTD154 MAKITA 852L16-1 kogus
003	Tapping Screw PT 3 × 16 mm MAKITA 266429-2	`266429-2`	Tellimisel	0.99 €	Tapping Screw PT 3 × 16 mm MAKITA 266429-2 kogus
003B	Tapping Screw PT 3 × 16 mm MAKITA 266429-2	`266429-2`	Tellimisel	0.99 €	Tapping Screw PT 3 × 16 mm MAKITA 266429-2 kogus
003-1	Tapping Screw PT 3 × 16 MAKITA 266130-9	`266130-9`	Laos	0.99 €	Tapping Screw PT 3 × 16 MAKITA 266130-9 kogus
004	Forward/reverse Change Lever MAKITA 455053-8	`455053-8`	Laos	1.00 €	Forward/reverse Change Lever MAKITA 455053-8 kogus
005	Switch Assembly MAKITA 143975-1	`143975-1`	Tellimisel	18.24 €	Switch Assembly MAKITA 143975-1 kogus
006	Rotor MAKITA 619408-3	`619408-3`	Tellimisel	45.18 €	Rotor MAKITA 619408-3 kogus
007	Stator MAKITA 629217-2	`629217-2`	Tellimisel	16.14 €	Stator MAKITA 629217-2 kogus
008	LED Circuit MAKITA 620557-1	`620557-1`	Tellimisel	7.02 €	LED Circuit MAKITA 620557-1 kogus
009	Terminal - CL182D MAKITA 643860-3	`643860-3`	Tellimisel	4.21 €	Terminal - CL182D MAKITA 643860-3 kogus
010	Ring Spring 11 MAKITA 231951-8	`231951-8`	Laos	0.99 €	Ring Spring 11 MAKITA 231951-8 kogus
011	Flat Washer 12 MAKITA 267085-1	`267085-1`	Laos	0.99 €	Flat Washer 12 MAKITA 267085-1 kogus
012	COMPRESSION SPRING 13, 6935FD	`233005-7`	Laos	1.00 €	COMPRESSION SPRING 13, 6935FD kogus
013	Bit Sleeve MAKITA 326072-0	`326072-0`	Laos	2.81 €	Bit Sleeve MAKITA 326072-0 kogus
014	Bumper MAKITA 424873-1	`424873-1`	Tellimisel	0.99 €	Bumper MAKITA 424873-1 kogus
016	Hammer Case Complete MAKITA 143951-5	`143951-5`	Tellimisel	14.03 €	Hammer Case Complete MAKITA 143951-5 kogus
017	Nylon Washer 24 MAKITA 261155-8	`261155-8`	Laos	1.00 €	Nylon Washer 24 MAKITA 261155-8 kogus
018	Steel Ball 3.5 - TD140D MAKITA 216001-0	`216001-0`	Laos	0.99 €	Steel Ball 3.5 - TD140D MAKITA 216001-0 kogus
018-1	Steel Ball 3.5 MAKITA 216040-0	`216040-0`	Laos	0.99 €	Steel Ball 3.5 MAKITA 216040-0 kogus
019	Anvil M MAKITA 326508-9	`326508-9`	Laos	9.54 €	Anvil M MAKITA 326508-9 kogus
020	Hammer MAKITA 326711-2	`326711-2`	Tellimisel	20.91 €	Hammer MAKITA 326711-2 kogus
020-1	Hammer MAKITA 327155-9	`327155-9`	Tellimisel	14.03 €	Hammer MAKITA 327155-9 kogus
021	Steel Ball 3.5 - TD140D MAKITA 216001-0	`216001-0`	Laos	0.99 €	Steel Ball 3.5 - TD140D MAKITA 216001-0 kogus
021-1	Steel Ball 3.5 MAKITA 216040-0	`216040-0`	Laos	0.99 €	Steel Ball 3.5 MAKITA 216040-0 kogus
022	Flat washer 24 MAKITA 267175-0	`267175-0`	Tellimisel	0.99 €	Flat washer 24 MAKITA 267175-0 kogus
023	Compression Spring 24 MAKITA 234331-7	`234331-7`	Tellimisel	2.81 €	Compression Spring 24 MAKITA 234331-7 kogus
025	Steel Ball 5.6 MAKITA 216041-8	`216041-8`	Tellimisel	0.99 €	Steel Ball 5.6 MAKITA 216041-8 kogus
026	Spur Gear 22 MAKITA 227338-0	`227338-0`	Tellimisel	6.17 €	Spur Gear 22 MAKITA 227338-0 kogus
026B	Spur Gear 22 MAKITA 227338-0	`227338-0`	Tellimisel	6.17 €	Spur Gear 22 MAKITA 227338-0 kogus
026-1	Spur Gear 22 MAKITA 227350-0	`227350-0`	Tellimisel	1.62 €	Spur Gear 22 MAKITA 227350-0 kogus
027	Spindle MAKITA 326783-7	`326783-7`	Tellimisel	17.96 €	Spindle MAKITA 326783-7 kogus
028	Pin 5 MAKITA 268311-1	`268311-1`	Tellimisel	1.00 €	Pin 5 MAKITA 268311-1 kogus
029	Thin Washer 15 MAKITA 253314-8	`253314-8`	Tellimisel	1.00 €	Thin Washer 15 MAKITA 253314-8 kogus
030	Internal Gear 51 MAKITA 221457-4	`221457-4`	Tellimisel	1.54 €	Internal Gear 51 MAKITA 221457-4 kogus
032	O-Ring 40 MAKITA 213507-9	`213507-9`	Tellimisel	0.99 €	O-Ring 40 MAKITA 213507-9 kogus
033	Bearing Box Assembly MAKITA 143976-9	`143976-9`	Tellimisel	6.60 €	Bearing Box Assembly MAKITA 143976-9 kogus
035	Housing Set Assembly MAKITA 183E36-5	`183E36-5`	Tellimisel	15.99 €	Housing Set Assembly MAKITA 183E36-5 kogus
035B	Housing Set Assembly MAKITA 183E36-5	`183E36-5`	Tellimisel	15.99 €	Housing Set Assembly MAKITA 183E36-5 kogus
035-1	Housing Set Assembly MAKITA 183E36-5	`183E36-5`	Tellimisel	15.99 €	Housing Set Assembly MAKITA 183E36-5 kogus
036	Switch Plate Complete MAKITA 143954-9	`143954-9`	Tellimisel	2.11 €	Switch Plate Complete MAKITA 143954-9 kogus
037	Rear Cover MAKITA 457069-9	`457069-9`	Tellimisel	2.67 €	Rear Cover MAKITA 457069-9 kogus
038	Tapping Screw PT 3 × 16 mm MAKITA 266429-2	`266429-2`	Tellimisel	0.99 €	Tapping Screw PT 3 × 16 mm MAKITA 266429-2 kogus
038B	Tapping Screw PT 3 × 16 mm MAKITA 266429-2	`266429-2`	Tellimisel	0.99 €	Tapping Screw PT 3 × 16 mm MAKITA 266429-2 kogus
038-1	Tapping Screw PT 3 × 16 MAKITA 266130-9	`266130-9`	Laos	0.99 €	Tapping Screw PT 3 × 16 MAKITA 266130-9 kogus
039	Tapping Screw 2 × 6 mm MAKITA 266490-9	`266490-9`	Tellimisel	0.99 €	Tapping Screw 2 × 6 mm MAKITA 266490-9 kogus
039B	Tapping Screw 2 × 6 mm MAKITA 266490-9	`266490-9`	Tellimisel	0.99 €	Tapping Screw 2 × 6 mm MAKITA 266490-9 kogus
039-1	Tapping Screw 2 × 6 MAKITA 265C47-1	`265C47-1`	Tellimisel	0.99 €	Tapping Screw 2 × 6 MAKITA 265C47-1 kogus
040	Flat head screw M3X6 MAKITA 652069-6	`652069-6`	Tellimisel	0.99 €	Flat head screw M3X6 MAKITA 652069-6 kogus
041	Controller MAKITA 620564-4	`620564-4`	Tellimisel	93.44 €	Controller MAKITA 620564-4 kogus
043	Unnamed Spare Part MAKITA 857J31-8	`857J31-8`	Tellimisel	3.00 €	Unnamed Spare Part MAKITA 857J31-8 kogus
