Makita DLM432 varuosad

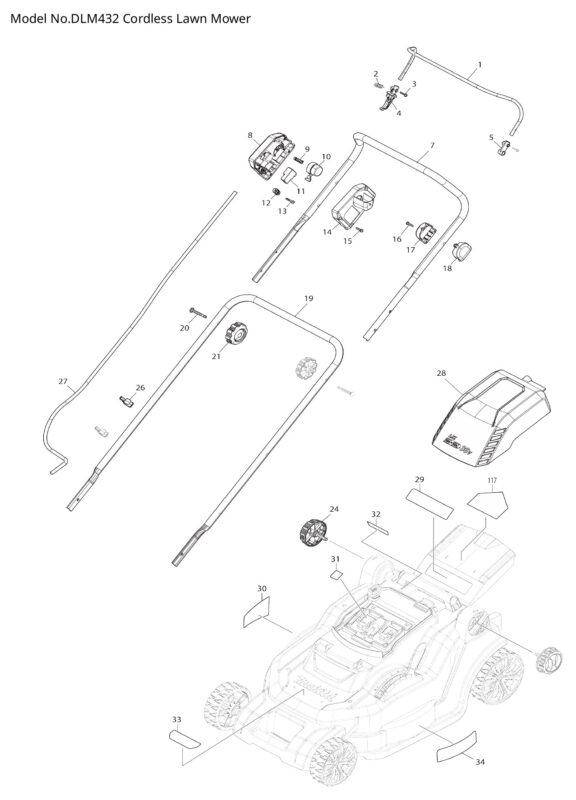

Joonis 1 – Käepide, juhtkang ja kate
Näita varuosi (42)Peida varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Switch Lever MAKITA 326636-0 | 326636-0 | Tellimisel | 5.61 € | |
| 002 | Tension Spring 9 MAKITA 231876-6 | 231876-6 | Tellimisel | 0.99 € | |
| 003 | Pan Head Screw M4 × 20 With Washer MAKITA 911138-5 | 911138-5 | Tellimisel | 0.99 € | |
| 004 | Lever MAKITA 455075-8 | 455075-8 | Tellimisel | 0.99 € | |
| 005 | Arm MAKITA 455078-2 | 455078-2 | Tellimisel | 1.00 € | |
| 007 | Upper Pipe Complete MAKITA 143510-5 | 143510-5 | Tellimisel | 15.58 € | |
| 007-1 | Toode pole süsteemis | 1411B5-2 | – | – | – |
| 008 | Toode pole süsteemis | 459804-1 | – | – | – |
| 009 | Compression Spring 6 MAKITA 233068-3 | 233068-3 | Tellimisel | 0.99 € | |
| 010 | Switch Button MAKITA 455074-0 | 455074-0 | Tellimisel | 0.99 € | |
| 011 | Switch MAKITA 650730-9 | 650730-9 | Tellimisel | 14.03 € | |
| 012 | Cord Clamp MAKITA 687124-5 | 687124-5 | Tellimisel | 0.99 € | |
| 013 | Tapping Screw 4 × 25 MAKITA 265999-8 | 265999-8 | Laos | 1.00 € | |
| 013-1 | Toode pole süsteemis | 265B73-4 | – | – | – |
| 014 | Toode pole süsteemis | 140N15-0 | – | – | – |
| C10 | Toode pole süsteemisKuulub osa 014 koosseisu, joonisel ei ole eraldi näha | 890374-5 | – | – | – |
| 015 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 015-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 016 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 016-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 017 | Switch Lever Case Cover MAKITA 456352-1 | 456352-1 | Tellimisel | 1.83 € | |
| 018 | Switch Lever Case MAKITA 456351-3 | 456351-3 | Tellimisel | 1.83 € | |
| 019 | Lower Pipe MAKITA 326635-2 | 326635-2 | Tellimisel | 14.74 € | |
| 019-1 | Toode pole süsteemis | 327E82-0 | – | – | – |
| 020 | Square Neck Bolt M6 × 50 MAKITA 265A14-4 | 265A14-4 | Tellimisel | 0.99 € | |
| 021 | Thumb Nut M6 MAKITA 264070-5 | 264070-5 | Tellimisel | 1.54 € | |
| 024 | Thumb Screw M8 × 38 MAKITA 266729-0 | 266729-0 | Tellimisel | 2.81 € | |
| 026 | Toode pole süsteemis | 459809-1 | – | – | – |
| 027 | Toode pole süsteemis | 660393-3 | – | – | – |
| 027-1 | Toode pole süsteemis | 660396-7 | – | – | – |
| 027-2 | Toode pole süsteemis | 660393-3 | – | – | – |
| 028 | Battery cover complete E MAKITA 140N21-5 | 140N21-5 | Tellimisel | 0.00 € | |
| C10 | Toode pole süsteemisKuulub osa 028 koosseisu, joonisel ei ole eraldi näha | 8005W1-7 | – | – | – |
| 028-1 | Toode pole süsteemis | 1410K1-7 | – | – | – |
| C10 | Toode pole süsteemisKuulub osa 028-1 koosseisu, joonisel ei ole eraldi näha | 8075Y8-8 | – | – | – |
| 029 | Toode pole süsteemis | 890375-3 | – | – | – |
| 029-1 | Toode pole süsteemis | 8075Y7-0 | – | – | – |
| 030 | Toode pole süsteemis | 856L50-3 | – | – | – |
| 031 | Toode pole süsteemis | 856L57-9 | – | – | – |
| 032 | Toode pole süsteemis | 8005W9-1 | – | – | – |
| 033 | Toode pole süsteemis | 8005W4-1 | – | – | – |
| 034 | Toode pole süsteemis | 8005W5-9 | – | – | – |

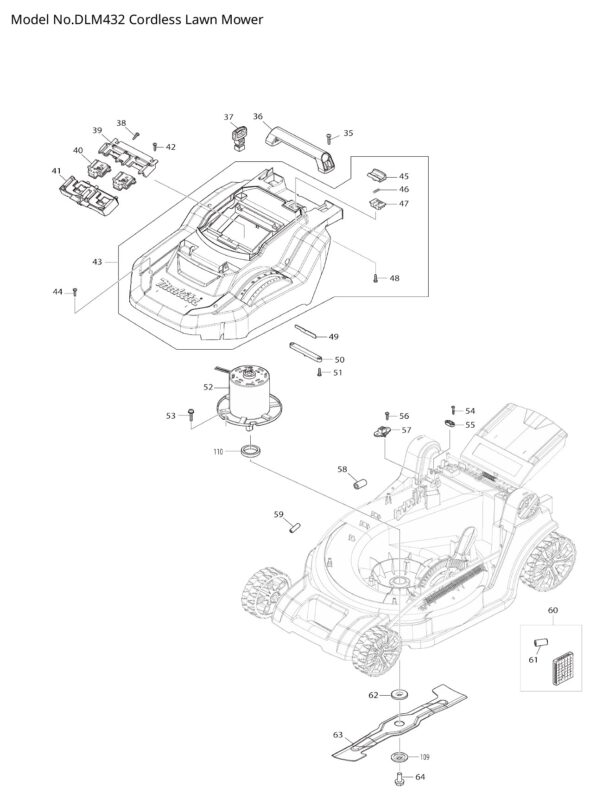

Joonis 2 – Kate, mootor ja lõiketera
Näita varuosi (51)Peida varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 035 | Tapping Screw 5 × 25 mm MAKITA 266459-3 | 266459-3 | Tellimisel | 0.99 € | |
| 035-1 | Tapping Screw 5 × 25 MAKITA 265D56-6 | 265D56-6 | Tellimisel | 0.99 € | |
| 036 | Grip A MAKITA 273675-0 | 273675-0 | Tellimisel | 4.21 € | |
| 037 | Key MAKITA 643890-4 | 643890-4 | Laos | 2.81 € | |
| 038 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 038-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 039 | Toode pole süsteemis | 183N35-1 | – | – | – |
| C10 | Rubber pin 6 MAKITA 263005-3Kuulub osa 039 koosseisu, joonisel ei ole eraldi näha | 263005-3 | Tellimisel | 0.99 € | |
| 040 | Terminal MAKITA 644809-6 | 644809-6 | Laos | 5.00 € | |
| 040-1 | Toode pole süsteemis | 644028-4 | – | – | – |
| 041 | Toode pole süsteemis | 183N35-1 | – | – | – |
| C10 | Rubber pin 6 MAKITA 263005-3Kuulub osa 041 koosseisu, joonisel ei ole eraldi näha | 263005-3 | Tellimisel | 0.99 € | |
| 042 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 042-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 043 | Toode pole süsteemis | 127387-6 | – | – | – |
| 044 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 044-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 045 | Lock Lever MAKITA 453250-0 | 453250-0 | Tellimisel | 1.40 € | |
| 046 | Compression Spring 4 MAKITA 233173-6 | 233173-6 | Tellimisel | 1.00 € | |
| 046-2 | Compression Spring 4 MAKITA 233173-6 | 233173-6 | Tellimisel | 1.00 € | |
| 047 | Lock Lever Support MAKITA 453251-8 | 453251-8 | Tellimisel | 1.12 € | |
| 048 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 048-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 049 | Toode pole süsteemis | 620B91-3 | – | – | – |
| 050 | LED Cover MAKITA 455070-8 | 455070-8 | Tellimisel | 0.99 € | |
| 051 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 051-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 052 | Toode pole süsteemis | 629A18-4 | – | – | – |
| 052-1 | Toode pole süsteemis | 629A18-4 | – | – | – |
| 052-2 | DC Motor MAKITA 629C53-4 | 629C53-4 | Tellimisel | 132.00 € | |
| 053 | Pan Head Screw M6 × 30 MAKITA 266774-5 | 266774-5 | Tellimisel | 0.99 € | |
| 053-1 | Pan Head Screw M6 × 30 MAKITA 266774-5 | 266774-5 | Tellimisel | 0.99 € | |
| 053-2 | Pan Head Screw M6 × 30 MAKITA 265D69-7 | 265D69-7 | Tellimisel | 1.00 € | |
| 054 | Tapping Screw 4 × 25 MAKITA 265999-8 | 265999-8 | Laos | 1.00 € | |
| 054-1 | Toode pole süsteemis | 265B73-4 | – | – | – |
| 055 | Cord Clamp MAKITA 687124-5 | 687124-5 | Tellimisel | 0.99 € | |
| 056 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 056-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 057 | Lead Unit MAKITA 638946-6 | 638946-6 | Tellimisel | 4.21 € | |
| 058 | Line Filter MAKITA 688162-0 | 688162-0 | Tellimisel | 1.40 € | |
| 059 | Line Filter 30 × 5 × 10 MAKITA 688165-4 | 688165-4 | Tellimisel | 0.99 € | |
| 060 | Toode pole süsteemis | 632P19-3 | – | – | – |
| C10 | Receptacle MAKITA 654208-4Kuulub osa 060 koosseisu, joonisel ei ole eraldi näha | 654208-4 | Tellimisel | 0.99 € | |
| 060-1 | Toode pole süsteemis | 632U26-6 | – | – | – |
| C10 | Toode pole süsteemisKuulub osa 060-1 koosseisu, joonisel ei ole eraldi näha | 654199-9 | – | – | – |
| 061 | Line Filter MAKITA 688162-0 | 688162-0 | Tellimisel | 1.40 € | |
| 062 | Inner Flange 40 MAKITA 224444-2 | 224444-2 | Tellimisel | 4.21 € | |
| 063 | Blade 430 set MAKITA 191D43-8 | 191D43-8 | Laos | 23.62 € | |
| 064 | Hex Bolt M10 × 25 MAKITA 266731-3 | 266731-3 | Tellimisel | 1.00 € | |
| 109 | Outer Flange 40 MAKITA 224445-0 | 224445-0 | Tellimisel | 4.21 € | |
| 110 | Line Filter MAKITA 688238-3 | 688238-3 | Tellimisel | 3.50 € |

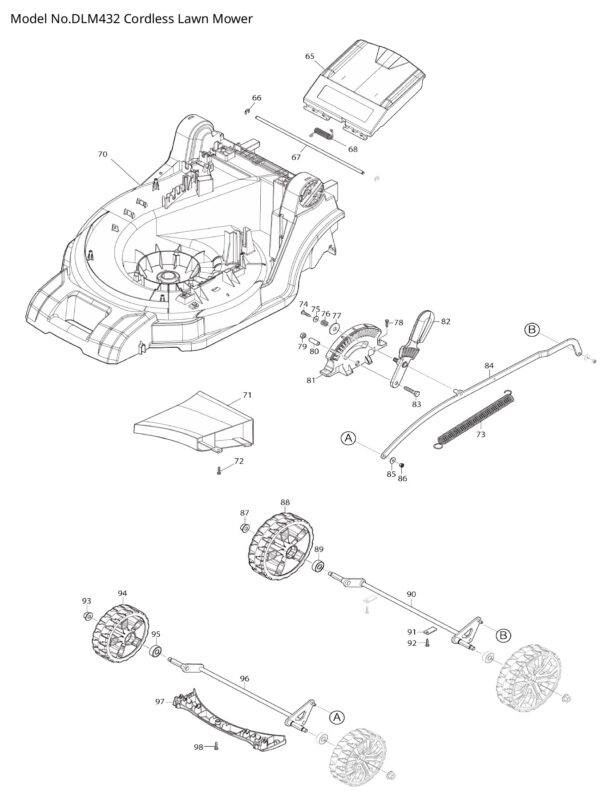

Joonis 3 – Alus, rattad ja kõrguse reguleerimine
Näita varuosi (52)Peida varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 065 | Toode pole süsteemis | 140S15-0 | – | – | – |
| 065-1 | Toode pole süsteemis | 1410K0-9 | – | – | – |
| 066-1 | Stop Ring External E-5 MAKITA 961018-5 | 961018-5 | Tellimisel | 0.99 € | |
| 067 | Toode pole süsteemis | 259067-7 | – | – | – |
| 068-1 | Torsion Spring 8 MAKITA 233597-6 | 233597-6 | Tellimisel | 0.99 € | |
| 070 | Toode pole süsteemis | 459780-9 | – | – | – |
| C10 | Toode pole süsteemisKuulub osa 070 koosseisu, joonisel ei ole eraldi näha | 346544-9 | – | – | – |
| C20 | Hex Nut M6 MAKITA 931302-2Kuulub osa 070 koosseisu, joonisel ei ole eraldi näha | 931302-2 | Tellimisel | 0.99 € | |
| 070-1 | Toode pole süsteemis | 459780-9 | – | – | – |
| C10 | Toode pole süsteemisKuulub osa 070-1 koosseisu, joonisel ei ole eraldi näha | 346544-9 | – | – | – |
| C20 | Hex Nut M6 MAKITA 931302-2Kuulub osa 070-1 koosseisu, joonisel ei ole eraldi näha | 931302-2 | Tellimisel | 0.99 € | |
| 070-2 | Deck MAKITA 413T64-9 | 413T64-9 | Tellimisel | 74.81 € | |
| C10 | Toode pole süsteemisKuulub osa 070-2 koosseisu, joonisel ei ole eraldi näha | 346544-9 | – | – | – |
| C20 | Hex Nut M6 MAKITA 931302-2Kuulub osa 070-2 koosseisu, joonisel ei ole eraldi näha | 931302-2 | Tellimisel | 0.99 € | |
| 071 | Under Cover MAKITA 412272-9 | 412272-9 | Tellimisel | 4.20 € | |
| 072 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 072-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 073-1 | Tension Spring 16 MAKITA 231875-8 | 231875-8 | Tellimisel | 1.26 € | |
| 074 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 074-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 075-1 | Flat Washer 4 MAKITA 267102-7 | 267102-7 | Tellimisel | 0.99 € | |
| 075-2 | Toode pole süsteemis | 253607-3 | – | – | – |
| 076-1 | Compression spring 9 MAKITA 231297-2 | 231297-2 | Tellimisel | 0.99 € | |
| 077-1 | Flat Washer 9 MAKITA 253808-3 | 253808-3 | Tellimisel | 0.99 € | |
| 078 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 078-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 079 | Hex Nut M6 MAKITA 931302-2 | 931302-2 | Tellimisel | 0.99 € | |
| 080-1 | Sleeve 6 MAKITA 257670-8 | 257670-8 | Tellimisel | 0.99 € | |
| 081 | Adjust Plate MAKITA 453255-0 | 453255-0 | Tellimisel | 5.05 € | |
| 082 | Change Lever MAKITA 459099-6 | 459099-6 | Tellimisel | 2.39 € | |
| 083-1 | Hex Bolt M6 × 30 MAKITA 921352-5 | 921352-5 | Tellimisel | 0.99 € | |
| 084 | Connecting Rod MAKITA 346543-1 | 346543-1 | Tellimisel | 16.84 € | |
| 085-1 | Flat Washer 5 MAKITA 941101-4 | 941101-4 | Tellimisel | 0.99 € | |
| 086 | Hex Lock Nut M5 MAKITA 252103-8 | 252103-8 | Tellimisel | 0.99 € | |
| 087-1 | Collared hex. nut M8 MAKITA 252145-2 | 252145-2 | Tellimisel | 1.00 € | |
| 088 | Toode pole süsteemis | 459101-5 | – | – | – |
| 089-1 | Ball Bearing 6200 ZZ MAKITA 210070-3 | 210070-3 | Tellimisel | 1.40 € | |
| 089-2 | Toode pole süsteemis | 210303-6 | – | – | – |
| 090 | Rear shaft MAKITA 165669-8 | 165669-8 | Tellimisel | 21.00 € | |
| 090-1 | Rear Shaft MAKITA 162C97-6 | 162C97-6 | Laos | 21.00 € | |
| 091-1 | Plate MAKITA 346545-7 | 346545-7 | Tellimisel | 0.99 € | |
| 092 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 092-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 093-1 | Collared hex. nut M8 MAKITA 252145-2 | 252145-2 | Tellimisel | 1.00 € | |
| 094 | Front Wheel MAKITA 459100-7 | 459100-7 | Tellimisel | 11.93 € | |
| 095-1 | Ball Bearing 6200 ZZ MAKITA 210070-3 | 210070-3 | Tellimisel | 1.40 € | |
| 095-2 | Toode pole süsteemis | 210303-6 | – | – | – |
| 096 | Front shaft MAKITA 165668-0 | 165668-0 | Tellimisel | 21.00 € | |
| 096-1 | Front Shaft MAKITA 162C68-3 | 162C68-3 | Laos | 21.00 € | |
| 097 | Front Cover MAKITA 456353-9 | 456353-9 | Tellimisel | 5.20 € | |
| 098 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 098-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € |

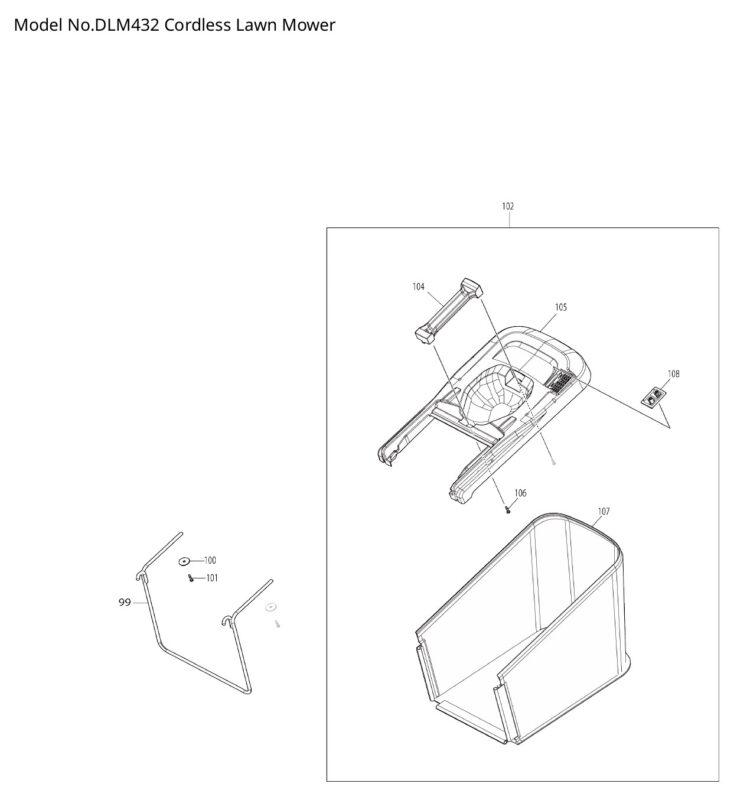

Joonis 4 – Rohukorv
Näita varuosi (21)Peida varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 099 | Toode pole süsteemis | 327409-4 | – | – | – |
| 099-1 | Toode pole süsteemis | 327411-7 | – | – | – |
| 100 | Flat Washer 5 MAKITA 267438-4 | 267438-4 | Tellimisel | 0.99 € | |
| 101 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 101-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 101-2 | Toode pole süsteemis | 265E19-8 | – | – | – |
| 102 | Toode pole süsteemis | 127386-8 | – | – | – |
| 102-1 | Toode pole süsteemis | 127392-3 | – | – | – |
| 102-2 | Toode pole süsteemis | 122H79-0 | – | – | – |
| 104 | Toode pole süsteemis | 273676-8 | – | – | – |
| 105 | Toode pole süsteemis | 459807-5 | – | – | – |
| 105-1 | Toode pole süsteemis | 459812-2 | – | – | – |
| 105-2 | Toode pole süsteemis | 4132D1-3 | – | – | – |
| 106 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 106-1 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 106-2 | Tapping Screw PT 4 × 18 MAKITA 266326-2 | 266326-2 | Tellimisel | 0.99 € | |
| 106-3 | Binding head tapping screw 4X1 MAKITA 265B67-9 | 265B67-9 | Tellimisel | 0.99 € | |
| 107 | Toode pole süsteemis | 162680-1 | – | – | – |
| 107-1 | Toode pole süsteemis | 162684-3 | – | – | – |
| 107-2 | Toode pole süsteemis | 162D79-4 | – | – | – |
| 108 | Toode pole süsteemis | 459806-7 | – | – | – |
