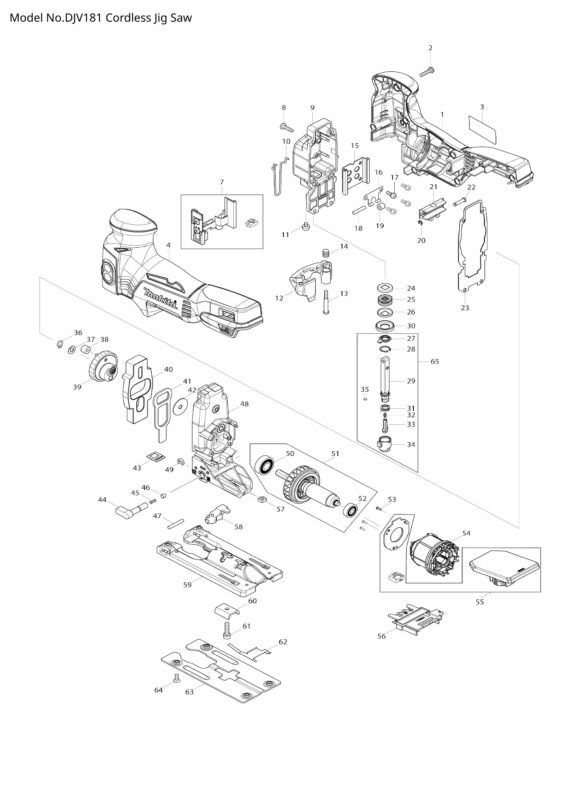

Makita DJV181 varuosad ja varuosajoonised
Näita varuosi (71)Peida varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Housing Set MAKITA 187704-2 | 187704-2 | Tellimisel | 28.21 € | |
| 002 | Binding head tapping screw 4X18 MAKITA 265995-6 | 265995-6 | Tellimisel | 0.99 € | |
| 003 | Unnamed Spare Part MAKITA 814S24-2 | 814S24-2 | Tellimisel | 3.00 € | |
| 004 | Housing Set MAKITA 187704-2 | 187704-2 | Tellimisel | 28.21 € | |
| 007 | Switch Unit MAKITA 632A96-5 | 632A96-5 | Tellimisel | 26.10 € | |
| 008 | Tapping Screw Ct 4x16 MAKITA 266034-5 | 266034-5 | Tellimisel | 0.99 € | |
| 009 | Gear Housing Cover Complete MAKITA 142112-4 | 142112-4 | Tellimisel | 15.02 € | |
| 010 | Safety Wire MAKITA 326302-9 | 326302-9 | Tellimisel | 0.99 € | |
| 011 | Pan Head Screw M4x6 MAKITA 911104-2 | 911104-2 | Tellimisel | 0.99 € | |
| 011-1 | Pan Head Screw M4 × 5 MAKITA 265132-2 | 265132-2 | Tellimisel | 0.99 € | |
| 012 | Tool Opener MAKITA 454483-0 | 454483-0 | Tellimisel | 1.68 € | |
| 013 | Pan Head Screw M4 MAKITA 265026-1 | 265026-1 | Tellimisel | 0.99 € | |
| 014 | Torsion Spring MAKITA 231659-4 | 231659-4 | Tellimisel | 0.99 € | |
| 015 | Linear Guide MAKITA 346687-7 | 346687-7 | Tellimisel | 8.42 € | |
| 016 | Leaf Spring MAKITA 232207-2 | 232207-2 | Laos | 1.83 € | |
| 017 | Pan Head Screw M4 × 10 MAKITA 911111-5 | 911111-5 | Tellimisel | 0.99 € | |
| 018 | Pin 4 MAKITA 256117-9 | 256117-9 | Tellimisel | 0.99 € | |
| 019 | Plain Bearing 4 MAKITA 214031-5 | 214031-5 | Tellimisel | 0.99 € | |
| 020 | Stop Ring E-3 MAKITA 961017-7 | 961017-7 | Tellimisel | 0.99 € | |
| 021 | Slider MAKITA 310548-7 | 310548-7 | Tellimisel | 11.22 € | |
| 021-1 | Slider MAKITA 310837-0 | 310837-0 | Tellimisel | 11.22 € | |
| 022 | Pin 4 MAKITA 268090-1 | 268090-1 | Tellimisel | 1.12 € | |
| 023 | Gasket MAKITA 442195-7 | 442195-7 | Tellimisel | 1.96 € | |
| 024 | Cap Washer MAKITA 267854-0 | 267854-0 | Laos | 0.99 € | |
| 025 | Dust Seal 8 MAKITA 421815-6 | 421815-6 | Tellimisel | 1.00 € | |
| 026 | Cap Washer MAKITA 267854-0 | 267854-0 | Laos | 0.99 € | |
| 027 | Dust Cover MAKITA 424569-4 | 424569-4 | Tellimisel | 0.99 € | |
| 028 | Retaining Ring R-B MAKITA 962063-3 | 962063-3 | Tellimisel | 0.99 € | |
| 029 | Rod MAKITA 165724-6 | 165724-6 | Tellimisel | 16.14 € | |
| 030 | Ring 21 MAKITA 257347-5 | 257347-5 | Tellimisel | 1.68 € | |
| 031 | Torsion Spring 10 MAKITA 233591-8 | 233591-8 | Tellimisel | 0.99 € | |
| 032 | Compression Spring 4 MAKITA 233314-4 | 233314-4 | Tellimisel | 0.99 € | |
| 033 | Lock Pin MAKITA 310485-5 | 310485-5 | Tellimisel | 3.79 € | |
| 034 | Blade Holder MAKITA 310547-9 | 310547-9 | Tellimisel | 9.54 € | |
| 035 | Pin 2 MAKITA 256528-8 | 256528-8 | Tellimisel | 0.99 € | |
| 036 | Retaining Ring S-6 MAKITA 961002-0 | 961002-0 | Tellimisel | 0.99 € | |
| 037 | Flat Washer 6 MAKITA 253715-0 | 253715-0 | Tellimisel | 0.99 € | |
| 038 | Needle Bearing 407 MAKITA 212014-9 | 212014-9 | Tellimisel | 11.22 € | |
| 038-1 | Needle Bearing 407 MAKITA 212092-9 | 212092-9 | Tellimisel | 2.90 € | |
| 039 | Gear Complete MAKITA 142109-3 | 142109-3 | Tellimisel | 30.02 € | |
| 040 | Balance Plate MAKITA 313260-8 | 313260-8 | Tellimisel | 10.53 € | |
| 041 | Push Plate MAKITA 346688-5 | 346688-5 | Tellimisel | 1.68 € | |
| 042 | Flat Washer 6 MAKITA 253196-8 | 253196-8 | Tellimisel | 1.00 € | |
| 043 | Seal Plate MAKITA 454484-8 | 454484-8 | Tellimisel | 0.99 € | |
| 044 | Lever 17 - 4340T MAKITA 272244-4 | 272244-4 | Tellimisel | 5.61 € | |
| 044-1 | Lever 17 MAKITA 272280-0 | 272280-0 | Tellimisel | 1.26 € | |
| 045 | Compression Spring 3 MAKITA 233139-6 | 233139-6 | Tellimisel | 0.99 € | |
| 046 | Cap 5 MAKITA 286032-3 | 286032-3 | Tellimisel | 0.99 € | |
| 047 | Pin 4 MAKITA 268063-4 | 268063-4 | Tellimisel | 0.99 € | |
| 048 | Gear Housing Complete MAKITA 142111-6 | 142111-6 | Tellimisel | 18.10 € | |
| 049 | Stop Ring External E-5 MAKITA 961018-5 | 961018-5 | Tellimisel | 0.99 € | |
| 050 | Ball Bearing 6000 DDW MAKITA 210059-1 | 210059-1 | Laos | 5.61 € | |
| 051 | Rotor Assembly MAKITA 519329-8 | 519329-8 | Tellimisel | 70.71 € | |
| 052 | Ball Bearing 626DDW MAKITA 210022-4 | 210022-4 | Tellimisel | 4.21 € | |
| 053 | Tapping Screw 2 × 6 mm MAKITA 266490-9 | 266490-9 | Tellimisel | 0.99 € | |
| 053-1 | Tapping Screw 2 × 6 MAKITA 265C47-1 | 265C47-1 | Tellimisel | 0.99 € | |
| 053-2 | Tapping Screw 2 × 6 mm MAKITA 266490-9 | 266490-9 | Tellimisel | 0.99 € | |
| 054 | Stator MAKITA 629996-2 | 629996-2 | Tellimisel | 40.97 € | |
| 055 | Controller MAKITA 620214-1 | 620214-1 | Tellimisel | 142.41 € | |
| 055-1 | Controller MAKITA 620B23-0 | 620B23-0 | Tellimisel | 140.30 € | |
| 055-2 | Controller MAKITA 620B23-0 | 620B23-0 | Tellimisel | 140.30 € | |
| 056 | Terminal MAKITA 643899-6 | 643899-6 | Tellimisel | 3.37 € | |
| 057 | Square Nut M5 MAKITA 252171-1 | 252171-1 | Tellimisel | 0.99 € | |
| 058 | Retainer Complete MAKITA 142110-8 | 142110-8 | Tellimisel | 11.22 € | |
| 059 | Base MAKITA 319016-7 | 319016-7 | Tellimisel | 9.54 € | |
| 060 | Crank Plate MAKITA 345237-5 | 345237-5 | Tellimisel | 0.99 € | |
| 061 | Hex Socket Head Bolt M5 × 20 MAKITA 922231-0 | 922231-0 | Tellimisel | 0.99 € | |
| 062 | Leaf Spring MAKITA 232208-0 | 232208-0 | Tellimisel | 0.99 € | |
| 063 | Base Plate MAKITA 346685-1 | 346685-1 | Tellimisel | 2.53 € | |
| 064 | Head Screw M4 × 8 MAKITA 265085-5 | 265085-5 | Tellimisel | 0.99 € | |
| 065 | Rod Assembly MAKITA 135602-4 | 135602-4 | Tellimisel | 32.98 € |
Varuosasoov
Ei leia varuosa, mida otsid? Kirjuta meile ja teavitame teid, kui varuosajoonis on lisatud.
