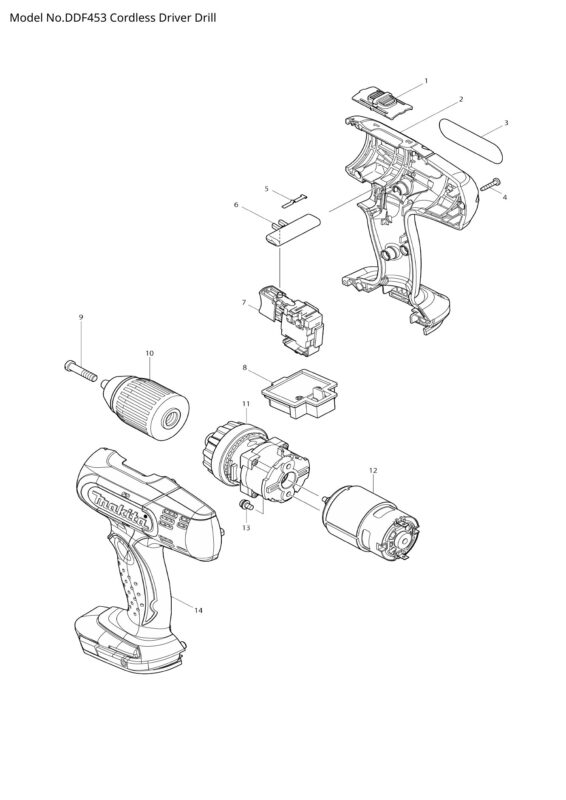

Makita DDF453 varuosad ja varuosajoonised
Näita varuosi (16)Peida varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Speed Change Lever Assembly MAKITA 125310-5 | 125310-5 | Laos | 1.00 € | |
| 002 | Housing Set MAKITA 187363-2 | 187363-2 | Laos | 16.84 € | |
| 002-1 | Housing Set MAKITA 187363-2 | 187363-2 | Laos | 16.84 € | |
| 003 | Name Plate DDF453 MAKITA 815G82-9 | 815G82-9 | Tellimisel | 3.00 € | |
| 004 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 005 | Leaf Spring MAKITA 232182-2 | 232182-2 | Tellimisel | 0.99 € | |
| 006 | Forward/Reverse Change Lever MAKITA 419250-0 | 419250-0 | Tellimisel | 0.99 € | |
| 007 | Switch Unit MAKITA 632A23-2 | 632A23-2 | Tellimisel | 30.87 € | |
| 008 | Terminal MAKITA 643852-2 | 643852-2 | Laos | 4.21 € | |
| 009 | Flat Head Screw M6 × 22 MAKITA 251468-5 | 251468-5 | Laos | 0.99 € | |
| 010 | Keyless Drill Chuck 13 MAKITA 766004-9 | 766004-9 | Tellimisel | 38.50 € | |
| 011 | Gear Assembly MAKITA 125483-4 | 125483-4 | Laos | 28.06 € | |
| 012 | Motor MAKITA 629937-8 | 629937-8 | Laos | 19.64 € | |
| 013 | Pan Head Screw M4 × 8 MAKITA 911108-4 | 911108-4 | Tellimisel | 0.99 € | |
| 014 | Housing Set MAKITA 187363-2 | 187363-2 | Laos | 16.84 € | |
| 014-1 | Housing Set MAKITA 187363-2 | 187363-2 | Laos | 16.84 € |
