Makita DTW190Z varuosad
Makita DTW190Z varuosad
Makita DTW190Z varuosad

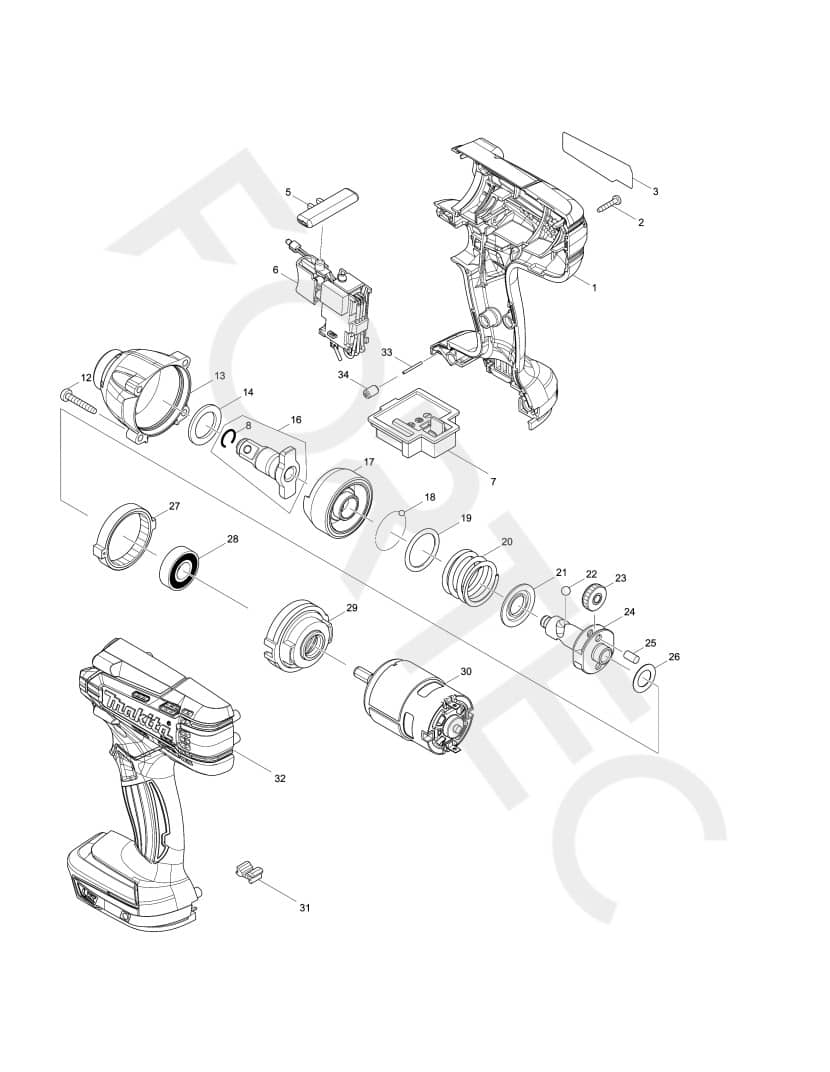

| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Housing Set MAKITA 183D73-3 | 183D73-3 | Pole laos | 19.79 € | |
| 001-1 | Housing Set MAKITA 183D73-3 | 183D73-3 | Pole laos | 19.79 € | |
| 002 | Tapping Screw PT 3 × 16 mm MAKITA 266429-2 | 266429-2 | Pole laos | 0.99 € | |
| 003 | Toode pole süsteemis | 851W90-2 | – | – | – |
| 005 | Forward Reverse Change Lever MAKITA 452399-3 | 452399-3 | Pole laos | 0.99 € | |
| 006 | Toode pole süsteemis | 632G34-3 | – | – | – |
| 006-1 | Switch Unit MAKITA 632J81-2 | 632J81-2 | Pole laos | 38.16 € | |
| 007 | Terminal MAKITA 643852-2 | 643852-2 | Pole laos | 4.21 € | |
| 008 | Ring Spring 10 MAKITA 231907-1 | 231907-1 | Laos | 0.99 € | |
| 012 | Tapping Screw 4 × 25 mm MAKITA 266374-1 | 266374-1 | Pole laos | 0.99 € | |
| 013 | Hammer Case Complete MAKITA 143646-0 | 143646-0 | Pole laos | 16.42 € | |
| 014 | Toode pole süsteemis | 261151-6 | – | – | – |
| 016 | Toode pole süsteemis | 135745-2 | – | – | – |
| 016-1 | Anvil E Assembly MAKITA 135796-5 | 135796-5 | Pole laos | 12.21 € | |
| 017 | Hammer MAKITA 326110-8 | 326110-8 | Pole laos | 11.22 € | |
| 018 | Toode pole süsteemis | 216040-0 | – | – | – |
| 019 | Toode pole süsteemis | 267175-0 | – | – | – |
| 020 | Compression Spring 24 MAKITA 233430-2 | 233430-2 | Pole laos | 1.68 € | |
| 021 | Flat Washer 14 MAKITA 267766-7 | 267766-7 | Pole laos | 0.99 € | |
| 022 | Toode pole süsteemis | 216041-8 | – | – | – |
| 023 | Toode pole süsteemis | 227362-3 | – | – | – |
| 024 | Spindle MAKITA 326109-3 | 326109-3 | Pole laos | 14.03 € | |
| 025 | Pin 5 MAKITA 256253-1 | 256253-1 | Pole laos | 0.99 € | |
| 026 | Flat Washer 12 MAKITA 267212-0 | 267212-0 | Pole laos | 0.99 € | |
| 027 | Internal Gear 51 MAKITA 227279-0 | 227279-0 | Pole laos | 1.12 € | |
| 028 | Ball Bearing 6001 ZZ MAKITA 210107-6 | 210107-6 | Pole laos | 1.4 € | |
| 029 | Internal Gear Case MAKITA 453056-6 | 453056-6 | Pole laos | 1 € | |
| 030 | DC Motor MAKITA 629199-8 | 629199-8 | Pole laos | 31.57 € | |
| 031 | Cushion MAKITA 424476-1 | 424476-1 | Pole laos | 0.99 € | |
| 032 | Housing Set MAKITA 183D73-3 | 183D73-3 | Pole laos | 19.79 € | |
| 032-1 | Housing Set MAKITA 183D73-3 | 183D73-3 | Pole laos | 19.79 € | |
| 033 | Pin 1.5 MAKITA 268284-8 | 268284-8 | Pole laos | 0.99 € | |
| 034 | Toode pole süsteemis | 263036-2 | – | – | – |
