Makita DTD171Z varuosad
Makita DTD171ZJ varuosad
Kategooria: Akulöökkruvikeerajate Varuosad
Bränd: Makita
Aktiivsed filtrid
Bränd
Makita DTD171ZJ varuosad
Näita varuosi (49)Peida varuosad

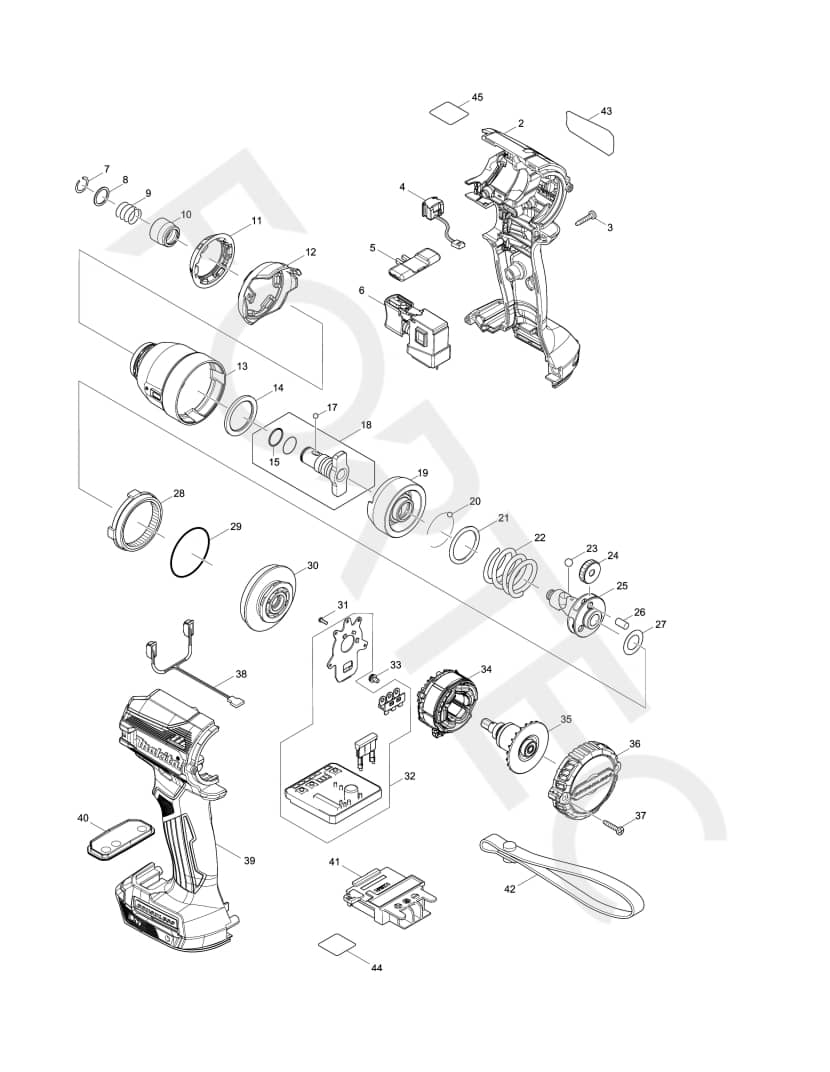

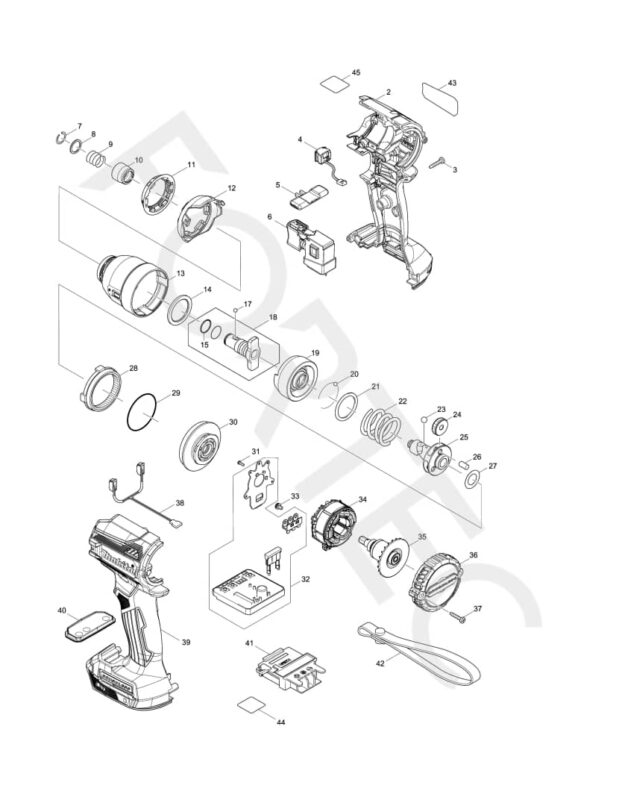

| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 002 | Toode pole süsteemis | 183K87-4 | – | – | – |
| 002-1 | Housing MAKITA 183N06-8 | 183N06-8 | Tellimisel | 15.64 € | |
| 003 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 004 | Switch Unit MAKITA 632L84-8 | 632L84-8 | Tellimisel | 9.82 € | |
| 005 | Toode pole süsteemis | 455053-8 | – | – | – |
| 006 | Switch Complete MAKITA 140B49-1 | 140B49-1 | Tellimisel | 18.24 € | |
| 007 | Ring Spring 11 MAKITA 231951-8 | 231951-8 | Laos | 0.99 € | |
| 008 | Flat Washer 12 MAKITA 267085-1 | 267085-1 | Laos | 0.99 € | |
| 009 | COMPRESSION SPRING 13, 6935FD | 233005-7 | Laos | 1.00 € | |
| 010 | Bit Sleeve MAKITA 326072-0 | 326072-0 | Laos | 2.81 € | |
| 011 | Bumper MAKITA 422269-0 | 422269-0 | Laos | 1.40 € | |
| 012 | Hammer Case Cover MAKITA 458484-0 | 458484-0 | Tellimisel | 1.22 € | |
| 013 | Hammer Case Complete MAKITA 140A51-8 | 140A51-8 | Tellimisel | 30.87 € | |
| 014 | Toode pole süsteemis | 261160-5 | – | – | – |
| 015 | Toode pole süsteemis | 213118-0 | – | – | – |
| 017 | Toode pole süsteemis | 216001-0 | – | – | – |
| 017-1 | Toode pole süsteemis | 216040-0 | – | – | – |
| 018 | Anvil Assembly MAKITA 136065-7 | 136065-7 | Tellimisel | 25.25 € | |
| 019 | Hammer MAKITA 327114-3 | 327114-3 | Tellimisel | 35.92 € | |
| 019-1 | Hammer MAKITA 327750-5 | 327750-5 | Tellimisel | 6.32 € | |
| 020 | Toode pole süsteemis | 216001-0 | – | – | – |
| 020-1 | Toode pole süsteemis | 216040-0 | – | – | – |
| 021 | Flat washer 24 MAKITA 267175-0 | 267175-0 | Tellimisel | 0.99 € | |
| 022 | Compression Spring 23B MAKITA 232459-5 | 232459-5 | Tellimisel | 2.81 € | |
| 023 | Toode pole süsteemis | 216011-7 | – | – | – |
| 024 | Toode pole süsteemis | 227338-0 | – | – | – |
| 025 | Spindle MAKITA 327113-5 | 327113-5 | Tellimisel | 35.08 € | |
| 025-1 | Toode pole süsteemis | 327751-3 | – | – | – |
| 026 | Toode pole süsteemis | 268311-1 | – | – | – |
| 027 | Thin Washer 15 MAKITA 253314-8 | 253314-8 | Tellimisel | 1.00 € | |
| 027-1 | Toode pole süsteemis | 253445-3 | – | – | – |
| 028 | Internal Gear 51 MAKITA 226182-2 | 226182-2 | Tellimisel | 4.21 € | |
| 029 | O-Ring 40 MAKITA 213507-9 | 213507-9 | Tellimisel | 0.99 € | |
| 030 | Toode pole süsteemis | 143976-9 | – | – | – |
| 031 | Tapping Screw 2 × 6 mm MAKITA 266490-9 | 266490-9 | Tellimisel | 0.99 € | |
| 032 | Toode pole süsteemis | 620848-0 | – | – | – |
| 032-1 | Controller MAKITA 620D48-6 | 620D48-6 | Laos | 84.18 € | |
| 033 | Flat head screw M3X6 MAKITA 652069-6 | 652069-6 | Tellimisel | 0.99 € | |
| 034 | Stator MAKITA 629217-2 | 629217-2 | Tellimisel | 16.14 € | |
| 035 | Rotor MAKITA 619408-3 | 619408-3 | Tellimisel | 45.18 € | |
| 036 | Rear Cover MAKITA 458478-5 | 458478-5 | Tellimisel | 3.51 € | |
| 037 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 038 | LED Circuit MAKITA 620849-8 | 620849-8 | Tellimisel | 7.02 € | |
| 039 | Toode pole süsteemis | 183K87-4 | – | – | – |
| 039-1 | Housing MAKITA 183N06-8 | 183N06-8 | Tellimisel | 15.64 € | |
| 040 | Switch Plate Complete MAKITA 140G40-9 | 140G40-9 | Tellimisel | 2.81 € | |
| 041 | Toode pole süsteemis | 643860-3 | – | – | – |
| 043 | Toode pole süsteemis | 855E98-0 | – | – | – |
| 044 | Toode pole süsteemis | 855F05-9 | – | – | – |
