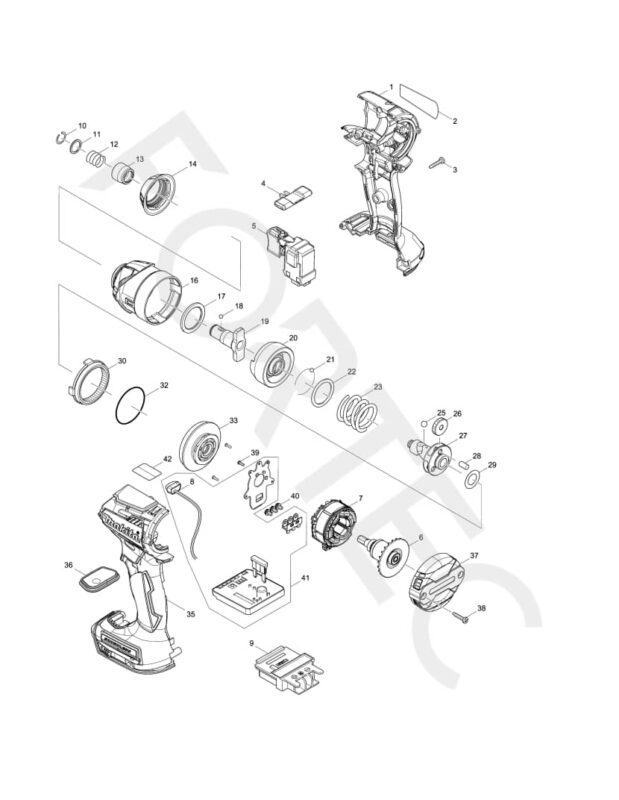

Makita DTD154Z varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Housing Set Assembly MAKITA 183E36-5 | 183E36-5 | Pole laos | 15.99 € | |
| 001-1 | Housing Set Assembly MAKITA 183E36-5 | 183E36-5 | Pole laos | 15.99 € | |
| 002 | Toode pole süsteemis | 852L16-1 | – | – | – |
| 002-1 | Toode pole süsteemis | 857J30-0 | – | – | – |
| 003 | Tapping Screw PT 3 × 16 mm MAKITA 266429-2 | 266429-2 | Pole laos | 0.99 € | |
| 003-1 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 004 | Toode pole süsteemis | 455053-8 | – | – | – |
| 005 | Toode pole süsteemis | 143975-1 | – | – | – |
| 006 | Rotor MAKITA 619408-3 | 619408-3 | Pole laos | 45.18 € | |
| 007 | Stator MAKITA 629217-2 | 629217-2 | Pole laos | 16.14 € | |
| 008 | LED Circuit MAKITA 620557-1 | 620557-1 | Pole laos | 7.02 € | |
| 009 | Toode pole süsteemis | 643860-3 | – | – | – |
| 010 | Ring Spring 11 MAKITA 231951-8 | 231951-8 | Laos | 0.99 € | |
| 011 | Flat Washer 12 MAKITA 267085-1 | 267085-1 | Laos | 0.99 € | |
| 012 | COMPRESSION SPRING 13, 6935FD | 233005-7 | Laos | 1.00 € | |
| 013 | Bit Sleeve MAKITA 326072-0 | 326072-0 | Laos | 2.81 € | |
| 014 | Bumper MAKITA 424873-1 | 424873-1 | Pole laos | 0.99 € | |
| 016 | Hammer Case Complete MAKITA 143951-5 | 143951-5 | Pole laos | 14.03 € | |
| 017 | Toode pole süsteemis | 261155-8 | – | – | – |
| 018 | Toode pole süsteemis | 216001-0 | – | – | – |
| 018-1 | Toode pole süsteemis | 216040-0 | – | – | – |
| 019 | Anvil M MAKITA 326508-9 | 326508-9 | Laos | 9.54 € | |
| 020 | Hammer MAKITA 326711-2 | 326711-2 | Pole laos | 20.91 € | |
| 020-1 | Hammer MAKITA 327155-9 | 327155-9 | Pole laos | 14.03 € | |
| 021 | Toode pole süsteemis | 216001-0 | – | – | – |
| 021-1 | Toode pole süsteemis | 216040-0 | – | – | – |
| 022 | Toode pole süsteemis | 267175-0 | – | – | – |
| 023 | Compression Spring 24 MAKITA 234331-7 | 234331-7 | Pole laos | 2.81 € | |
| 025 | Toode pole süsteemis | 216041-8 | – | – | – |
| 026 | Toode pole süsteemis | 227338-0 | – | – | – |
| 027 | Spindle MAKITA 326783-7 | 326783-7 | Pole laos | 17.96 € | |
| 028 | Toode pole süsteemis | 268311-1 | – | – | – |
| 029 | Thin Washer 15 MAKITA 253314-8 | 253314-8 | Pole laos | 1.00 € | |
| 030 | Toode pole süsteemis | 221457-4 | – | – | – |
| 032 | O-Ring 40 MAKITA 213507-9 | 213507-9 | Pole laos | 0.99 € | |
| 033 | Toode pole süsteemis | 143976-9 | – | – | – |
| 035 | Housing Set Assembly MAKITA 183E36-5 | 183E36-5 | Pole laos | 15.99 € | |
| 035-1 | Housing Set Assembly MAKITA 183E36-5 | 183E36-5 | Pole laos | 15.99 € | |
| 036 | Switch Plate Complete MAKITA 143954-9 | 143954-9 | Pole laos | 2.11 € | |
| 037 | Rear Cover MAKITA 457069-9 | 457069-9 | Pole laos | 2.67 € | |
| 038 | Tapping Screw PT 3 × 16 mm MAKITA 266429-2 | 266429-2 | Pole laos | 0.99 € | |
| 038-1 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 039 | Tapping Screw 2 × 6 mm MAKITA 266490-9 | 266490-9 | Pole laos | 0.99 € | |
| 039-1 | Tapping Screw 2 × 6 MAKITA 265C47-1 | 265C47-1 | Laos | 0.99 € | |
| 040 | Toode pole süsteemis | 652069-6 | – | – | – |
| 041 | Controller MAKITA 620564-4 | 620564-4 | Pole laos | 93.44 € | |
| 043 | Toode pole süsteemis | 857J31-8 | – | – | – |
