Makita DTD152Z varuosad
Makita DTD152Z varuosad
Makita DTD152Z varuosad

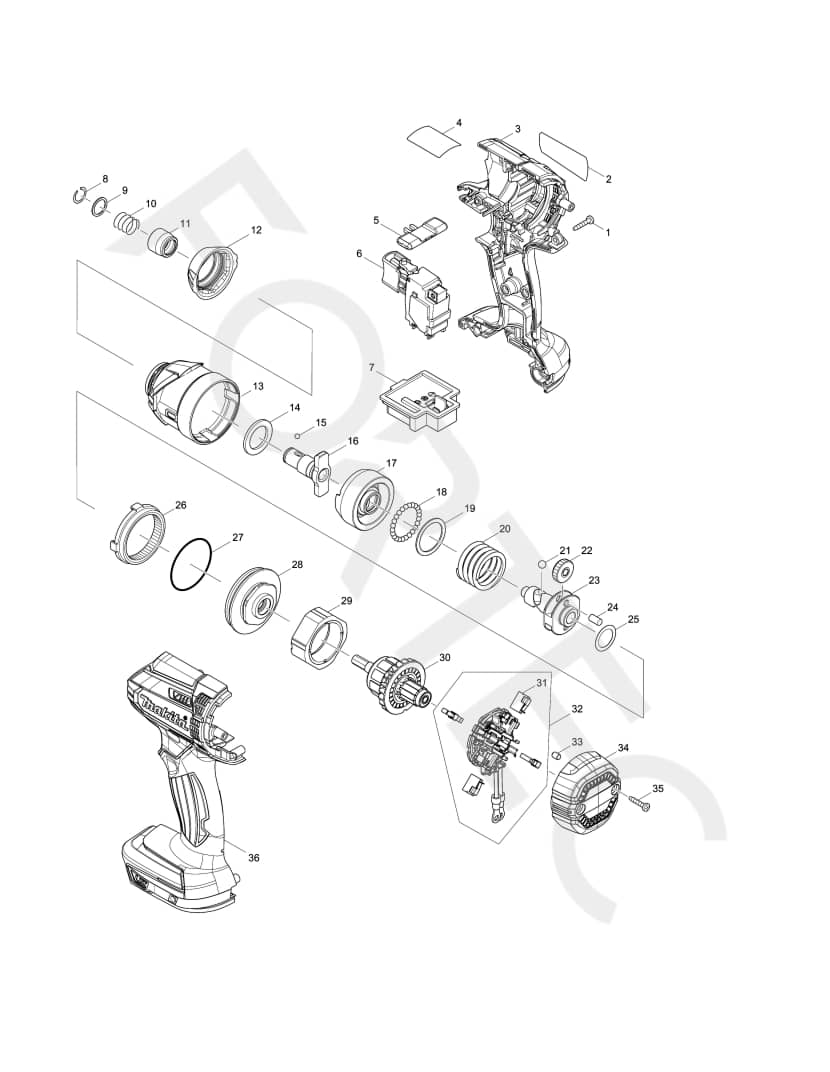

| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Tapping Screw PT 3 × 16 mm MAKITA 266429-2 | 266429-2 | Pole laos | 0.99 € | |
| 001-1 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 002 | Toode pole süsteemis | 851E29-7 | – | – | – |
| 003 | Housing Set MAKITA 183B63-4 | 183B63-4 | Pole laos | 9.82 € | |
| 005 | Toode pole süsteemis | 455053-8 | – | – | – |
| 006 | Switch Unit MAKITA 632F26-6 | 632F26-6 | Laos | 35.08 € | |
| 007 | Terminal MAKITA 643852-2 | 643852-2 | Pole laos | 4.21 € | |
| 008 | Ring Spring 11 MAKITA 231951-8 | 231951-8 | Laos | 0.99 € | |
| 009 | Flat Washer 12 MAKITA 267085-1 | 267085-1 | Laos | 0.99 € | |
| 010 | COMPRESSION SPRING 13, 6935FD | 233005-7 | Laos | 0.99 € | |
| 011 | Bit Sleeve MAKITA 326072-0 | 326072-0 | Laos | 2.81 € | |
| 012 | Bumper MAKITA 424738-7 | 424738-7 | Pole laos | 0.99 € | |
| 013 | Hammer Case Complete MAKITA 143299-5 | 143299-5 | Pole laos | 10.25 € | |
| 014 | Toode pole süsteemis | 261151-6 | – | – | – |
| 015 | Toode pole süsteemis | 216040-0 | – | – | – |
| 016 | Anvil N MAKITA 326565-7 | 326565-7 | Laos | 7.02 € | |
| 017 | Hammer MAKITA 326564-9 | 326564-9 | Pole laos | 8.85 € | |
| 018 | Toode pole süsteemis | 216040-0 | – | – | – |
| 019 | Toode pole süsteemis | 267175-0 | – | – | – |
| 020 | Compression Spring 25 MAKITA 234251-5 | 234251-5 | Pole laos | 2.81 € | |
| 021 | Toode pole süsteemis | 216041-8 | – | – | – |
| 022 | Toode pole süsteemis | 227362-3 | – | – | – |
| 023 | Spindle MAKITA 326562-3 | 326562-3 | Pole laos | 9.41 € | |
| 024 | Pin 5 MAKITA 256253-1 | 256253-1 | Pole laos | 0.99 € | |
| 025 | Thin Washer 15 MAKITA 253314-8 | 253314-8 | Pole laos | 1 € | |
| 026 | Internal Gear 51 MAKITA 227378-8 | 227378-8 | Pole laos | 1.54 € | |
| 027 | O-Ring 40 MAKITA 213507-9 | 213507-9 | Pole laos | 0.99 € | |
| 028 | Bearing Box Complete MAKITA 143298-7 | 143298-7 | Pole laos | 5.48 € | |
| 029 | Toode pole süsteemis | 638396-5 | – | – | – |
| 029-1 | Yoke Unit MAKITA 632F93-1 | 632F93-1 | Laos | 9.82 € | |
| 030 | Armature MAKITA 619377-8 | 619377-8 | Laos | 16.84 € | |
| 031 | Carbon Brush MAKITA 196854-2 | 196854-2 | Pole laos | 3.37 € | |
| 031-1 | Toode pole süsteemis | 196855-0 | – | – | – |
| 032 | Brush Holder Complete MAKITA 632F25-8 | 632F25-8 | Laos | 11.79 € | |
| 033 | Rubber Pin 4 MAKITA 263032-0 | 263032-0 | Pole laos | 0.99 € | |
| 034 | Rear Cover MAKITA 456044-2 | 456044-2 | Pole laos | 2.11 € | |
| 035 | Tapping Screw PT 3 × 16 mm MAKITA 266429-2 | 266429-2 | Pole laos | 0.99 € | |
| 035-1 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 036 | Housing Set MAKITA 183B63-4 | 183B63-4 | Pole laos | 9.82 € |
