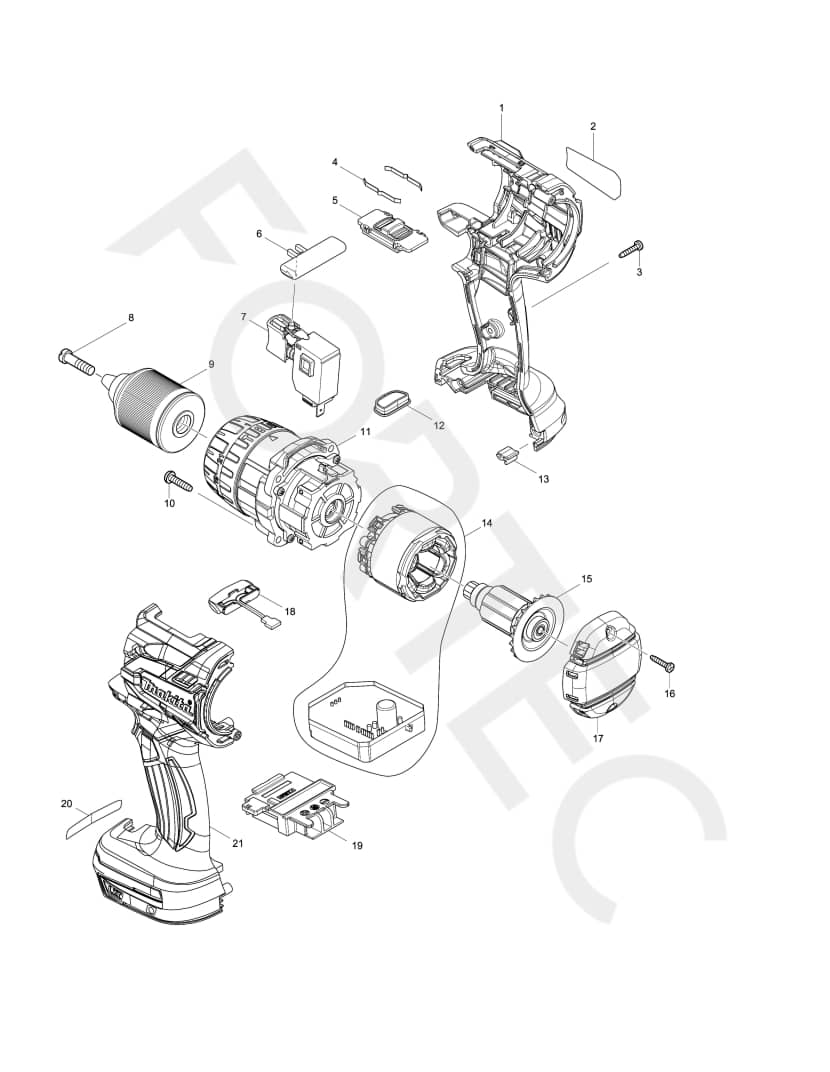

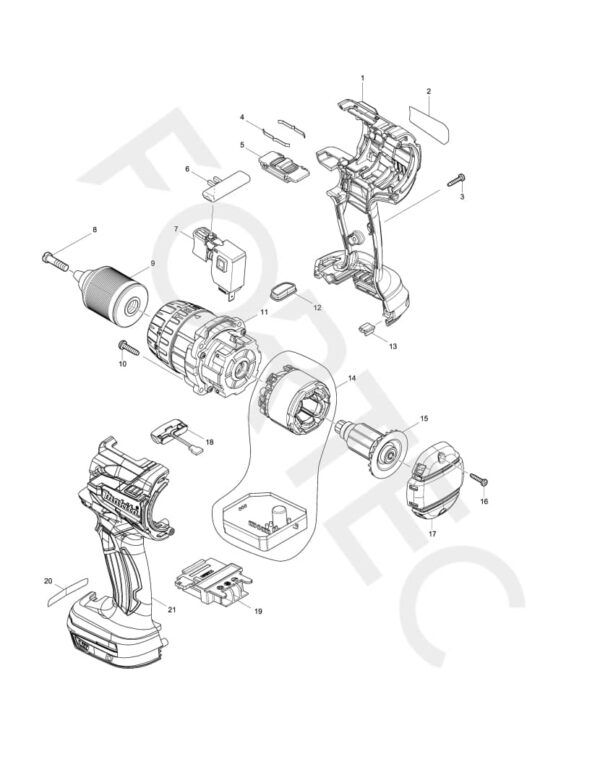

Makita DHP481Z varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Housing Set MAKITA 187921-4 | 187921-4 | Pole laos | 13.62 € | |
| 002 | Name Plate MAKITA 815S71-6 | 815S71-6 | Pole laos | 0.99 € | |
| 002-1 | Toode pole süsteemis | 857L10-8 | – | – | – |
| 003 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 004 | Leaf Spring MAKITA 232220-0 | 232220-0 | Pole laos | 0.99 € | |
| 005 | Speed Change Lever Assembly MAKITA 126411-2 | 126411-2 | Pole laos | 1 € | |
| 006 | Forward/Reverse Change Lever MAKITA 419250-0 | 419250-0 | Pole laos | 0.99 € | |
| 007 | Switch MAKITA 650710-5 | 650710-5 | Pole laos | 17.96 € | |
| 007-1 | Switch MAKITA 650006-4 | 650006-4 | Laos | 11.74 € | |
| 008 | Flat Head Screw M6 × 22 MAKITA 251468-5 | 251468-5 | Laos | 0.99 € | |
| 009 | Toode pole süsteemis | 766015-4 | – | – | – |
| 009-1 | Keyless Drill Chuck 13 MAKITA 763248-2 | 763248-2 | Pole laos | 29.46 € | |
| 009-2 | Drill Chuck S13 MAKITA 763252-1 | 763252-1 | Laos | 33.67 € | |
| 010 | Toode pole süsteemis | 265995-6 | – | – | – |
| 011 | Gear Assembly MAKITA 126410-4 | 126410-4 | Pole laos | 84.74 € | |
| 012 | Indicator Panel Complete MAKITA 142263-3 | 142263-3 | Pole laos | 0.99 € | |
| 013 | Toode pole süsteemis | 424517-3 | – | – | – |
| 014 | Stator Complete MAKITA 629116-8 | 629116-8 | Pole laos | 105.23 € | |
| 015 | Toode pole süsteemis | 619336-2 | – | – | – |
| 015-1 | Rotor MAKITA 619397-2 | 619397-2 | Pole laos | 40.69 € | |
| 016 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 017 | Rear Cover MAKITA 455011-4 | 455011-4 | Laos | 1.83 € | |
| 018 | LED Circuit MAKITA 620283-2 | 620283-2 | Pole laos | 11.22 € | |
| 019 | Terminal MAKITA 643899-6 | 643899-6 | Pole laos | 3.37 € | |
| 021 | Housing Set MAKITA 187921-4 | 187921-4 | Pole laos | 13.62 € | |
| 022 | Toode pole süsteemis | 857L11-6 | – | – | – |
