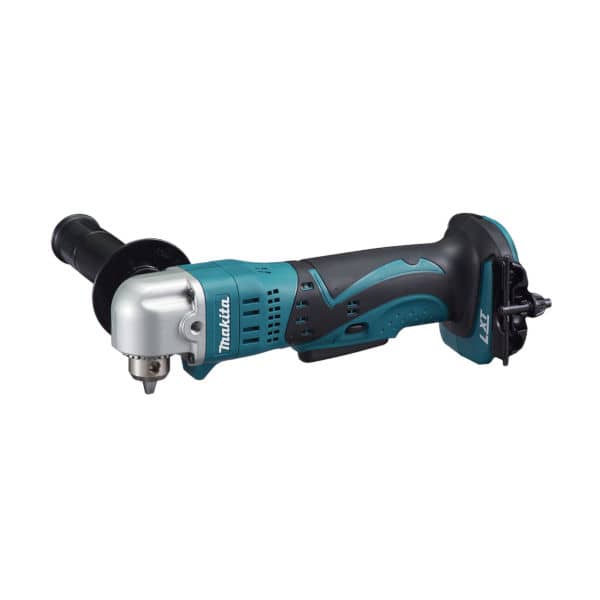

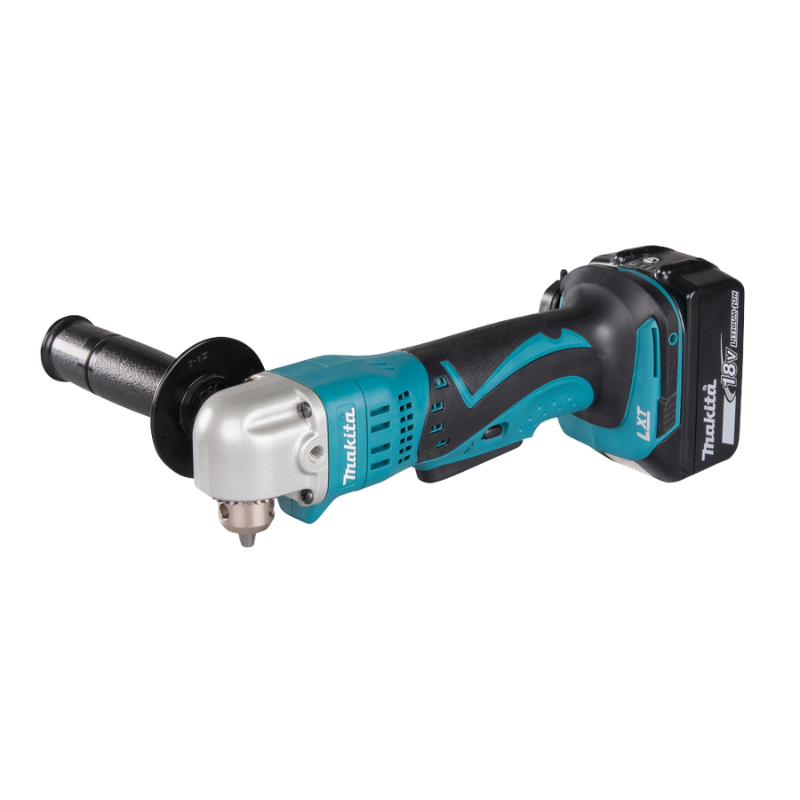

Makita DDA350Z varuosad

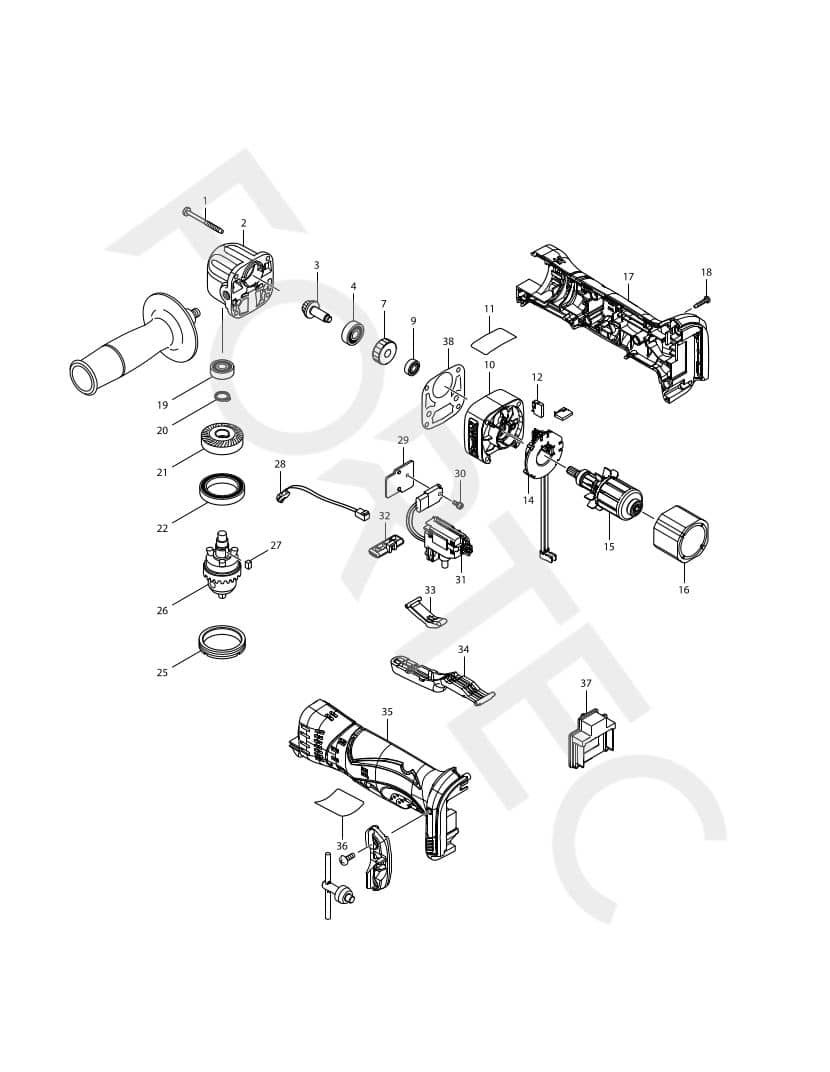

| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Toode pole süsteemis | 266069-6 | – | – | – |
| 002 | Gear Housing MAKITA 317635-3 | 317635-3 | Pole laos | 33.67 € | |
| 003 | Spiral Bevel Gear 9 MAKITA 227436-0 | 227436-0 | Pole laos | 14.03 € | |
| 004 | Ball Bearing 608ZZ MAKITA 210029-0 | 210029-0 | Pole laos | 1.12 € | |
| 007 | Spur Gear 29 MAKITA 227230-0 | 227230-0 | Pole laos | 11.22 € | |
| 009 | Ball Bearing 696 ZZ MAKITA 210033-9 | 210033-9 | Pole laos | 1.12 € | |
| 010 | Gear Housing Cover MAKITA 450607-6 | 450607-6 | Pole laos | 8.42 € | |
| 012 | Toode pole süsteemis | 194427-5 | – | – | – |
| 012-1 | Carbon Brush CB-440 MAKITA 195021-6 | 195021-6 | Laos | 4 € | |
| 014 | Toode pole süsteemis | 539202-6 | – | – | – |
| 015 | Armature MAKITA 619234-0 | 619234-0 | Pole laos | 44.9 € | |
| 015-1 | Armature MAKITA 619234-0 | 619234-0 | Pole laos | 44.9 € | |
| 016 | Yoke Unit MAKITA 638613-3 | 638613-3 | Pole laos | 16.84 € | |
| 017 | Housing Set MAKITA 187130-5 | 187130-5 | Pole laos | 35.92 € | |
| 017-1 | Housing Set MAKITA 187129-0 | 187129-0 | Pole laos | 35.92 € | |
| 017-2 | Housing Set MAKITA 187129-0 | 187129-0 | Pole laos | 35.92 € | |
| 018 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 019 | Ball Bearing 608ZZ MAKITA 210029-0 | 210029-0 | Pole laos | 1.12 € | |
| 020 | Retaining Ring S-12 MAKITA 961052-5 | 961052-5 | Pole laos | 0.99 € | |
| 021 | Spiral Bevel Gear 26 MAKITA 227536-6 | 227536-6 | Pole laos | 16.84 € | |
| 022 | Ball Bearing 6806DDW MAKITA 211423-9 | 211423-9 | Pole laos | 5.61 € | |
| 025 | Bearing Retainer 36 MAKITA 285842-5 | 285842-5 | Pole laos | 4.21 € | |
| 026 | Toode pole süsteemis | 763174-5 | – | – | – |
| 027 | Key 4 MAKITA 254201-4 | 254201-4 | Pole laos | 0.99 € | |
| 028 | LED Circuit MAKITA 631814-2 | 631814-2 | Pole laos | 11.22 € | |
| 029 | Heat Sink MAKITA 689098-6 | 689098-6 | Pole laos | 1.68 € | |
| 030 | Pan Head Screw M3 × 8 MAKITA 911006-2 | 911006-2 | Pole laos | 0.99 € | |
| 031 | Switch Unit MAKITA 632B90-3 | 632B90-3 | Pole laos | 50.09 € | |
| 032 | Forward Reverse Change Lever MAKITA 450610-7 | 450610-7 | Pole laos | 1.68 € | |
| 033 | Link MAKITA 450609-2 | 450609-2 | Pole laos | 1.4 € | |
| 034 | Switch Lever MAKITA 450608-4 | 450608-4 | Pole laos | 2.81 € | |
| 035 | Housing Set MAKITA 187130-5 | 187130-5 | Pole laos | 35.92 € | |
| 035-1 | Housing Set MAKITA 187129-0 | 187129-0 | Pole laos | 35.92 € | |
| 035-2 | Housing Set MAKITA 187129-0 | 187129-0 | Pole laos | 35.92 € | |
| 036 | Toode pole süsteemis | 815P22-1 | – | – | – |
| 037 | Terminal MAKITA 644808-8 | 644808-8 | Laos | 4.21 € | |
| 037-1 | Terminal MAKITA 644809-6 | 644809-6 | Laos | 3.79 € | |
| 038 | Gasket MAKITA 418036-9 | 418036-9 | Pole laos | 2.81 € |
