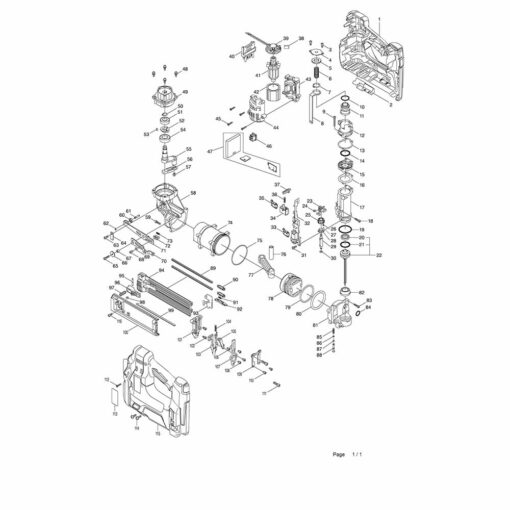

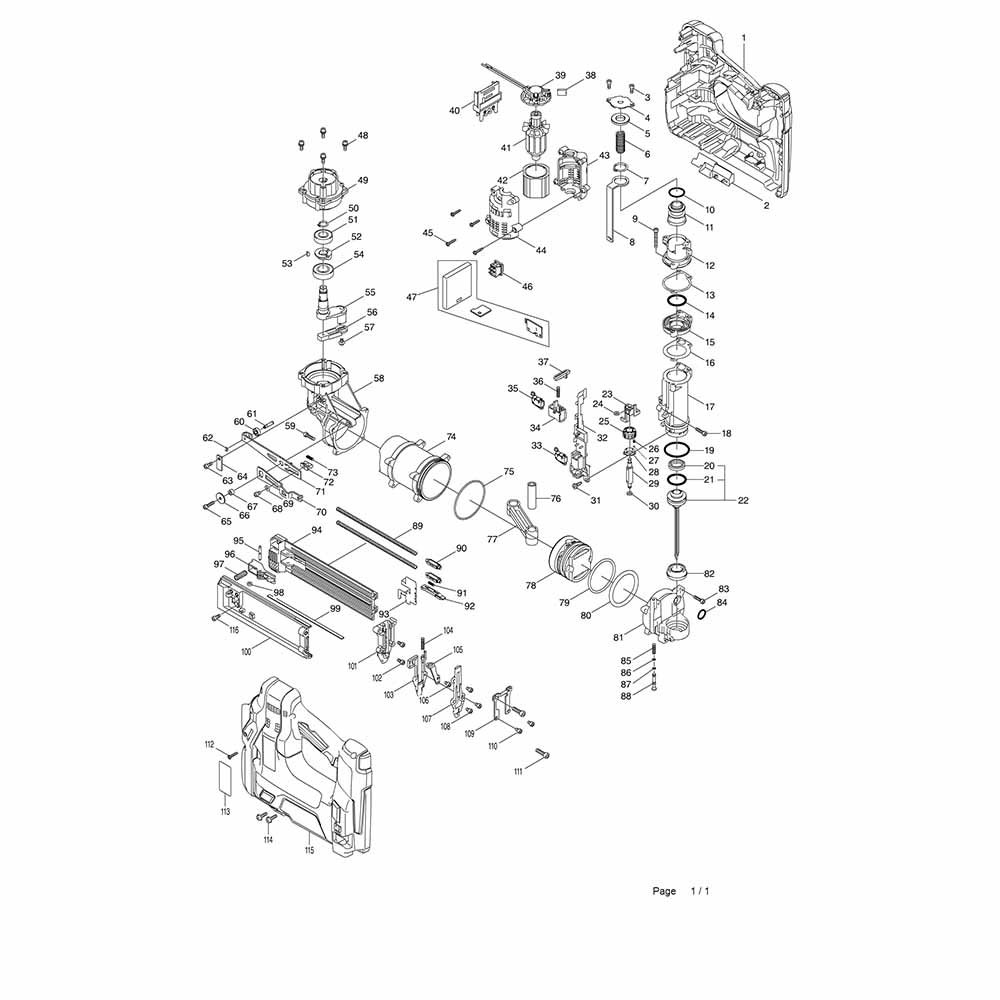

Makita DBN500 varuosad
Makita DBN500 varuosad
Makita DBN500 varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Housing Set MAKITA 187864-0 | 187864-0 | Pole laos | 45.04 € | |
| 002 | LED Cover MAKITA 454946-6 | 454946-6 | Pole laos | 1.83 € | |
| 003 | Hex Socket Head Bolt M4 × 10 MAKITA 922112-8 | 922112-8 | Pole laos | 0.99 € | |
| 004 | Top Cap MAKITA 346773-4 | 346773-4 | Pole laos | 1.00 € | |
| 005 | Rear Cushion MAKITA 424625-0 | 424625-0 | Pole laos | 1.00 € | |
| 006 | Toode pole süsteemis | 234327-8 | – | – | – |
| 006-1 | Compression Spring 11 MAKITA 234393-5 | 234393-5 | Pole laos | 0.99 € | |
| 007 | Retaining Ring External S-19 MAKITA 961059-1 | 961059-1 | Pole laos | 0.99 € | |
| 008 | Link Arm B MAKITA 346776-8 | 346776-8 | Pole laos | 4.07 € | |
| 009 | Hex Socket Head Bolt M4 MAKITA 922157-6 | 922157-6 | Pole laos | 0.99 € | |
| 010 | O-Ring 21 MAKITA 213381-5 | 213381-5 | Pole laos | 1.00 € | |
| 011 | Valve MAKITA 326398-0 | 326398-0 | Pole laos | 10.10 € | |
| 012 | Cylinder Head MAKITA 319114-7 | 319114-7 | Pole laos | 7.30 € | |
| 013 | Gasket A MAKITA 423472-6 | 423472-6 | Pole laos | 2.11 € | |
| 014 | O-Ring 24 MAKITA 213364-5 | 213364-5 | Pole laos | 0.99 € | |
| 015 | Separator MAKITA 319116-3 | 319116-3 | Pole laos | 5.61 € | |
| 016 | Gasket B MAKITA 423473-4 | 423473-4 | Pole laos | 2.11 € | |
| 017 | Driver Cylinder MAKITA 319113-9 | 319113-9 | Pole laos | 14.31 € | |
| 018 | Hex Socket Head Bolt M4 MAKITA 922127-5 | 922127-5 | Pole laos | 0.99 € | |
| 019 | O-Ring 34 MAKITA 213475-6 | 213475-6 | Pole laos | 0.99 € | |
| 020 | Cushion P MAKITA 421551-4 | 421551-4 | Pole laos | 5.61 € | |
| 021 | O-Ring 24 MAKITA 213364-5 | 213364-5 | Pole laos | 0.99 € | |
| 022 | Driver Assembly MAKITA 135644-8 | 135644-8 | Pole laos | 61.73 € | |
| 023 | Adjuster Block MAKITA 310585-1 | 310585-1 | Pole laos | 28.90 € | |
| 024 | Toode pole süsteemis | 262130-7 | – | – | – |
| 025 | Adjuster MAKITA 454949-0 | 454949-0 | Pole laos | 3.37 € | |
| 026 | Compression Spring 2 MAKITA 234254-9 | 234254-9 | Pole laos | 1.26 € | |
| 027 | Toode pole süsteemis | 216031-1 | – | – | – |
| 028 | Adjuster Guide MAKITA 453807-7 | 453807-7 | Pole laos | 2.95 € | |
| 029 | Adjuster Rod MAKITA 326399-8 | 326399-8 | Pole laos | 2.53 € | |
| 030 | Toode pole süsteemis | 262130-7 | – | – | – |
| 031 | Tapping Screw CT 4 × 12 MAKITA 266026-4 | 266026-4 | Pole laos | 0.99 € | |
| 032 | Switch Base MAKITA 454938-5 | 454938-5 | Pole laos | 2.95 € | |
| 033 | Switch Unit MAKITA 632C01-4 | 632C01-4 | Pole laos | 12.21 € | |
| 034 | Trigger MAKITA 454939-3 | 454939-3 | Pole laos | 1.68 € | |
| 035 | Switch Unit MAKITA 632C01-4 | 632C01-4 | Pole laos | 12.21 € | |
| 036 | Compression Spring 5 MAKITA 234037-7 | 234037-7 | Pole laos | 0.99 € | |
| 036-1 | Compression Spring 5 MAKITA 231372-4 | 231372-4 | Pole laos | 0.99 € | |
| 037 | Trigger Lock MAKITA 454952-1 | 454952-1 | Pole laos | 1.68 € | |
| 038 | Toode pole süsteemis | 194427-5 | – | – | – |
| 038-1 | Carbon Brush CB-440 MAKITA 195021-6 | 195021-6 | Laos | 4.00 € | |
| 039 | Brush Holder Complete MAKITA 632B92-9 | 632B92-9 | Pole laos | 2.81 € | |
| 040 | Toode pole süsteemis | 643860-3 | – | – | – |
| 041 | Armature MAKITA 619339-6 | 619339-6 | Pole laos | 30.45 € | |
| 042 | Yoke Unit MAKITA 638989-8 | 638989-8 | Pole laos | 19.64 € | |
| 043 | Motor Housing Set MAKITA 187809-8 | 187809-8 | Pole laos | 4.64 € | |
| 044 | Motor Housing Set MAKITA 187809-8 | 187809-8 | Pole laos | 4.64 € | |
| 045 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 046 | Toode pole süsteemis | 651533-4 | – | – | – |
| 047 | Controller MAKITA 620291-3 | 620291-3 | Pole laos | 119.26 € | |
| 048 | Hex Socket Head Bolt M4 × 12 MAKITA 266273-7 | 266273-7 | Pole laos | 0.99 € | |
| 049 | Gear Assembly MAKITA 126398-8 | 126398-8 | Pole laos | 55.71 € | |
| 050 | Retaining Ring S-12 MAKITA 961052-5 | 961052-5 | Pole laos | 0.99 € | |
| 051 | Ball Bearing 6001 ZZ MAKITA 210107-6 | 210107-6 | Pole laos | 1.40 € | |
| 052 | Edge Cam Right MAKITA 313276-3 | 313276-3 | Pole laos | 4.49 € | |
| 052-1 | Toode pole süsteemis | 313346-8 | – | – | – |
| 053 | Woodruff Key 3 MAKITA 254031-3 | 254031-3 | Pole laos | 0.99 € | |
| 054 | Toode pole süsteemis | 211243-1 | – | – | – |
| 055 | Crank MAKITA 332100-1 | 332100-1 | Pole laos | 15.71 € | |
| 055-1 | Toode pole süsteemis | 327749-0 | – | – | – |
| 056 | Magnet Base Complete MAKITA 142440-7 | 142440-7 | Pole laos | 6.32 € | |
| 057 | Pan Head Screw M4 × 8 MAKITA 911109-2 | 911109-2 | Pole laos | 0.99 € | |
| 058 | Crank Case MAKITA 319112-1 | 319112-1 | Pole laos | 30.30 € | |
| 059 | Hex Socket Head Bolt M4 MAKITA 922127-5 | 922127-5 | Pole laos | 0.99 € | |
| 060 | Ball Bearing 604 ZZ MAKITA 210036-3 | 210036-3 | Laos | 2.81 € | |
| 060-1 | Toode pole süsteemis | 211495-4 | – | – | – |
| 061 | Pin 4 MAKITA 256553-9 | 256553-9 | Pole laos | 0.99 € | |
| 062 | Stop Ring E-3 MAKITA 961017-7 | 961017-7 | Pole laos | 0.99 € | |
| 063 | Hex Socket Head Bolt M4 × 10 MAKITA 922112-8 | 922112-8 | Pole laos | 0.99 € | |
| 064 | Plate B MAKITA 346778-4 | 346778-4 | Pole laos | 0.99 € | |
| 065 | Hex Socket Head Bolt M4 MAKITA 922127-5 | 922127-5 | Pole laos | 0.99 € | |
| 066 | Flat Washer 4 MAKITA 267071-2 | 267071-2 | Pole laos | 0.99 € | |
| 067 | Sleeve 8 MAKITA 257822-1 | 257822-1 | Pole laos | 1.68 € | |
| 068 | Hex Socket Head Bolt M4 MAKITA 922102-1 | 922102-1 | Laos | 0.99 € | |
| 068-1 | Toode pole süsteemis | 922109-7 | – | – | – |
| 069 | Flat Washer MAKITA 941051-3 | 941051-3 | Pole laos | 0.99 € | |
| 070 | Sub Arm Complete MAKITA 142442-3 | 142442-3 | Pole laos | 8.14 € | |
| 071 | Link Arm A MAKITA 346775-0 | 346775-0 | Pole laos | 7.58 € | |
| 072 | Slider MAKITA 310587-7 | 310587-7 | Pole laos | 7.44 € | |
| 073 | Compression Spring 3 MAKITA 234119-5 | 234119-5 | Pole laos | 0.99 € | |
| 074 | Main Cylinder MAKITA 332099-0 | 332099-0 | Pole laos | 64.26 € | |
| 075 | O-Ring 63 MAKITA 213709-7 | 213709-7 | Pole laos | 1.12 € | |
| 076 | Pipe 12 MAKITA 332101-9 | 332101-9 | Pole laos | 3.51 € | |
| 077 | Connecting Rod MAKITA 454937-7 | 454937-7 | Pole laos | 1.96 € | |
| 078 | Piston A MAKITA 454944-0 | 454944-0 | Pole laos | 4.21 € | |
| 079 | O-Ring 50 MAKITA 213605-9 | 213605-9 | Pole laos | 1.00 € | |
| 080 | O-Ring 50 MAKITA 213609-1 | 213609-1 | Pole laos | 3.23 € | |
| 081 | Cylinder End MAKITA 319115-5 | 319115-5 | Pole laos | 14.59 € | |
| 081-1 | Toode pole süsteemis | 312A55-2 | – | – | – |
| 082 | Cushion MAKITA 424624-2 | 424624-2 | Pole laos | 6.45 € | |
| 083 | Hex Socket Head Bolt M4 MAKITA 922127-5 | 922127-5 | Pole laos | 0.99 € | |
| 084 | O-Ring 14 MAKITA 213162-7 | 213162-7 | Pole laos | 1.00 € | |
| 084-1 | Toode pole süsteemis | 213238-0 | – | – | – |
| 085 | Compression Spring 4 MAKITA 234329-4 | 234329-4 | Pole laos | 0.99 € | |
| 086 | O-Ring 3 MAKITA 213044-3 | 213044-3 | Pole laos | 0.99 € | |
| 087 | O-Ring 3 MAKITA 213044-3 | 213044-3 | Pole laos | 0.99 € | |
| 088 | Valve Stem MAKITA 326401-7 | 326401-7 | Pole laos | 4.36 € | |
| 089 | Compression Spring 6 MAKITA 234325-2 | 234325-2 | Pole laos | 2.24 € | |
| 090 | Sleeve MAKITA 454940-8 | 454940-8 | Pole laos | 1.40 € | |
| 091 | Compression Spring 3 MAKITA 234326-0 | 234326-0 | Pole laos | 1.00 € | |
| 092 | Stopper MAKITA 310584-3 | 310584-3 | Pole laos | 7.30 € | |
| 093 | Pusher MAKITA 346782-3 | 346782-3 | Pole laos | 5.05 € | |
| 094 | Slide Door MAKITA 454942-4 | 454942-4 | Pole laos | 10.38 € | |
| 095 | Pin 3 MAKITA 256793-9 | 256793-9 | Pole laos | 0.99 € | |
| 096 | Lock Lever MAKITA 454945-8 | 454945-8 | Pole laos | 2.53 € | |
| 097 | Compression Spring 7 MAKITA 233197-2 | 233197-2 | Pole laos | 0.99 € | |
| 098 | Urethane Ring 3 MAKITA 262054-7 | 262054-7 | Pole laos | 0.99 € | |
| 099 | Nail Plate MAKITA 346774-2 | 346774-2 | Pole laos | 0.99 € | |
| 100 | Magazine MAKITA 454943-2 | 454943-2 | Pole laos | 13.19 € | |
| 101 | Set Plate MAKITA 310588-5 | 310588-5 | Pole laos | 68.89 € | |
| 102 | Toode pole süsteemis | 265911-8 | – | – | – |
| 103 | Center Plate Complete MAKITA 142443-1 | 142443-1 | Laos | 32.27 € | |
| 104 | Compression Spring 4 MAKITA 234328-6 | 234328-6 | Pole laos | 0.99 € | |
| 105 | Arm MAKITA 346779-2 | 346779-2 | Pole laos | 0.99 € | |
| 106 | Hex Socket Head Bolt M4 MAKITA 922102-1 | 922102-1 | Laos | 0.99 € | |
| 107 | Driver Guide MAKITA 310586-9 | 310586-9 | Laos | 42.09 € | |
| 108 | Hex Socket Head Bolt M4 MAKITA 922102-1 | 922102-1 | Laos | 0.99 € | |
| 109 | Plate A MAKITA 346777-6 | 346777-6 | Pole laos | 1.12 € | |
| 110 | Hex Socket Head Bolt M4 MAKITA 922102-1 | 922102-1 | Laos | 0.99 € | |
| 111 | Nylok Screw 5 × 20 MAKITA 266369-4 | 266369-4 | Pole laos | 0.99 € | |
| 112 | Tapping Screw PT 3 × 16 MAKITA 266130-9 | 266130-9 | Laos | 0.99 € | |
| 113 | Toode pole süsteemis | 815P33-6 | – | – | – |
| 114 | Hex Bolt M4 × 12 MAKITA 911118-1 | 911118-1 | Pole laos | 0.99 € | |
| 115 | Housing Set MAKITA 187864-0 | 187864-0 | Pole laos | 45.04 € | |
| 116 | Hex Socket Head Bolt M4 × 10 MAKITA 922112-8 | 922112-8 | Pole laos | 0.99 € |
