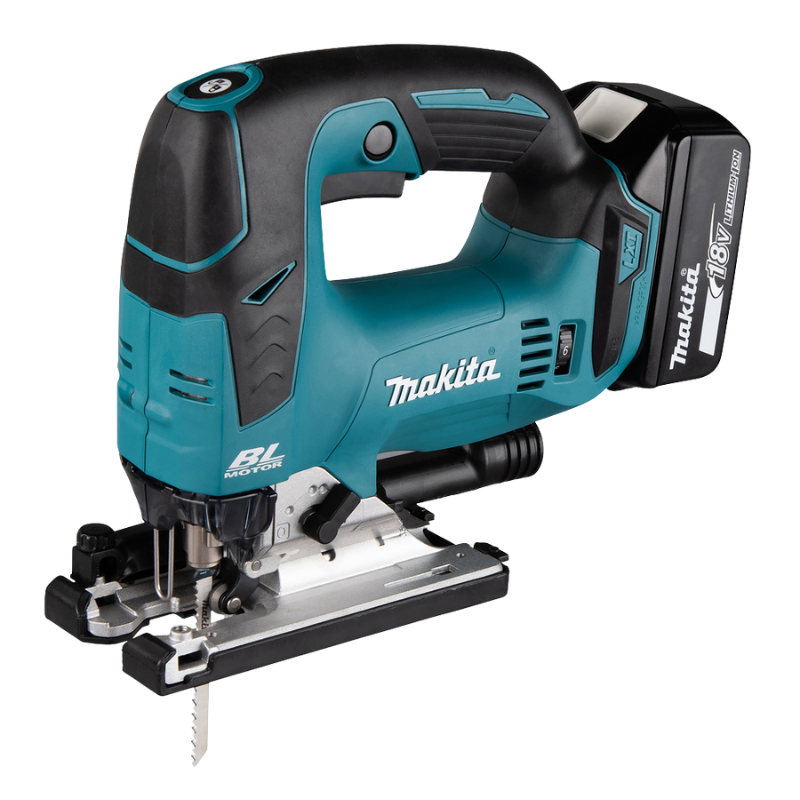

Makita DJV182Z varuosad
Makita DJV182Z varuosad
Makita DJV182Z varuosad
| Nr joonisel | Varuosa | SKU | Laos | Hind | Kogus |
|---|---|---|---|---|---|
| 001 | Housing Set MAKITA 187706-8 | 187706-8 | Pole laos | 27.36 € | |
| 001-1 | Toode pole süsteemis | 187705-0 | – | – | – |
| 002 | Toode pole süsteemis | 265995-6 | – | – | – |
| 003 | Toode pole süsteemis | 814V65-6 | – | – | – |
| 004 | Housing Set MAKITA 187706-8 | 187706-8 | Pole laos | 27.36 € | |
| 004-1 | Toode pole süsteemis | 187705-0 | – | – | – |
| 005 | Switch Plate Complete MAKITA 142303-7 | 142303-7 | Pole laos | 5.2 € | |
| 006 | Switch MAKITA 650251-1 | 650251-1 | Pole laos | 9.41 € | |
| 007 | Switch Unit Anti-Static MAKITA 632B56-3 | 632B56-3 | Pole laos | 25.25 € | |
| 007-1 | Switch Unit MAKITA 620N15-1 | 620N15-1 | Pole laos | 14.15 € | |
| 008 | Toode pole süsteemis | 266034-5 | – | – | – |
| 009 | Gear Housing Cover Complete MAKITA 142112-4 | 142112-4 | Pole laos | 15.02 € | |
| 010 | Safety Wire MAKITA 326302-9 | 326302-9 | Pole laos | 0.99 € | |
| 011 | Toode pole süsteemis | 911104-2 | – | – | – |
| 011-1 | Pan Head Screw M4 × 5 MAKITA 265132-2 | 265132-2 | Pole laos | 0.99 € | |
| 012 | Tool Opener MAKITA 454483-0 | 454483-0 | Pole laos | 1.68 € | |
| 013 | Pan Head Screw M4 MAKITA 265026-1 | 265026-1 | Pole laos | 0.99 € | |
| 014 | Torsion Spring MAKITA 231659-4 | 231659-4 | Pole laos | 0.99 € | |
| 015 | Linear Guide MAKITA 346687-7 | 346687-7 | Pole laos | 8.42 € | |
| 016 | Leaf Spring MAKITA 232207-2 | 232207-2 | Laos | 1.83 € | |
| 017 | Pan Head Screw M4 × 10 MAKITA 911111-5 | 911111-5 | Pole laos | 0.99 € | |
| 018 | Pin 4 MAKITA 256117-9 | 256117-9 | Pole laos | 0.99 € | |
| 019 | Plain Bearing 4 MAKITA 214031-5 | 214031-5 | Pole laos | 0.99 € | |
| 020 | Stop Ring E-3 MAKITA 961017-7 | 961017-7 | Pole laos | 0.99 € | |
| 021 | Toode pole süsteemis | 310548-7 | – | – | – |
| 021-1 | Slider MAKITA 310837-0 | 310837-0 | Pole laos | 11.22 € | |
| 022 | Pin 4 MAKITA 268090-1 | 268090-1 | Pole laos | 1.12 € | |
| 023 | Gasket MAKITA 442195-7 | 442195-7 | Pole laos | 1.96 € | |
| 024 | Cap Washer MAKITA 267854-0 | 267854-0 | Laos | 0.99 € | |
| 025 | Dust Seal 8 MAKITA 421815-6 | 421815-6 | Pole laos | 1 € | |
| 026 | Cap Washer MAKITA 267854-0 | 267854-0 | Laos | 0.99 € | |
| 027 | Dust Cover MAKITA 424569-4 | 424569-4 | Pole laos | 0.99 € | |
| 028 | Retaining Ring R-B MAKITA 962063-3 | 962063-3 | Pole laos | 0.99 € | |
| 029 | Rod MAKITA 165724-6 | 165724-6 | Pole laos | 16.14 € | |
| 030 | Ring 21 MAKITA 257347-5 | 257347-5 | Pole laos | 1.68 € | |
| 031 | Torsion Spring 10 MAKITA 233591-8 | 233591-8 | Pole laos | 0.99 € | |
| 032 | Compression Spring 4 MAKITA 233314-4 | 233314-4 | Pole laos | 0.99 € | |
| 033 | Lock Pin MAKITA 310485-5 | 310485-5 | Pole laos | 3.79 € | |
| 034 | Blade Holder MAKITA 310547-9 | 310547-9 | Pole laos | 9.54 € | |
| 035 | Pin 2 MAKITA 256528-8 | 256528-8 | Laos | 0.99 € | |
| 036 | Retaining Ring S-6 MAKITA 961002-0 | 961002-0 | Pole laos | 0.99 € | |
| 037 | Flat Washer 6 MAKITA 253715-0 | 253715-0 | Pole laos | 0.99 € | |
| 038 | Toode pole süsteemis | 212014-9 | – | – | – |
| 038-1 | Needle Bearing 407 MAKITA 212092-9 | 212092-9 | Pole laos | 2.9 € | |
| 039 | Gear Complete MAKITA 142109-3 | 142109-3 | Pole laos | 30.02 € | |
| 040 | Balance Plate MAKITA 313260-8 | 313260-8 | Pole laos | 10.53 € | |
| 041 | Push Plate MAKITA 346688-5 | 346688-5 | Pole laos | 1.68 € | |
| 042 | Flat Washer 6 MAKITA 253196-8 | 253196-8 | Pole laos | 1 € | |
| 043 | Seal Plate MAKITA 454484-8 | 454484-8 | Pole laos | 0.99 € | |
| 044 | Toode pole süsteemis | 272244-4 | – | – | – |
| 044-1 | Lever 17 MAKITA 272280-0 | 272280-0 | Pole laos | 1.26 € | |
| 045 | Compression Spring 3 MAKITA 233139-6 | 233139-6 | Pole laos | 0.99 € | |
| 046 | Cap 5 MAKITA 286032-3 | 286032-3 | Pole laos | 0.99 € | |
| 047 | Pin 4 MAKITA 268063-4 | 268063-4 | Pole laos | 0.99 € | |
| 048 | Gear Housing Complete MAKITA 142111-6 | 142111-6 | Pole laos | 18.1 € | |
| 049 | Stop Ring External E-5 MAKITA 961018-5 | 961018-5 | Pole laos | 0.99 € | |
| 050 | Ball Bearing 6000 DDW MAKITA 210059-1 | 210059-1 | Laos | 5.61 € | |
| 051 | Rotor Assembly MAKITA 519329-8 | 519329-8 | Pole laos | 70.71 € | |
| 051-1 | Toode pole süsteemis | 619821-5 | – | – | – |
| 052 | Toode pole süsteemis | 210022-4 | – | – | – |
| 053 | Tapping Screw 2 × 6 mm MAKITA 266490-9 | 266490-9 | Pole laos | 0.99 € | |
| 053-1 | Tapping Screw 2 × 6 MAKITA 265C47-1 | 265C47-1 | Laos | 0.99 € | |
| 053-2 | Tapping Screw 2 × 6 mm MAKITA 266490-9 | 266490-9 | Pole laos | 0.99 € | |
| 054 | Stator MAKITA 629998-8 | 629998-8 | Pole laos | 31.85 € | |
| 055 | Controller Anti-Static MAKITA 620248-4 | 620248-4 | Pole laos | 145.22 € | |
| 055-1 | Controller Anti-Static MAKITA 620B24-8 | 620B24-8 | Pole laos | 113.47 € | |
| 055-2 | Controller Anti-Static MAKITA 620B24-8 | 620B24-8 | Pole laos | 113.47 € | |
| 056 | Terminal MAKITA 643899-6 | 643899-6 | Pole laos | 3.37 € | |
| 056-1 | Terminal MAKITA 643874-2 | 643874-2 | Pole laos | 3.93 € | |
| 057 | Square Nut M5 MAKITA 252171-1 | 252171-1 | Pole laos | 0.99 € | |
| 058 | Retainer Complete MAKITA 142110-8 | 142110-8 | Pole laos | 11.22 € | |
| 059 | Base MAKITA 319016-7 | 319016-7 | Pole laos | 9.54 € | |
| 060 | Crank Plate MAKITA 345237-5 | 345237-5 | Pole laos | 0.99 € | |
| 061 | Hex Socket Head Bolt M5 × 20 MAKITA 922231-0 | 922231-0 | Pole laos | 0.99 € | |
| 062 | Leaf Spring MAKITA 232208-0 | 232208-0 | Pole laos | 0.99 € | |
| 063 | Base Plate MAKITA 346685-1 | 346685-1 | Pole laos | 2.53 € | |
| 064 | Head Screw M4 × 8 MAKITA 265085-5 | 265085-5 | Pole laos | 0.99 € | |
| 065 | Rod Assembly MAKITA 135602-4 | 135602-4 | Pole laos | 32.98 € |
